SDO HMI 2014-03-18 10:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.40 | 166.20 | 22.48 | 98.87 | -11.14 | 296.61 | 33.54 | 260.37 | 0.5510 | -149.3 | -49.3 | |
|
previous
or next observation for the same group /

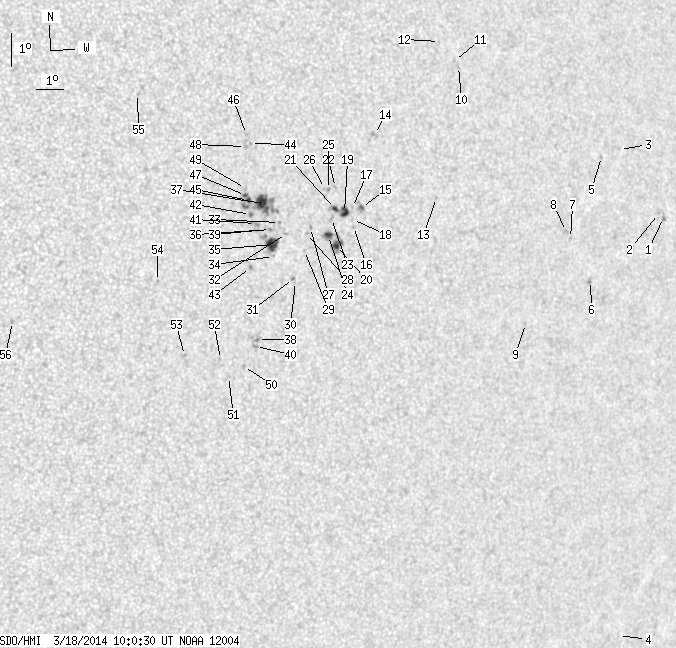

back to the solar disc SDO HMI 2014-03-18 10:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.44 | 0.00 | 1.75 | -9.83 | 309.98 | 46.90 | 263.16 | 0.7270 | 708.0 | 593.6 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -9.73 | 309.74 | 46.66 | 263.30 | 0.7242 | 565.0 | 558.4 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -7.98 | 307.77 | 44.69 | 265.82 | 0.7007 | 620.0 | 487.9 | |
| 0.00 | 1.04 | 0.00 | 0.80 | -22.47 | 311.93 | 48.86 | 246.38 | 0.7618 | -422.0 | -349.9 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -8.25 | 307.05 | 43.97 | 265.46 | 0.6916 | 637.0 | 455.3 | |
| 0.00 | 2.61 | 0.00 | 1.79 | -11.97 | 307.22 | 44.14 | 260.08 | 0.6940 | 650.0 | 528.4 | |
| 0.00 | 1.57 | 0.00 | 1.06 | -10.79 | 306.15 | 43.07 | 261.75 | 0.6802 | 550.0 | 405.6 | |
| 0.00 | 2.26 | 0.00 | 1.52 | -10.59 | 305.95 | 42.87 | 262.03 | 0.6776 | 794.0 | 631.3 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -13.46 | 304.80 | 41.73 | 257.67 | 0.6649 | 585.0 | 369.7 | |
| 0.00 | 1.57 | 0.00 | 0.98 | -6.03 | 301.09 | 38.01 | 269.30 | 0.6147 | 636.0 | 458.4 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -5.86 | 300.92 | 37.85 | 269.59 | 0.6126 | 677.0 | 541.6 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -5.33 | 300.32 | 37.24 | 270.53 | 0.6048 | 661.0 | 476.5 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -9.98 | 300.67 | 37.60 | 262.81 | 0.6079 | -666.0 | -561.0 | |
| 0.00 | 3.40 | 0.00 | 2.05 | -8.27 | 298.14 | 35.06 | 265.69 | 0.5723 | -847.0 | -690.1 | |
| 0.70 | 5.14 | 0.42 | 3.09 | -10.48 | 297.91 | 34.84 | 261.80 | 0.5697 | 698.8 | 621.5 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -11.06 | 297.69 | 34.62 | 260.75 | 0.5670 | 607.0 | 469.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -10.50 | 297.58 | 34.51 | 261.74 | 0.5650 | 587.0 | 525.8 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -10.86 | 297.63 | 34.55 | 261.11 | 0.5660 | 478.0 | 374.9 | |
| 4.96 | 13.58 | 2.97 | 8.10 | -10.67 | 297.31 | 34.23 | 261.41 | 0.5613 | 919.1 | 768.4 | |
| 2.79 | 13.76 | 1.66 | 8.21 | -11.67 | 297.15 | 34.07 | 259.60 | 0.5600 | 970.4 | 718.8 | |
| 1.92 | -19.00 | 1.14 | -19.00 | -10.57 | 296.97 | 33.89 | 261.55 | 0.5563 | 975.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -9.95 | 296.89 | 33.81 | 262.67 | 0.5548 | 795.0 | 657.5 | |
| 0.00 | 2.53 | 0.00 | 1.50 | -10.88 | 296.86 | 33.78 | 260.99 | 0.5550 | 597.0 | 522.6 | |
| 3.22 | 7.23 | 1.92 | 4.30 | -11.39 | 296.82 | 33.74 | 260.05 | 0.5549 | 873.9 | 644.4 | |
| 0.00 | 1.65 | 0.00 | 0.98 | -10.02 | 296.64 | 33.57 | 262.52 | 0.5513 | 921.0 | 798.2 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -10.00 | 296.50 | 33.42 | 262.54 | 0.5492 | 734.0 | 518.0 | |
| 0.00 | 1.48 | 0.00 | 0.87 | -11.20 | 296.13 | 33.06 | 260.32 | 0.5449 | 666.0 | 616.4 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -11.39 | 296.01 | 32.93 | 259.95 | 0.5434 | 165.0 | 171.5 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -11.90 | 296.01 | 32.93 | 259.01 | 0.5440 | -536.0 | -381.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -12.84 | 295.81 | 32.73 | 257.24 | 0.5427 | -540.0 | -468.6 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -12.76 | 295.73 | 32.65 | 257.38 | 0.5413 | -822.0 | -627.3 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -11.43 | 295.29 | 32.22 | 259.76 | 0.5331 | -392.0 | -233.0 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -11.12 | 295.00 | 31.93 | 260.30 | 0.5285 | -475.0 | -350.5 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -12.15 | 294.92 | 31.84 | 258.35 | 0.5287 | -397.0 | -295.3 | |
| 9.49 | 16.54 | 5.52 | 9.62 | -11.79 | 294.84 | 31.76 | 259.00 | 0.5270 | -866.1 | -530.4 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -11.35 | 294.71 | 31.63 | 259.82 | 0.5245 | -715.0 | -620.0 | |
| 12.54 | 30.74 | 7.25 | 17.80 | -10.59 | 294.33 | 31.26 | 261.22 | 0.5182 | -876.4 | -447.3 | |
| 0.00 | 3.13 | 0.00 | 1.83 | -14.66 | 294.71 | 31.63 | 253.57 | 0.5311 | -798.0 | -624.1 | |
| 0.00 | 2.35 | 0.00 | 1.36 | -11.41 | 294.22 | 31.14 | 259.62 | 0.5174 | -826.0 | -631.2 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -14.88 | 294.67 | 31.59 | 253.16 | 0.5311 | -839.0 | -684.3 | |
| 0.00 | 3.31 | 0.00 | 1.91 | -11.20 | 294.16 | 31.08 | 260.01 | 0.5162 | -809.0 | -668.9 | |
| 0.35 | 1.92 | 0.20 | 1.10 | -10.95 | 293.95 | 30.87 | 260.48 | 0.5129 | -959.8 | -807.2 | |
| 0.00 | 1.48 | 0.00 | 0.86 | -12.53 | 294.14 | 31.07 | 257.46 | 0.5181 | -663.0 | -423.1 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -8.83 | 293.73 | 30.65 | 264.62 | 0.5081 | -723.0 | -637.7 | |
| 1.65 | 9.93 | 0.95 | 5.71 | -10.53 | 293.83 | 30.75 | 261.27 | 0.5107 | -972.7 | -848.5 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -8.57 | 293.57 | 30.49 | 265.13 | 0.5056 | -715.0 | -553.5 | |
| 0.78 | -45.00 | 0.45 | -45.00 | -10.39 | 293.71 | 30.63 | 261.54 | 0.5087 | -880.7 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.00 | -8.93 | 293.56 | 30.49 | 264.41 | 0.5056 | -856.0 | -652.5 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -10.18 | 293.69 | 30.61 | 261.95 | 0.5082 | -401.0 | -415.8 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -15.50 | 294.34 | 31.26 | 251.88 | 0.5283 | -748.0 | -600.6 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -15.84 | 293.85 | 30.77 | 251.07 | 0.5225 | -730.0 | -607.7 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -15.34 | 293.48 | 30.40 | 251.85 | 0.5157 | -828.0 | -657.6 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -15.30 | 292.19 | 29.11 | 251.41 | 0.4971 | -650.0 | -518.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -13.13 | 290.95 | 27.87 | 255.32 | 0.4726 | -604.0 | -496.7 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -7.57 | 289.74 | 26.67 | 267.25 | 0.4473 | -87.0 | -117.3 | |
| 0.00 | 1.74 | 0.00 | 0.94 | -14.58 | 286.17 | 23.10 | 249.75 | 0.4064 | -854.0 | -671.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
