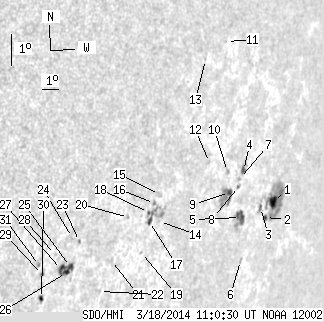

SDO HMI 2014-03-18 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.65 | 144.43 | 32.80 | 157.50 | -17.26 | 326.23 | 63.70 | 254.11 | 0.8899 | 96.4 | 65.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-18 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.70 | 52.76 | 8.24 | 64.87 | -16.56 | 329.81 | 67.28 | 254.99 | 0.9171 | 409.4 | 17.3 | |
| 1.31 | -1.00 | 1.59 | -1.00 | -17.08 | 329.54 | 67.01 | 254.41 | 0.9153 | 347.0 | 999999 | |
| 1.13 | -1.00 | 1.35 | -1.00 | -16.84 | 328.96 | 66.43 | 254.69 | 0.9114 | 602.8 | 999999 | |
| 1.92 | 4.70 | 2.14 | 5.24 | -15.90 | 327.07 | 64.54 | 255.73 | 0.8978 | 515.8 | 394.2 | |
| 6.53 | 13.41 | 7.45 | 15.28 | -17.28 | 327.73 | 65.20 | 254.19 | 0.9027 | 547.3 | 337.2 | |
| 0.00 | 1.74 | 0.00 | 2.05 | -18.52 | 328.62 | 66.09 | 252.83 | 0.9090 | 406.0 | 362.4 | |
| 0.00 | 1.39 | 0.00 | 1.55 | -16.16 | 326.94 | 64.41 | 255.44 | 0.8969 | 569.0 | 487.0 | |
| 0.00 | 1.39 | 0.00 | 1.55 | -16.40 | 327.01 | 64.48 | 255.17 | 0.8974 | 446.0 | 313.0 | |
| 2.26 | 19.42 | 2.48 | 21.13 | -16.64 | 326.51 | 63.98 | 254.90 | 0.8937 | 727.5 | 513.2 | |
| 0.00 | 1.39 | 0.00 | 1.50 | -16.04 | 326.01 | 63.48 | 255.56 | 0.8899 | 457.0 | 477.1 | |
| 0.00 | 0.52 | 0.00 | 0.53 | -12.27 | 324.11 | 61.58 | 259.87 | 0.8750 | 501.0 | 455.0 | |
| 0.00 | 0.61 | 0.00 | 0.63 | -15.91 | 324.70 | 62.17 | 255.71 | 0.8796 | 629.0 | 585.4 | |
| 0.00 | 0.52 | 0.00 | 0.51 | -12.93 | 323.04 | 60.51 | 259.13 | 0.8659 | -468.0 | -402.7 | |
| 0.00 | 0.35 | 0.00 | 0.34 | -17.96 | 322.57 | 60.04 | 253.30 | 0.8626 | 212.0 | 198.5 | |
| 0.00 | 3.48 | 0.00 | 3.34 | -17.16 | 322.14 | 59.61 | 254.20 | 0.8586 | -406.0 | -288.3 | |
| 0.00 | 1.65 | 0.00 | 1.58 | -17.46 | 321.99 | 59.46 | 253.85 | 0.8574 | -520.0 | -431.0 | |
| 1.83 | 16.37 | 1.75 | 15.75 | -18.02 | 321.98 | 59.45 | 253.20 | 0.8576 | -522.8 | -151.1 | |
| 0.44 | -17.00 | 0.41 | -17.00 | -17.76 | 321.78 | 59.25 | 253.49 | 0.8557 | -630.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.75 | -18.98 | 322.03 | 59.50 | 252.08 | 0.8584 | -270.0 | -236.0 | |
| 0.00 | 1.31 | 0.00 | 1.21 | -18.02 | 320.70 | 58.17 | 253.12 | 0.8465 | -483.0 | -431.5 | |
| 0.00 | 1.65 | 0.00 | 1.52 | -19.39 | 320.43 | 57.90 | 251.48 | 0.8448 | -108.0 | -222.6 | |
| 0.00 | 0.96 | 0.00 | 0.88 | -20.37 | 320.27 | 57.74 | 250.30 | 0.8441 | -200.0 | -196.3 | |
| 0.00 | 0.96 | 0.00 | 0.84 | -19.00 | 318.36 | 55.83 | 251.77 | 0.8258 | 348.0 | 350.7 | |
| 0.00 | 0.35 | 0.00 | 0.30 | -18.92 | 317.92 | 55.39 | 251.83 | 0.8216 | 430.0 | 490.5 | |
| 2.61 | 12.80 | 2.28 | 11.12 | -19.79 | 318.26 | 55.73 | 250.80 | 0.8255 | -526.3 | -614.2 | |
| 1.31 | -25.00 | 1.14 | -25.00 | -19.99 | 318.14 | 55.61 | 250.55 | 0.8246 | -677.7 | 999999 | |
| 3.13 | -25.00 | 2.71 | -25.00 | -19.93 | 317.82 | 55.29 | 250.59 | 0.8216 | -771.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.74 | -19.52 | 317.27 | 54.74 | 251.04 | 0.8160 | -387.0 | -361.7 | |
| 0.00 | 1.13 | 0.00 | 0.96 | -20.18 | 316.89 | 54.36 | 250.19 | 0.8131 | -586.0 | -535.5 | |
| 1.48 | 2.79 | 1.26 | 2.38 | -20.90 | 317.22 | 54.69 | 249.35 | 0.8169 | -579.9 | -444.8 | |
| 0.00 | 1.13 | 0.00 | 0.95 | -19.92 | 316.60 | 54.07 | 250.46 | 0.8100 | -610.0 | -535.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
