SDO HMI 2014-03-18 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.14 | 615.93 | 52.09 | 324.45 | 12.24 | 261.12 | -0.31 | 341.84 | 0.3411 | -740.0 | -362.4 | |
|
previous
or next observation for the same group /

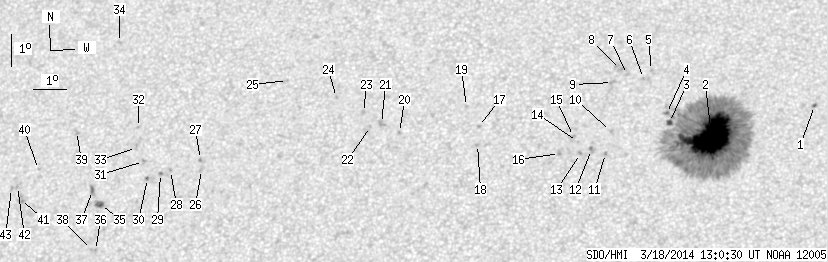

back to the solar disc SDO HMI 2014-03-18 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 1.74 | 0.28 | 0.92 | 13.24 | 265.88 | 4.45 | 347.72 | 0.3567 | 692.8 | 535.2 | |
| 95.40 | 537.85 | 50.09 | 282.37 | 12.24 | 262.71 | 1.28 | 356.22 | 0.3331 | -1449.9 | -459.7 | |
| 1.83 | -2.00 | 0.96 | -2.00 | 12.69 | 261.43 | 0.00 | 360.00 | 0.3397 | -827.8 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 12.97 | 261.34 | -0.09 | 0.26 | 0.3444 | -738.0 | -590.6 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 14.35 | 260.88 | -0.55 | 1.46 | 0.3670 | -697.0 | -575.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 14.09 | 260.63 | -0.80 | 2.14 | 0.3630 | -932.0 | -743.2 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 14.22 | 260.14 | -1.29 | 3.44 | 0.3655 | -836.0 | -601.8 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 14.38 | 259.93 | -1.51 | 3.98 | 0.3683 | -924.0 | -633.0 | |
| 0.00 | 2.87 | 0.00 | 1.53 | 13.97 | 259.68 | -1.75 | 4.72 | 0.3619 | -907.0 | -791.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.41 | 259.63 | -1.80 | 5.26 | 0.3365 | -823.0 | -728.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.71 | 259.48 | -1.95 | 5.91 | 0.3253 | -952.0 | -800.2 | |
| 0.00 | 2.96 | 0.00 | 1.55 | 11.84 | 259.05 | -2.38 | 7.14 | 0.3282 | -1084.0 | -866.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 11.72 | 258.72 | -2.71 | 8.19 | 0.3269 | -984.0 | -840.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.10 | 258.62 | -2.81 | 8.30 | 0.3333 | -805.0 | -588.0 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 12.26 | 258.50 | -2.93 | 8.59 | 0.3362 | -736.0 | -630.6 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 11.72 | 258.08 | -3.35 | 10.08 | 0.3286 | -849.0 | -690.5 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 12.61 | 255.58 | -5.85 | 16.47 | 0.3522 | -750.0 | -583.8 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 12.04 | 255.57 | -5.87 | 17.01 | 0.3433 | -704.0 | -588.7 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 13.25 | 255.20 | -6.23 | 16.95 | 0.3640 | -806.0 | -635.3 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 12.46 | 253.15 | -8.28 | 22.88 | 0.3632 | 885.0 | 702.6 | |
| 0.00 | 4.09 | 0.00 | 2.18 | 12.76 | 252.59 | -8.84 | 23.93 | 0.3713 | 935.0 | 785.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.67 | 252.25 | -9.18 | 24.84 | 0.3722 | 928.0 | 781.1 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 13.12 | 252.02 | -9.41 | 24.87 | 0.3804 | 919.0 | 671.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 13.61 | 251.16 | -10.28 | 26.25 | 0.3936 | 845.0 | 640.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 14.20 | 249.59 | -11.84 | 28.89 | 0.4134 | 786.0 | 553.8 | |
| 0.00 | 2.79 | 0.00 | 1.50 | 11.45 | 247.03 | -14.40 | 37.81 | 0.3993 | 705.0 | 622.5 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 11.77 | 246.99 | -14.45 | 37.41 | 0.4037 | 877.0 | 743.7 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 11.46 | 246.06 | -15.38 | 39.65 | 0.4090 | 672.0 | 552.9 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 11.37 | 245.75 | -15.69 | 40.35 | 0.4112 | 889.0 | 756.8 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 11.23 | 245.34 | -16.09 | 41.30 | 0.4136 | 784.0 | 758.6 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 11.77 | 245.18 | -16.25 | 40.71 | 0.4217 | 743.0 | 564.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 12.85 | 244.96 | -16.48 | 39.45 | 0.4370 | 840.0 | 718.2 | |
| 0.00 | 1.83 | 0.00 | 1.00 | 12.22 | 244.93 | -16.50 | 40.45 | 0.4297 | 640.0 | 517.3 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 15.61 | 244.13 | -17.30 | 36.98 | 0.4780 | 713.0 | 549.4 | |
| 1.39 | 5.40 | 0.76 | 2.94 | 10.47 | 243.89 | -17.54 | 45.04 | 0.4206 | 1030.4 | 861.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 9.04 | 243.81 | -17.62 | 47.71 | 0.4059 | 822.0 | 686.2 | |
| 0.00 | 4.18 | 0.00 | 2.29 | 10.92 | 243.61 | -17.82 | 44.74 | 0.4287 | 947.0 | 773.8 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 9.08 | 243.68 | -17.75 | 47.85 | 0.4078 | 843.0 | 675.8 | |
| 0.00 | 2.87 | 0.00 | 1.60 | 12.81 | 242.97 | -18.46 | 42.76 | 0.4568 | 712.0 | 576.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 11.66 | 241.83 | -19.61 | 46.28 | 0.4566 | -492.0 | -378.4 | |
| 0.00 | 4.96 | 0.00 | 2.75 | 10.74 | 241.31 | -20.12 | 48.54 | 0.4529 | 695.0 | 749.8 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 11.15 | 241.18 | -20.25 | 48.03 | 0.4586 | 758.0 | 653.4 | |
| 0.00 | 1.65 | 0.00 | 0.92 | 11.10 | 240.99 | -20.44 | 48.39 | 0.4602 | 682.0 | 569.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
