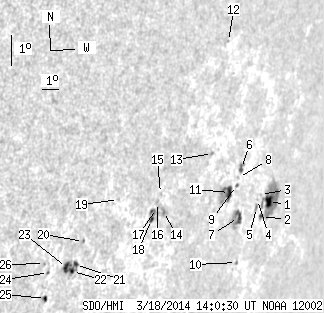

SDO HMI 2014-03-18 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.33 | 121.25 | 30.99 | 140.82 | -17.20 | 326.47 | 65.58 | 254.20 | 0.9037 | 163.5 | 55.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-18 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.44 | 42.39 | 8.45 | 55.83 | -16.57 | 329.75 | 68.86 | 254.95 | 0.9274 | 308.4 | -65.4 | |
| 1.13 | -1.00 | 1.47 | -1.00 | -17.06 | 329.52 | 68.64 | 254.42 | 0.9259 | 308.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.99 | -16.44 | 328.96 | 68.08 | 255.10 | 0.9224 | 456.0 | 438.4 | |
| 0.00 | 0.70 | 0.00 | 0.88 | -16.61 | 328.83 | 67.95 | 254.92 | 0.9215 | 508.0 | 464.4 | |
| 0.00 | 2.61 | 0.00 | 3.31 | -16.85 | 328.93 | 68.04 | 254.66 | 0.9221 | 677.0 | 575.5 | |
| 1.39 | 4.26 | 1.64 | 5.03 | -15.85 | 327.02 | 66.14 | 255.77 | 0.9094 | 527.5 | 372.1 | |
| 4.70 | 13.93 | 5.70 | 16.81 | -17.29 | 327.77 | 66.89 | 254.19 | 0.9145 | 476.6 | 360.6 | |
| 0.00 | 0.96 | 0.00 | 1.13 | -16.13 | 326.97 | 66.09 | 255.46 | 0.9090 | 497.0 | 425.5 | |
| 0.00 | 1.39 | 0.00 | 1.64 | -16.38 | 326.98 | 66.10 | 255.19 | 0.9091 | 193.0 | 218.9 | |
| 0.00 | 1.04 | 0.00 | 1.31 | -18.59 | 328.62 | 67.74 | 252.76 | 0.9201 | 409.0 | 389.6 | |
| 4.96 | 15.58 | 5.76 | 17.96 | -16.64 | 326.61 | 65.73 | 254.90 | 0.9065 | 619.8 | 532.9 | |
| 0.00 | 0.70 | 0.00 | 0.75 | -12.27 | 324.17 | 63.29 | 259.82 | 0.8887 | 430.0 | 417.6 | |
| 0.00 | 0.87 | 0.00 | 0.95 | -15.64 | 324.74 | 63.86 | 256.02 | 0.8928 | 567.0 | 553.2 | |
| 0.00 | 3.48 | 0.00 | 3.55 | -17.67 | 322.56 | 61.67 | 253.69 | 0.8759 | 398.0 | 298.4 | |
| 0.00 | 1.48 | 0.00 | 1.49 | -17.16 | 322.07 | 61.18 | 254.26 | 0.8718 | -234.0 | -214.5 | |
| 0.00 | 1.83 | 0.00 | 1.83 | -17.44 | 322.03 | 61.15 | 253.93 | 0.8716 | -467.0 | -388.5 | |
| 0.00 | 3.05 | 0.00 | 3.06 | -17.62 | 322.07 | 61.19 | 253.72 | 0.8719 | -362.0 | -244.7 | |
| 1.31 | 6.96 | 1.31 | 6.97 | -17.98 | 321.95 | 61.07 | 253.31 | 0.8711 | -482.5 | -459.4 | |
| 0.00 | 0.96 | 0.00 | 0.90 | -17.60 | 319.66 | 58.77 | 253.65 | 0.8516 | -445.0 | -336.0 | |
| 0.00 | 0.96 | 0.00 | 0.87 | -19.03 | 318.33 | 57.44 | 251.87 | 0.8405 | 442.0 | 411.3 | |
| 1.39 | 13.49 | 1.27 | 12.19 | -19.76 | 318.25 | 57.37 | 251.00 | 0.8404 | -416.4 | -488.0 | |
| 1.31 | -21.00 | 1.18 | -21.00 | -19.98 | 318.20 | 57.32 | 250.73 | 0.8401 | -552.5 | 999999 | |
| 3.39 | -21.00 | 3.05 | -21.00 | -19.90 | 317.80 | 56.92 | 250.79 | 0.8365 | -699.9 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.99 | -20.14 | 316.89 | 56.01 | 250.41 | 0.8284 | -547.0 | -481.5 | |
| 1.31 | 1.83 | 1.16 | 1.62 | -20.93 | 317.16 | 56.28 | 249.49 | 0.8316 | -526.4 | -500.3 | |
| 0.00 | 0.87 | 0.00 | 0.76 | -19.90 | 316.53 | 55.65 | 250.67 | 0.8249 | -492.0 | -459.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
