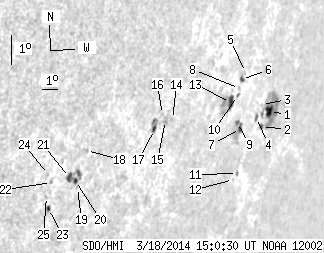

SDO HMI 2014-03-18 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.32 | 118.35 | 27.36 | 140.26 | -17.30 | 326.50 | 66.17 | 254.08 | 0.9077 | 156.2 | 68.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-18 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.66 | 41.16 | 7.58 | 55.39 | -16.56 | 329.80 | 69.47 | 254.94 | 0.9311 | 302.5 | -50.9 | |
| 1.13 | -1.00 | 1.50 | -1.00 | -17.06 | 329.49 | 69.15 | 254.41 | 0.9291 | 252.4 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.57 | -16.44 | 328.99 | 68.66 | 255.10 | 0.9261 | 397.0 | 375.2 | |
| 0.96 | 2.52 | 1.24 | 3.26 | -16.85 | 328.88 | 68.55 | 254.65 | 0.9254 | 566.5 | 492.6 | |
| 0.00 | 0.78 | 0.00 | 0.95 | -15.66 | 327.12 | 66.79 | 255.98 | 0.9139 | 351.0 | 265.3 | |
| 1.39 | 2.87 | 1.67 | 3.45 | -15.89 | 326.96 | 66.62 | 255.72 | 0.9127 | 473.8 | 368.1 | |
| 2.26 | 13.58 | 2.81 | 16.75 | -17.31 | 327.88 | 67.54 | 254.16 | 0.9188 | 403.0 | 331.5 | |
| 0.00 | 1.48 | 0.00 | 1.78 | -16.17 | 326.98 | 66.65 | 255.42 | 0.9129 | 462.0 | 366.5 | |
| 0.87 | -7.00 | 1.07 | -7.00 | -17.16 | 327.52 | 67.19 | 254.33 | 0.9165 | 603.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.26 | -16.38 | 326.97 | 66.64 | 255.18 | 0.9128 | 181.0 | 192.2 | |
| 0.00 | 1.48 | 0.00 | 1.89 | -18.62 | 328.68 | 68.35 | 252.73 | 0.9240 | 401.0 | 332.4 | |
| 0.00 | 0.78 | 0.00 | 1.00 | -18.83 | 328.51 | 68.18 | 252.51 | 0.9230 | 404.0 | 345.2 | |
| 4.53 | 19.06 | 5.37 | 22.41 | -16.64 | 326.60 | 66.26 | 254.90 | 0.9102 | 617.1 | 504.2 | |
| 0.00 | 1.31 | 0.00 | 1.37 | -17.57 | 322.95 | 62.62 | 253.83 | 0.8834 | 205.0 | 219.5 | |
| 0.00 | 3.05 | 0.00 | 3.15 | -17.64 | 322.52 | 62.19 | 253.73 | 0.8800 | 369.0 | 293.2 | |
| 0.00 | 0.87 | 0.00 | 0.89 | -17.49 | 322.23 | 61.89 | 253.90 | 0.8776 | -230.0 | -193.4 | |
| 1.65 | 6.44 | 1.68 | 6.54 | -17.98 | 321.98 | 61.65 | 253.33 | 0.8758 | -454.0 | -505.8 | |
| 0.00 | 2.44 | 0.00 | 2.24 | -19.01 | 318.29 | 57.96 | 251.93 | 0.8451 | 229.0 | 262.0 | |
| 0.00 | 0.87 | 0.00 | 0.80 | -20.16 | 318.40 | 58.07 | 250.59 | 0.8469 | -229.0 | -189.3 | |
| 1.39 | 12.97 | 1.28 | 11.89 | -19.96 | 318.17 | 57.84 | 250.80 | 0.8447 | -507.6 | -478.6 | |
| 2.52 | -20.00 | 2.30 | -20.00 | -19.91 | 317.78 | 57.45 | 250.83 | 0.8412 | -711.1 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.93 | -20.16 | 316.86 | 56.53 | 250.45 | 0.8332 | -588.0 | -509.4 | |
| 0.96 | 2.52 | 0.86 | 2.27 | -20.94 | 317.14 | 56.80 | 249.53 | 0.8363 | -503.9 | -425.6 | |
| 0.00 | 0.52 | 0.00 | 0.46 | -19.94 | 316.57 | 56.23 | 250.68 | 0.8303 | -616.0 | -588.7 | |
| 0.00 | 1.13 | 0.00 | 1.01 | -20.60 | 316.82 | 56.49 | 249.91 | 0.8332 | -651.0 | -479.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
