SDO HMI 2014-03-18 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.09 | 18.97 | 1.24 | 11.13 | 11.61 | 286.91 | 26.57 | 305.14 | 0.5381 | -294.4 | -366.8 | |
|
previous
or next observation for the same group /

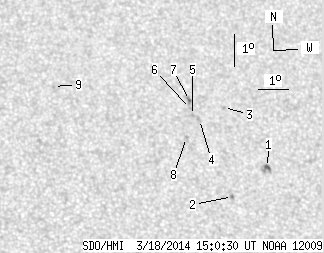

back to the solar disc SDO HMI 2014-03-18 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.57 | 6.09 | 0.93 | 3.61 | 10.70 | 288.65 | 28.32 | 301.96 | 0.5515 | -834.7 | -719.4 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 9.72 | 287.35 | 27.02 | 301.62 | 0.5280 | 891.0 | 658.9 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 12.51 | 287.33 | 27.00 | 306.01 | 0.5500 | -806.0 | -612.6 | |
| 0.00 | 2.35 | 0.00 | 1.38 | 12.08 | 286.46 | 26.13 | 306.26 | 0.5362 | -576.0 | -397.9 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 12.19 | 286.24 | 25.91 | 306.67 | 0.5345 | -939.0 | -760.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 12.41 | 286.19 | 25.86 | 307.05 | 0.5359 | -887.0 | -750.5 | |
| 0.52 | 3.05 | 0.31 | 1.79 | 12.66 | 286.19 | 25.85 | 307.44 | 0.5380 | -758.5 | -645.2 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 11.48 | 285.96 | 25.63 | 305.87 | 0.5252 | 661.0 | 549.6 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 12.88 | 281.66 | 21.33 | 313.21 | 0.4885 | 706.0 | 475.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
