SDO HMI 2014-03-18 17:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.62 | 629.25 | 49.27 | 331.81 | 12.25 | 261.03 | 1.80 | 341.73 | 0.3440 | -586.1 | -353.7 | |
|
previous
or next observation for the same group /

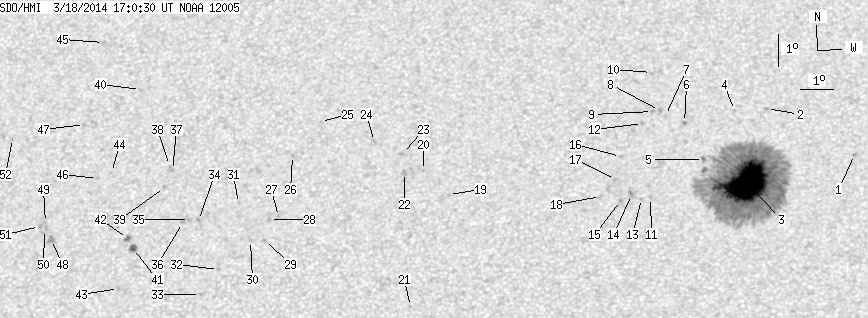

back to the solar disc SDO HMI 2014-03-18 17:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.74 | 13.17 | 266.02 | 6.79 | 341.57 | 0.3656 | 931.0 | 648.8 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 14.61 | 263.34 | 4.11 | 349.38 | 0.3774 | 788.0 | 545.8 | |
| 90.40 | 549.21 | 47.54 | 288.81 | 12.25 | 262.71 | 3.48 | 349.83 | 0.3376 | -1588.7 | -466.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 14.54 | 262.35 | 3.12 | 351.87 | 0.3737 | -646.0 | -523.6 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 12.97 | 261.37 | 2.14 | 353.93 | 0.3462 | -721.0 | -616.3 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 14.15 | 260.80 | 1.57 | 355.80 | 0.3646 | -993.0 | -904.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 14.37 | 260.22 | 0.99 | 357.39 | 0.3677 | -832.0 | -705.1 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 14.53 | 260.03 | 0.80 | 357.89 | 0.3702 | -913.0 | -813.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 14.50 | 259.82 | 0.59 | 358.45 | 0.3696 | -767.0 | -647.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 15.76 | 259.79 | 0.56 | 358.61 | 0.3899 | -619.0 | -479.4 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.76 | 259.75 | 0.52 | 358.43 | 0.3246 | -859.0 | -623.0 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 14.11 | 259.51 | 0.28 | 359.25 | 0.3632 | -817.0 | -682.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.73 | 259.47 | 0.24 | 359.26 | 0.3240 | -920.0 | -614.3 | |
| 0.00 | 2.70 | 0.00 | 1.41 | 11.86 | 259.17 | -0.06 | 0.19 | 0.3261 | -1031.0 | -840.5 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 11.67 | 258.83 | -0.40 | 1.21 | 0.3230 | -948.0 | -791.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 13.06 | 258.83 | -0.40 | 1.12 | 0.3460 | -732.0 | -577.5 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 12.33 | 258.68 | -0.55 | 1.61 | 0.3340 | -892.0 | -744.2 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 11.80 | 258.23 | -1.01 | 3.04 | 0.3255 | -795.0 | -524.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.90 | 253.58 | -5.65 | 16.52 | 0.3402 | 755.0 | 617.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.67 | 252.80 | -6.43 | 17.96 | 0.3561 | 884.0 | 694.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 8.42 | 252.49 | -6.74 | 23.55 | 0.2920 | 795.0 | 659.3 | |
| 0.00 | 3.05 | 0.00 | 1.61 | 12.62 | 252.21 | -7.02 | 19.52 | 0.3583 | 910.0 | 694.0 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 13.22 | 252.14 | -7.09 | 19.16 | 0.3680 | 934.0 | 592.4 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 13.62 | 251.26 | -7.97 | 20.93 | 0.3789 | 897.0 | 695.1 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 14.30 | 249.55 | -9.68 | 24.18 | 0.3995 | 694.0 | 572.2 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 13.23 | 248.73 | -10.51 | 27.21 | 0.3898 | 841.0 | 703.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 11.31 | 248.37 | -10.86 | 30.53 | 0.3654 | 762.0 | 679.6 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 11.22 | 248.09 | -11.14 | 31.29 | 0.3665 | 863.0 | 687.4 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 10.57 | 247.96 | -11.27 | 32.56 | 0.3586 | 920.0 | 767.7 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 10.58 | 247.53 | -11.70 | 33.53 | 0.3626 | 868.0 | 721.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 11.75 | 247.11 | -12.12 | 32.71 | 0.3822 | 837.0 | 669.9 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 9.70 | 246.57 | -12.66 | 37.09 | 0.3599 | 994.0 | 787.7 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 8.94 | 246.04 | -13.19 | 39.57 | 0.3555 | 971.0 | 760.2 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 11.26 | 245.88 | -13.35 | 36.03 | 0.3867 | 894.0 | 720.4 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 11.30 | 245.60 | -13.63 | 36.54 | 0.3899 | 797.0 | 624.2 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 11.21 | 245.38 | -13.85 | 37.11 | 0.3909 | 883.0 | 709.7 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 12.86 | 244.98 | -14.25 | 35.42 | 0.4159 | 887.0 | 721.9 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 13.02 | 244.88 | -14.36 | 35.39 | 0.4189 | 521.0 | 487.3 | |
| 0.00 | 2.00 | 0.00 | 1.09 | 12.33 | 244.76 | -14.47 | 36.61 | 0.4111 | 779.0 | 652.3 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 15.50 | 243.79 | -15.44 | 34.05 | 0.4602 | 628.0 | 518.7 | |
| 2.44 | 4.61 | 1.31 | 2.49 | 10.44 | 243.88 | -15.35 | 41.25 | 0.3965 | 1012.8 | 812.8 | |
| 0.78 | 2.78 | 0.42 | 1.51 | 10.76 | 243.68 | -15.56 | 41.09 | 0.4025 | 994.4 | 792.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 9.21 | 243.47 | -15.76 | 44.17 | 0.3865 | 823.0 | 626.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 12.87 | 243.04 | -16.19 | 38.93 | 0.4343 | 722.0 | 623.0 | |
| 0.00 | 1.65 | 0.00 | 0.94 | 17.07 | 242.46 | -16.77 | 34.31 | 0.4914 | 700.0 | 477.4 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 12.69 | 242.61 | -16.62 | 39.93 | 0.4366 | 444.0 | 391.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 14.43 | 242.07 | -17.16 | 38.33 | 0.4627 | 635.0 | 517.6 | |
| 0.00 | 4.79 | 0.00 | 2.62 | 10.83 | 241.26 | -17.97 | 45.13 | 0.4294 | 941.0 | 812.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 11.37 | 241.03 | -18.20 | 44.60 | 0.4379 | 841.0 | 672.7 | |
| 0.00 | 4.09 | 0.00 | 2.25 | 11.15 | 241.02 | -18.21 | 44.99 | 0.4357 | 658.0 | 621.8 | |
| 0.00 | 1.83 | 0.00 | 1.01 | 11.25 | 240.85 | -18.38 | 45.08 | 0.4386 | 697.0 | 626.2 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 14.08 | 239.76 | -19.47 | 42.38 | 0.4816 | 602.0 | 442.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
