SDO HMI 2014-03-18 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.61 | 81.20 | 22.22 | 106.58 | -17.16 | 326.93 | 68.80 | 254.24 | 0.9251 | 165.8 | -4.1 | |
|
previous
or next observation for the same group /

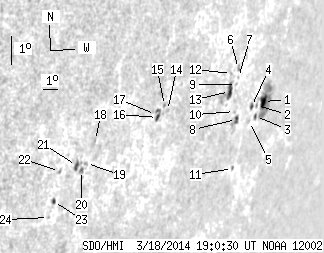

back to the solar disc SDO HMI 2014-03-18 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.48 | 31.24 | 8.10 | 46.48 | -16.54 | 329.74 | 71.61 | 254.92 | 0.9436 | 244.5 | -110.1 | |
| 0.00 | 1.39 | 0.00 | 2.01 | -16.72 | 329.21 | 71.08 | 254.74 | 0.9406 | 396.0 | 388.6 | |
| 0.87 | 1.83 | 1.26 | 2.65 | -17.04 | 329.40 | 71.27 | 254.39 | 0.9416 | 226.3 | 162.6 | |
| 1.04 | 2.61 | 1.48 | 3.69 | -16.80 | 328.80 | 70.67 | 254.67 | 0.9382 | 502.8 | 460.1 | |
| 0.00 | 0.78 | 0.00 | 1.12 | -17.24 | 329.00 | 70.87 | 254.19 | 0.9393 | 273.0 | 279.6 | |
| 0.00 | 2.00 | 0.00 | 2.61 | -15.84 | 326.86 | 68.73 | 255.74 | 0.9266 | 552.0 | 420.4 | |
| 0.00 | 0.87 | 0.00 | 1.14 | -16.10 | 327.05 | 68.92 | 255.46 | 0.9278 | 321.0 | 265.6 | |
| 1.91 | 4.70 | 2.60 | 6.35 | -17.31 | 327.84 | 69.71 | 254.14 | 0.9325 | 391.5 | 344.7 | |
| 0.00 | 0.96 | 0.00 | 1.26 | -16.32 | 327.04 | 68.91 | 255.22 | 0.9277 | 188.0 | 161.5 | |
| 0.00 | 1.13 | 0.00 | 1.51 | -17.10 | 327.48 | 69.36 | 254.37 | 0.9304 | 516.0 | 472.3 | |
| 0.00 | 1.22 | 0.00 | 1.72 | -18.74 | 328.76 | 70.63 | 252.59 | 0.9378 | 412.0 | 321.0 | |
| 0.00 | 0.52 | 0.00 | 0.67 | -16.05 | 326.40 | 68.28 | 255.53 | 0.9237 | 581.0 | 490.0 | |
| 4.87 | 11.40 | 6.29 | 14.63 | -16.58 | 326.63 | 68.50 | 254.95 | 0.9251 | 521.2 | 476.9 | |
| 0.00 | 1.13 | 0.00 | 1.25 | -17.63 | 322.48 | 64.35 | 253.80 | 0.8965 | 279.0 | 230.3 | |
| 0.00 | 1.13 | 0.00 | 1.24 | -17.51 | 322.18 | 64.05 | 253.93 | 0.8943 | -274.0 | -249.9 | |
| 1.22 | 4.79 | 1.33 | 5.21 | -17.91 | 321.94 | 63.81 | 253.48 | 0.8925 | -413.0 | -478.5 | |
| 0.00 | 0.61 | 0.00 | 0.66 | -17.83 | 321.75 | 63.62 | 253.56 | 0.8911 | -545.0 | -523.1 | |
| 0.00 | 0.52 | 0.00 | 0.51 | -18.99 | 318.42 | 60.30 | 252.11 | 0.8651 | 252.0 | 277.5 | |
| 0.00 | 1.48 | 0.00 | 1.45 | -19.73 | 318.30 | 60.17 | 251.25 | 0.8644 | -306.0 | -252.4 | |
| 0.44 | 2.44 | 0.42 | 2.37 | -19.96 | 318.13 | 60.00 | 250.97 | 0.8631 | -522.2 | -406.9 | |
| 0.00 | 3.83 | 0.00 | 3.69 | -19.85 | 317.74 | 59.61 | 251.07 | 0.8598 | -708.0 | -558.2 | |
| 0.00 | 1.57 | 0.00 | 1.47 | -20.13 | 316.85 | 58.72 | 250.68 | 0.8524 | -540.0 | -456.3 | |
| 0.78 | 2.18 | 0.74 | 2.06 | -21.05 | 317.05 | 58.92 | 249.62 | 0.8548 | -612.9 | -463.7 | |
| 0.00 | 0.87 | 0.00 | 0.83 | -21.55 | 317.06 | 58.93 | 249.03 | 0.8552 | -457.0 | -408.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
