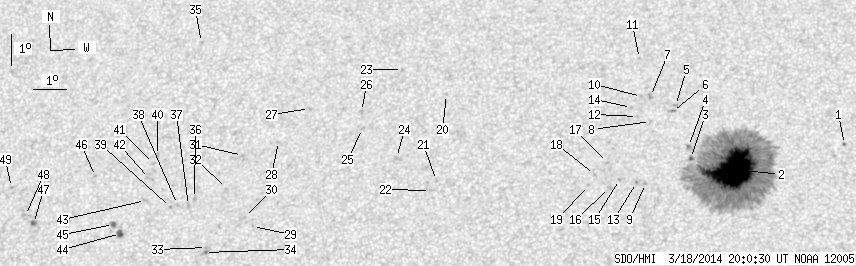

SDO HMI 2014-03-18 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.72 | 615.69 | 55.78 | 325.02 | 12.27 | 261.18 | 3.61 | 345.06 | 0.3473 | -733.4 | -362.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-18 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.74 | 13.09 | 266.12 | 8.55 | 337.16 | 0.3746 | 563.0 | 508.6 | |
| 100.50 | 538.95 | 52.98 | 284.04 | 12.25 | 262.68 | 5.11 | 345.26 | 0.3435 | -1536.5 | -452.3 | |
| 0.87 | -2.00 | 0.46 | -2.00 | 12.59 | 261.37 | 3.80 | 349.13 | 0.3441 | -782.6 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.43 | 12.97 | 261.32 | 3.74 | 349.49 | 0.3501 | -742.0 | -636.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 14.27 | 260.94 | 3.36 | 351.13 | 0.3701 | -660.0 | -561.7 | |
| 0.00 | 3.05 | 0.00 | 1.62 | 14.08 | 260.84 | 3.27 | 351.29 | 0.3668 | -651.0 | -565.0 | |
| 0.00 | 2.70 | 0.00 | 1.44 | 14.56 | 260.17 | 2.60 | 353.22 | 0.3730 | -937.0 | -730.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.76 | 260.16 | 2.59 | 352.98 | 0.3600 | -723.0 | -589.2 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 11.79 | 259.99 | 2.41 | 352.75 | 0.3275 | -921.0 | -691.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 14.56 | 259.89 | 2.32 | 353.94 | 0.3725 | -704.0 | -620.4 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 15.78 | 259.85 | 2.27 | 354.40 | 0.3922 | -565.0 | -441.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.92 | 259.76 | 2.19 | 354.10 | 0.3619 | -725.0 | -572.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.82 | 259.71 | 2.14 | 353.58 | 0.3275 | -953.0 | -842.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.20 | 259.58 | 2.01 | 354.66 | 0.3663 | -726.0 | -585.5 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 11.91 | 259.19 | 1.62 | 355.15 | 0.3282 | -1032.0 | -843.0 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 11.66 | 258.89 | 1.31 | 356.01 | 0.3236 | -873.0 | -741.8 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 12.45 | 258.83 | 1.26 | 356.34 | 0.3366 | -984.0 | -744.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 12.07 | 258.43 | 0.86 | 357.45 | 0.3300 | -723.0 | -577.1 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.72 | 258.25 | 0.67 | 357.96 | 0.3241 | -737.0 | -632.4 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 14.64 | 253.88 | -3.70 | 9.57 | 0.3768 | -698.0 | -558.9 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.90 | 253.61 | -3.96 | 11.75 | 0.3336 | 846.0 | 713.3 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 11.59 | 253.43 | -4.14 | 12.47 | 0.3292 | 780.0 | 583.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.46 | 252.50 | -5.07 | 12.55 | 0.3941 | -707.0 | -564.7 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 12.65 | 252.38 | -5.20 | 14.69 | 0.3501 | 925.0 | 805.1 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.58 | 251.31 | -6.27 | 16.76 | 0.3696 | 851.0 | 636.8 | |
| 0.00 | 2.44 | 0.00 | 1.30 | 14.13 | 251.26 | -6.31 | 16.45 | 0.3782 | 759.0 | 589.3 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 14.25 | 249.65 | -7.93 | 20.23 | 0.3883 | 772.0 | 650.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 13.22 | 248.72 | -8.85 | 23.44 | 0.3783 | 565.0 | 534.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 10.55 | 248.01 | -9.57 | 28.47 | 0.3443 | 867.0 | 741.1 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 10.84 | 247.75 | -9.82 | 28.70 | 0.3505 | 835.0 | 710.3 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 12.80 | 247.62 | -9.96 | 26.49 | 0.3797 | 680.0 | 571.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 11.76 | 247.16 | -10.41 | 28.85 | 0.3683 | 795.0 | 553.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 9.93 | 246.61 | -10.97 | 32.83 | 0.3472 | 879.0 | 728.3 | |
| 0.00 | 2.35 | 0.00 | 1.24 | 9.77 | 246.55 | -11.02 | 33.21 | 0.3456 | 1064.0 | 896.7 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 16.46 | 246.15 | -11.42 | 25.55 | 0.4422 | 699.0 | 578.5 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 11.47 | 246.18 | -11.39 | 31.50 | 0.3722 | 773.0 | 491.1 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 11.26 | 246.00 | -11.57 | 32.21 | 0.3708 | 943.0 | 615.0 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 11.30 | 245.66 | -11.92 | 32.91 | 0.3743 | 737.0 | 649.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 11.21 | 245.45 | -12.13 | 33.51 | 0.3750 | 875.0 | 704.2 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 12.87 | 244.96 | -12.61 | 32.17 | 0.4015 | 789.0 | 609.3 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 12.62 | 244.85 | -12.72 | 32.74 | 0.3991 | 694.0 | 573.8 | |
| 0.00 | 2.96 | 0.00 | 1.59 | 12.15 | 244.75 | -12.83 | 33.62 | 0.3937 | 731.0 | 593.1 | |
| 0.00 | 2.87 | 0.00 | 1.54 | 11.45 | 244.66 | -12.92 | 34.82 | 0.3854 | 795.0 | 468.1 | |
| 2.35 | 4.26 | 1.26 | 2.28 | 10.44 | 243.92 | -13.65 | 37.94 | 0.3793 | 1044.8 | 788.0 | |
| 0.96 | 2.78 | 0.51 | 1.49 | 10.73 | 243.69 | -13.89 | 37.93 | 0.3852 | 962.9 | 747.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 12.26 | 243.05 | -14.53 | 36.81 | 0.4109 | 794.0 | 692.7 | |
| 1.04 | 2.96 | 0.57 | 1.61 | 10.85 | 241.17 | -16.41 | 42.47 | 0.4127 | 1047.3 | 854.1 | |
| 0.00 | 3.31 | 0.00 | 1.80 | 11.11 | 240.90 | -16.68 | 42.51 | 0.4186 | 601.0 | 635.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 12.01 | 240.40 | -17.18 | 41.91 | 0.4344 | 681.0 | 592.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
