SDO HMI 2014-03-18 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.14 | 180.28 | 41.64 | 114.55 | -10.95 | 295.99 | 38.97 | 261.25 | 0.6261 | -195.9 | -56.5 | |
|
previous
or next observation for the same group /

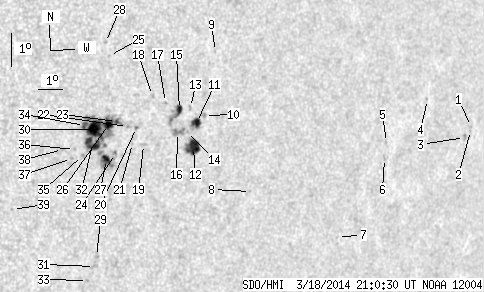

back to the solar disc SDO HMI 2014-03-18 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.42 | -9.40 | 310.02 | 53.00 | 263.57 | 0.7951 | 505.0 | 432.5 | |
| 0.00 | 0.87 | 0.00 | 0.71 | -9.52 | 310.00 | 52.97 | 263.42 | 0.7948 | 591.0 | 476.8 | |
| 0.00 | 2.09 | 0.00 | 1.69 | -9.76 | 309.75 | 52.72 | 263.13 | 0.7922 | 522.0 | 531.3 | |
| 0.00 | 0.52 | 0.00 | 0.40 | -8.81 | 307.74 | 50.71 | 264.42 | 0.7708 | 503.0 | 406.5 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -10.25 | 306.09 | 49.06 | 262.56 | 0.7520 | 564.0 | 523.8 | |
| 0.00 | 1.39 | 0.00 | 1.04 | -10.74 | 306.10 | 49.07 | 261.92 | 0.7521 | 672.0 | 535.4 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -13.26 | 304.53 | 47.51 | 258.46 | 0.7349 | 541.0 | 416.3 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -12.22 | 300.48 | 43.46 | 259.68 | 0.6856 | -445.0 | -365.8 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -8.18 | 298.38 | 41.36 | 265.67 | 0.6582 | -716.0 | -639.3 | |
| 0.00 | 2.78 | 0.00 | 1.82 | -10.12 | 298.21 | 41.18 | 262.72 | 0.6558 | 578.0 | 464.1 | |
| 5.48 | 9.92 | 3.57 | 6.46 | -10.35 | 297.92 | 40.90 | 262.35 | 0.6521 | 720.1 | 590.9 | |
| 13.40 | 17.75 | 8.73 | 11.57 | -11.10 | 297.92 | 40.90 | 261.20 | 0.6525 | 804.5 | 572.0 | |
| 0.00 | 1.91 | 0.00 | 1.24 | -9.92 | 297.62 | 40.59 | 263.01 | 0.6480 | 632.0 | 494.6 | |
| 0.00 | 2.09 | 0.00 | 1.35 | -10.65 | 297.57 | 40.54 | 261.88 | 0.6476 | 611.0 | 647.1 | |
| 3.92 | 13.23 | 2.52 | 8.51 | -10.02 | 297.19 | 40.17 | 262.85 | 0.6425 | 888.2 | 695.5 | |
| 0.00 | 7.66 | 0.00 | 4.94 | -10.70 | 297.22 | 40.19 | 261.78 | 0.6430 | 684.0 | 676.2 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -9.85 | 296.61 | 39.59 | 263.10 | 0.6348 | 460.0 | 434.9 | |
| 0.00 | 1.74 | 0.00 | 1.10 | -9.68 | 296.08 | 39.05 | 263.35 | 0.6276 | 814.0 | 682.8 | |
| 0.00 | 2.00 | 0.00 | 1.27 | -11.16 | 295.95 | 38.92 | 260.98 | 0.6264 | 213.0 | 182.2 | |
| 0.00 | 1.65 | 0.00 | 1.04 | -10.68 | 295.60 | 38.57 | 261.73 | 0.6214 | -514.0 | -372.4 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -11.17 | 295.52 | 38.49 | 260.94 | 0.6206 | -542.0 | -440.5 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -10.67 | 295.25 | 38.22 | 261.72 | 0.6167 | -450.0 | -420.1 | |
| 1.22 | 78.32 | 0.76 | 48.49 | -10.56 | 294.81 | 37.78 | 261.89 | 0.6106 | -389.9 | -455.3 | |
| 0.00 | 1.57 | 0.00 | 0.98 | -11.51 | 294.91 | 37.89 | 260.33 | 0.6127 | -540.0 | -430.5 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -8.61 | 294.29 | 37.26 | 265.08 | 0.6031 | -592.0 | -444.2 | |
| 5.40 | -23.00 | 3.35 | -23.00 | -10.67 | 294.51 | 37.49 | 261.68 | 0.6067 | -711.8 | 999999 | |
| 5.22 | 15.40 | 3.25 | 9.59 | -11.71 | 294.60 | 37.57 | 259.96 | 0.6086 | -845.5 | -530.7 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -8.24 | 294.09 | 37.07 | 265.71 | 0.6005 | -513.0 | -370.4 | |
| 0.00 | 2.09 | 0.00 | 1.31 | -14.63 | 294.73 | 37.71 | 255.22 | 0.6143 | -702.0 | -490.0 | |
| 18.36 | -23.00 | 11.35 | -23.00 | -10.85 | 294.04 | 37.02 | 261.34 | 0.6004 | -925.0 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.80 | -14.94 | 294.71 | 37.69 | 254.72 | 0.6147 | -709.0 | -608.5 | |
| 10.79 | -23.00 | 6.67 | -23.00 | -11.31 | 294.00 | 36.97 | 260.58 | 0.6001 | -916.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -15.38 | 294.53 | 37.51 | 253.97 | 0.6131 | -666.0 | -609.3 | |
| 2.35 | -23.00 | 1.44 | -23.00 | -10.76 | 293.61 | 36.59 | 261.46 | 0.5944 | -1048.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -11.66 | 293.67 | 36.64 | 259.95 | 0.5959 | -759.0 | -655.0 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -11.50 | 293.34 | 36.32 | 260.18 | 0.5912 | -697.0 | -585.5 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -11.78 | 293.27 | 36.24 | 259.71 | 0.5905 | -762.0 | -671.4 | |
| 0.00 | 1.74 | 0.00 | 1.06 | -11.54 | 292.89 | 35.87 | 260.08 | 0.5850 | -826.0 | -680.1 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -13.45 | 291.32 | 34.29 | 256.49 | 0.5657 | -772.0 | -641.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
