SDO HMI 2014-03-18 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.20 | 615.25 | 54.47 | 325.09 | 12.25 | 260.96 | 3.94 | 341.21 | 0.3497 | -625.4 | -341.0 | |
|
previous
or next observation for the same group /

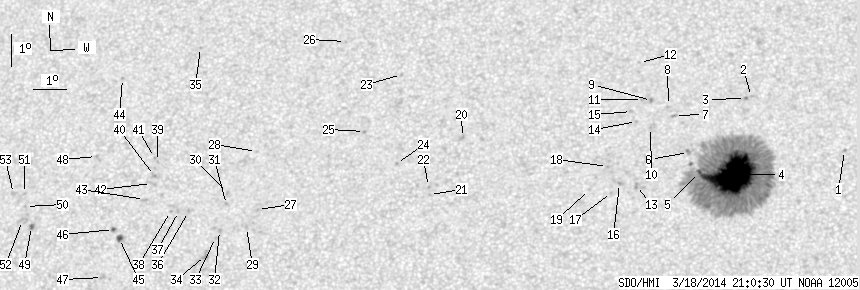

back to the solar disc SDO HMI 2014-03-18 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.07 | 266.13 | 9.11 | 335.80 | 0.3779 | 742.0 | 579.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.75 | 263.31 | 6.28 | 344.09 | 0.3878 | 582.0 | 445.1 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 14.68 | 263.12 | 6.09 | 344.50 | 0.3860 | 659.0 | 580.6 | |
| 98.94 | 534.64 | 52.20 | 282.03 | 12.26 | 262.69 | 5.66 | 343.75 | 0.3460 | -1508.1 | -449.7 | |
| 0.87 | -4.00 | 0.46 | -4.00 | 12.31 | 261.64 | 4.62 | 346.66 | 0.3425 | -770.2 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.33 | 12.94 | 261.32 | 4.29 | 347.96 | 0.3515 | -756.0 | -613.1 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 14.12 | 260.91 | 3.89 | 349.70 | 0.3690 | -945.0 | -661.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.44 | 260.73 | 3.71 | 350.31 | 0.3736 | -395.0 | -378.9 | |
| 0.00 | 1.83 | 0.00 | 0.98 | 14.59 | 260.21 | 3.18 | 351.72 | 0.3748 | -944.0 | -804.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 13.73 | 260.16 | 3.14 | 351.48 | 0.3608 | -802.0 | -657.7 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 14.62 | 259.93 | 2.91 | 352.44 | 0.3747 | -666.0 | -566.8 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 15.82 | 259.86 | 2.83 | 353.03 | 0.3937 | -541.0 | -414.5 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 11.88 | 259.71 | 2.69 | 351.96 | 0.3297 | -923.0 | -748.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.92 | 259.74 | 2.71 | 352.70 | 0.3629 | -805.0 | -590.8 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 14.24 | 259.59 | 2.56 | 353.20 | 0.3678 | -638.0 | -471.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.95 | 259.19 | 2.17 | 353.52 | 0.3297 | -953.0 | -764.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.66 | 258.95 | 1.92 | 354.16 | 0.3245 | -858.0 | -673.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 12.48 | 258.83 | 1.81 | 354.74 | 0.3379 | -845.0 | -693.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.75 | 258.28 | 1.25 | 356.20 | 0.3252 | -742.0 | -595.0 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 13.41 | 254.39 | -2.63 | 7.27 | 0.3546 | -828.0 | -516.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 11.62 | 253.40 | -3.62 | 10.92 | 0.3279 | 838.0 | 644.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.87 | 253.37 | -3.65 | 10.88 | 0.3321 | 732.0 | 667.2 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 15.45 | 252.48 | -4.54 | 11.28 | 0.3923 | -674.0 | -452.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 12.61 | 252.38 | -4.64 | 13.21 | 0.3473 | 967.0 | 840.6 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 13.64 | 251.37 | -5.65 | 15.15 | 0.3677 | 838.0 | 631.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 16.55 | 250.70 | -6.32 | 14.77 | 0.4157 | -632.0 | -537.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.22 | 248.14 | -8.88 | 25.83 | 0.3491 | 848.0 | 753.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 13.06 | 248.05 | -8.97 | 23.89 | 0.3768 | 647.0 | 432.6 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 10.67 | 247.82 | -9.20 | 27.38 | 0.3432 | 906.0 | 695.7 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.78 | 247.20 | -9.82 | 27.44 | 0.3641 | 748.0 | 665.0 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.40 | 247.18 | -9.84 | 27.97 | 0.3587 | 597.0 | 531.2 | |
| 0.00 | 1.83 | 0.00 | 0.97 | 10.59 | 246.99 | -10.03 | 29.56 | 0.3486 | 771.0 | 633.4 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 10.38 | 246.88 | -10.15 | 30.16 | 0.3465 | 666.0 | 413.9 | |
| 0.00 | 4.44 | 0.00 | 2.34 | 9.82 | 246.59 | -10.44 | 31.71 | 0.3411 | 955.0 | 790.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 16.45 | 246.14 | -10.88 | 24.50 | 0.4384 | 693.0 | 523.0 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.21 | 246.01 | -11.01 | 31.00 | 0.3654 | 907.0 | 704.9 | |
| 0.00 | 1.83 | 0.00 | 0.97 | 11.22 | 245.70 | -11.32 | 31.69 | 0.3681 | 578.0 | 484.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 11.23 | 245.45 | -11.57 | 32.24 | 0.3703 | 912.0 | 676.1 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 12.82 | 244.98 | -12.04 | 31.05 | 0.3961 | 805.0 | 677.2 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 12.38 | 244.91 | -12.12 | 31.80 | 0.3907 | 903.0 | 732.9 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 12.95 | 244.88 | -12.14 | 31.09 | 0.3987 | 625.0 | 503.9 | |
| 0.00 | 3.31 | 0.00 | 1.78 | 12.13 | 244.83 | -12.20 | 32.33 | 0.3880 | 616.0 | 589.3 | |
| 0.00 | 2.35 | 0.00 | 1.26 | 11.63 | 244.63 | -12.39 | 33.46 | 0.3830 | 711.0 | 626.2 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 15.51 | 243.73 | -13.30 | 30.18 | 0.4428 | 683.0 | 593.1 | |
| 1.91 | 3.74 | 1.02 | 2.00 | 10.42 | 243.90 | -13.12 | 36.86 | 0.3738 | 1028.3 | 819.4 | |
| 0.70 | 2.00 | 0.37 | 1.07 | 10.71 | 243.70 | -13.32 | 36.81 | 0.3795 | 887.8 | 784.9 | |
| 0.00 | 2.70 | 0.00 | 1.43 | 9.22 | 243.42 | -13.60 | 39.91 | 0.3634 | 798.0 | 682.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 13.04 | 243.05 | -13.97 | 34.63 | 0.4157 | 646.0 | 515.2 | |
| 0.78 | 2.09 | 0.42 | 1.13 | 10.89 | 241.12 | -15.90 | 41.50 | 0.4078 | 1039.0 | 852.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 11.53 | 240.89 | -16.13 | 40.87 | 0.4178 | 781.0 | 662.5 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 11.94 | 240.84 | -16.19 | 40.32 | 0.4233 | 759.0 | 622.0 | |
| 0.00 | 5.40 | 0.00 | 2.93 | 11.09 | 240.82 | -16.20 | 41.70 | 0.4133 | 522.0 | 579.2 | |
| 0.00 | 2.44 | 0.00 | 1.33 | 11.95 | 240.49 | -16.54 | 40.91 | 0.4270 | 658.0 | 555.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
