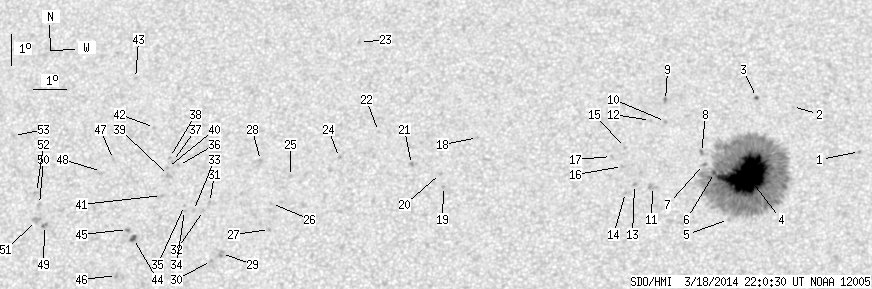

SDO HMI 2014-03-18 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.52 | 597.60 | 50.98 | 316.03 | 12.22 | 260.95 | 4.48 | 342.51 | 0.3513 | -544.5 | -347.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-18 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.56 | 13.05 | 266.17 | 9.70 | 334.41 | 0.3816 | 697.0 | 541.2 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 14.45 | 264.14 | 7.67 | 340.56 | 0.3900 | -568.0 | -400.0 | |
| 0.52 | 1.74 | 0.28 | 0.93 | 14.72 | 263.03 | 6.56 | 343.41 | 0.3887 | 773.0 | 650.4 | |
| 92.86 | 519.12 | 49.04 | 274.16 | 12.23 | 262.68 | 6.21 | 342.24 | 0.3483 | -1459.1 | -459.9 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 10.84 | 262.07 | 5.60 | 342.68 | 0.3234 | -260.0 | -234.1 | |
| 1.31 | -4.00 | 0.69 | -4.00 | 12.32 | 261.67 | 5.20 | 345.05 | 0.3450 | -793.5 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 12.57 | 261.34 | 4.87 | 346.15 | 0.3476 | -820.0 | -708.3 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 12.95 | 261.29 | 4.82 | 346.55 | 0.3535 | -728.0 | -590.5 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 14.60 | 260.21 | 3.74 | 350.30 | 0.3764 | -882.0 | -757.8 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 13.93 | 260.20 | 3.73 | 350.01 | 0.3655 | -813.0 | -658.0 | |
| 0.00 | 4.26 | 0.00 | 2.24 | 11.86 | 259.77 | 3.30 | 350.16 | 0.3309 | -807.0 | -803.1 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.95 | 259.74 | 3.27 | 351.24 | 0.3648 | -731.0 | -549.6 | |
| 0.00 | 1.74 | 0.00 | 0.91 | 11.92 | 259.22 | 2.75 | 351.80 | 0.3305 | -1028.0 | -768.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.67 | 258.94 | 2.47 | 352.51 | 0.3257 | -833.0 | -601.3 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 13.09 | 258.96 | 2.49 | 353.01 | 0.3490 | -655.0 | -490.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.49 | 258.86 | 2.39 | 353.07 | 0.3390 | -784.0 | -672.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.80 | 258.53 | 2.06 | 354.13 | 0.3435 | -596.0 | -565.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 13.41 | 254.42 | -2.05 | 5.67 | 0.3535 | -699.0 | -575.8 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.87 | 253.40 | -3.08 | 9.18 | 0.3304 | 907.0 | 713.8 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 12.28 | 253.30 | -3.17 | 9.26 | 0.3374 | 751.0 | 619.8 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 12.57 | 252.41 | -4.06 | 11.62 | 0.3447 | 846.0 | 721.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.63 | 251.38 | -5.10 | 13.72 | 0.3654 | 830.0 | 621.3 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 16.51 | 250.72 | -5.76 | 13.52 | 0.4130 | -721.0 | -563.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 12.82 | 250.19 | -6.28 | 17.42 | 0.3578 | 799.0 | 708.1 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 12.24 | 248.70 | -7.77 | 21.82 | 0.3571 | 599.0 | 461.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.40 | 248.14 | -8.33 | 24.21 | 0.3480 | 815.0 | 604.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 10.59 | 248.10 | -8.37 | 25.32 | 0.3361 | 944.0 | 740.7 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 12.77 | 247.76 | -8.71 | 23.59 | 0.3709 | 682.0 | 521.6 | |
| 0.00 | 3.74 | 0.00 | 1.97 | 9.87 | 246.65 | -9.83 | 30.10 | 0.3367 | 692.0 | 787.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 9.66 | 246.35 | -10.13 | 31.19 | 0.3362 | 908.0 | 712.2 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 11.48 | 246.23 | -10.25 | 28.84 | 0.3630 | 707.0 | 476.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.23 | 246.05 | -10.42 | 29.60 | 0.3609 | 844.0 | 683.5 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 11.24 | 245.74 | -10.73 | 30.32 | 0.3635 | 826.0 | 592.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 11.25 | 245.46 | -11.01 | 30.95 | 0.3659 | 827.0 | 583.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.40 | 245.45 | -11.02 | 30.74 | 0.3681 | 709.0 | 557.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 12.67 | 245.21 | -11.26 | 29.56 | 0.3878 | 757.0 | 599.9 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 12.80 | 245.02 | -11.45 | 29.81 | 0.3911 | 748.0 | 594.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 12.93 | 244.92 | -11.55 | 29.85 | 0.3937 | 649.0 | 494.0 | |
| 0.00 | 2.52 | 0.00 | 1.35 | 12.36 | 244.92 | -11.56 | 30.62 | 0.3859 | 925.0 | 736.9 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 12.62 | 244.87 | -11.60 | 30.37 | 0.3897 | 745.0 | 604.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 11.74 | 244.73 | -11.75 | 31.90 | 0.3788 | 808.0 | 608.4 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 13.90 | 244.40 | -12.07 | 29.71 | 0.4112 | 736.0 | 538.6 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 15.50 | 243.71 | -12.76 | 29.17 | 0.4384 | 566.0 | 499.6 | |
| 1.83 | 3.48 | 0.97 | 1.85 | 10.41 | 243.91 | -12.56 | 35.69 | 0.3683 | 1013.4 | 825.9 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 10.70 | 243.71 | -12.76 | 35.66 | 0.3740 | 914.0 | 819.5 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 9.27 | 243.43 | -13.05 | 38.65 | 0.3583 | 786.0 | 698.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 12.92 | 243.17 | -13.31 | 33.49 | 0.4083 | 709.0 | 573.6 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 12.55 | 242.81 | -13.66 | 34.72 | 0.4066 | 452.0 | 407.6 | |
| 0.00 | 2.61 | 0.00 | 1.41 | 10.91 | 241.10 | -15.37 | 40.50 | 0.4025 | 1067.0 | 892.4 | |
| 0.00 | 2.26 | 0.00 | 1.23 | 11.57 | 240.91 | -15.56 | 39.79 | 0.4125 | 698.0 | 558.5 | |
| 0.00 | 4.70 | 0.00 | 2.55 | 11.07 | 240.84 | -15.63 | 40.71 | 0.4072 | 840.0 | 690.3 | |
| 0.00 | 1.83 | 0.00 | 1.00 | 11.96 | 240.79 | -15.68 | 39.40 | 0.4184 | 666.0 | 568.2 | |
| 0.00 | 1.83 | 0.00 | 1.01 | 13.80 | 239.94 | -16.53 | 38.17 | 0.4491 | 620.0 | 420.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
