SDO HMI 2014-03-19 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.31 | 567.33 | 53.16 | 300.74 | 12.21 | 261.05 | 6.23 | 342.53 | 0.3578 | -568.2 | -317.3 | |
|
previous
or next observation for the same group /

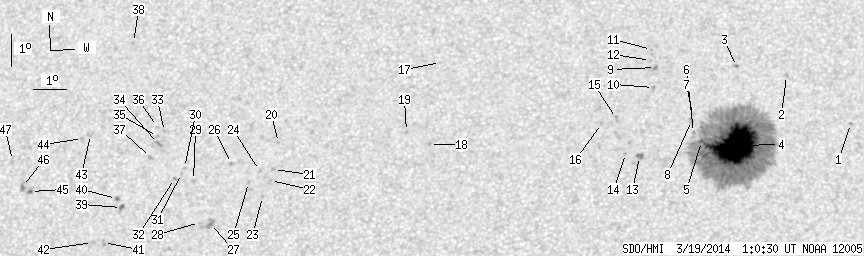

back to the solar disc SDO HMI 2014-03-19 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.52 | 13.00 | 266.26 | 11.44 | 330.47 | 0.3938 | 546.0 | 484.2 | |
| 0.00 | 1.92 | 0.00 | 1.04 | 14.49 | 264.33 | 9.51 | 336.40 | 0.4013 | -773.0 | -572.7 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 14.75 | 262.78 | 7.96 | 340.15 | 0.3961 | 683.0 | 552.5 | |
| 98.39 | 496.04 | 52.15 | 262.88 | 12.23 | 262.66 | 7.84 | 337.98 | 0.3573 | -1353.1 | -428.8 | |
| 1.57 | -4.00 | 0.83 | -4.00 | 12.34 | 261.62 | 6.80 | 340.79 | 0.3530 | -762.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 12.62 | 261.38 | 6.56 | 341.67 | 0.3561 | -705.0 | -607.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.19 | 261.37 | 6.55 | 342.21 | 0.3649 | -453.0 | -352.2 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 13.00 | 261.33 | 6.51 | 342.14 | 0.3617 | -696.0 | -576.2 | |
| 0.00 | 1.65 | 0.00 | 0.89 | 14.68 | 260.26 | 5.44 | 346.09 | 0.3833 | -817.0 | -734.5 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 14.04 | 260.18 | 5.36 | 345.86 | 0.3729 | -793.0 | -648.2 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 15.26 | 260.15 | 5.33 | 346.72 | 0.3919 | -655.0 | -500.8 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 14.91 | 260.11 | 5.29 | 346.60 | 0.3862 | -698.0 | -534.2 | |
| 0.00 | 4.09 | 0.00 | 2.15 | 11.84 | 259.71 | 4.89 | 345.58 | 0.3361 | -957.0 | -868.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.93 | 259.28 | 4.46 | 346.85 | 0.3359 | -971.0 | -801.4 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 13.04 | 259.02 | 4.20 | 348.27 | 0.3528 | -599.0 | -582.1 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 12.88 | 258.56 | 3.74 | 349.45 | 0.3487 | -768.0 | -552.2 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 14.82 | 253.62 | -1.20 | 3.10 | 0.3753 | -527.0 | -459.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 12.21 | 253.30 | -1.52 | 4.50 | 0.3329 | 816.0 | 678.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 12.62 | 252.59 | -2.23 | 6.42 | 0.3409 | 852.0 | 617.5 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 12.32 | 248.67 | -6.15 | 17.51 | 0.3492 | 701.0 | 544.4 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 11.47 | 248.54 | -6.28 | 18.66 | 0.3366 | 826.0 | 691.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.12 | 248.45 | -6.37 | 19.24 | 0.3317 | 815.0 | 677.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 10.62 | 248.22 | -6.60 | 20.42 | 0.3253 | 920.0 | 745.2 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 11.44 | 248.11 | -6.71 | 19.86 | 0.3386 | 672.0 | 510.1 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.07 | 247.78 | -7.04 | 21.15 | 0.3347 | 786.0 | 651.8 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 11.68 | 247.25 | -7.58 | 21.93 | 0.3472 | 888.0 | 648.7 | |
| 0.00 | 4.88 | 0.00 | 2.55 | 9.81 | 246.65 | -8.17 | 25.82 | 0.3230 | 952.0 | 796.7 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 9.84 | 246.31 | -8.51 | 26.69 | 0.3260 | 630.0 | 544.6 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 11.16 | 246.09 | -8.73 | 25.52 | 0.3471 | 943.0 | 742.2 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 11.58 | 245.80 | -9.02 | 25.73 | 0.3553 | 686.0 | 564.6 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.39 | 245.71 | -9.11 | 26.18 | 0.3531 | 719.0 | 600.1 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 11.24 | 245.50 | -9.32 | 26.91 | 0.3524 | 684.0 | 484.9 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 12.73 | 245.14 | -9.68 | 25.92 | 0.3768 | 682.0 | 554.2 | |
| 0.00 | 2.87 | 0.00 | 1.53 | 12.35 | 244.97 | -9.85 | 26.78 | 0.3726 | 876.0 | 745.9 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 12.58 | 244.93 | -9.89 | 26.60 | 0.3761 | 653.0 | 540.9 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 12.89 | 244.92 | -9.90 | 26.24 | 0.3807 | 583.0 | 466.7 | |
| 0.00 | 1.92 | 0.00 | 1.02 | 11.92 | 244.74 | -10.08 | 27.87 | 0.3680 | 861.0 | 726.0 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 15.61 | 244.04 | -10.78 | 25.14 | 0.4258 | 671.0 | 536.1 | |
| 0.00 | 2.87 | 0.00 | 1.52 | 10.37 | 243.90 | -10.92 | 32.04 | 0.3529 | 1103.0 | 871.3 | |
| 0.35 | 1.48 | 0.18 | 0.78 | 10.65 | 243.73 | -11.09 | 31.99 | 0.3583 | 860.8 | 728.3 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 9.29 | 243.38 | -11.44 | 35.00 | 0.3429 | 787.0 | 737.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 9.30 | 243.04 | -11.78 | 35.78 | 0.3462 | 697.0 | 505.4 | |
| 0.00 | 3.13 | 0.00 | 1.69 | 12.69 | 242.84 | -11.98 | 31.09 | 0.3939 | 709.0 | 527.6 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 12.58 | 242.59 | -12.23 | 31.76 | 0.3943 | 627.0 | 538.0 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 10.95 | 241.04 | -13.78 | 37.36 | 0.3870 | 1029.0 | 880.0 | |
| 0.00 | 4.01 | 0.00 | 2.15 | 11.12 | 240.79 | -14.04 | 37.61 | 0.3916 | 858.0 | 724.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 11.95 | 240.43 | -14.39 | 37.02 | 0.4056 | 567.0 | 561.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
