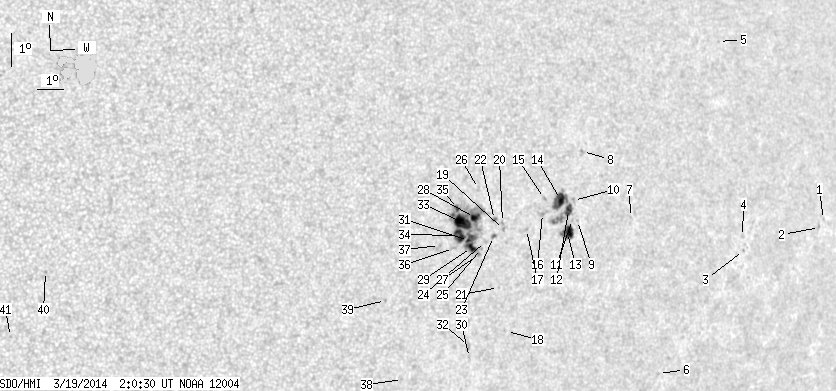

SDO HMI 2014-03-19 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.97 | 189.76 | 39.98 | 125.00 | -10.91 | 295.74 | 41.47 | 261.43 | 0.6590 | -182.9 | -71.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-19 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.68 | -9.40 | 309.96 | 55.68 | 263.45 | 0.8224 | 284.0 | 292.1 | |
| 0.00 | 0.87 | 0.00 | 0.75 | -9.66 | 309.80 | 55.53 | 263.15 | 0.8208 | 545.0 | 482.1 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -10.71 | 306.14 | 51.87 | 261.93 | 0.7829 | 454.0 | 486.6 | |
| 0.00 | 1.57 | 0.00 | 1.24 | -10.31 | 306.00 | 51.73 | 262.46 | 0.7814 | 565.0 | 487.6 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -4.64 | 303.95 | 49.68 | 269.96 | 0.7622 | 348.0 | 330.8 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -14.72 | 303.13 | 48.86 | 256.59 | 0.7511 | 482.0 | 422.6 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -10.21 | 300.76 | 46.49 | 262.63 | 0.7220 | -469.0 | -370.9 | |
| 0.00 | 1.65 | 0.00 | 1.13 | -8.43 | 298.39 | 44.12 | 265.20 | 0.6934 | -701.0 | -572.3 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -10.49 | 298.51 | 44.24 | 262.21 | 0.6948 | 301.0 | 240.6 | |
| 0.00 | 2.00 | 0.00 | 1.37 | -9.92 | 298.24 | 43.97 | 263.05 | 0.6914 | 387.0 | 377.9 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -10.48 | 298.30 | 44.03 | 262.23 | 0.6921 | 278.0 | 279.4 | |
| 5.23 | 37.18 | 3.56 | 25.23 | -10.23 | 298.09 | 43.82 | 262.59 | 0.6894 | 585.3 | 657.3 | |
| 9.93 | 13.41 | 6.78 | 9.16 | -10.89 | 298.16 | 43.89 | 261.64 | 0.6905 | 647.9 | 480.2 | |
| 7.40 | -12.00 | 5.02 | -12.00 | -9.93 | 297.70 | 43.43 | 263.03 | 0.6845 | 836.1 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.93 | -9.96 | 297.04 | 42.77 | 262.98 | 0.6762 | 573.0 | 444.4 | |
| 0.00 | 4.01 | 0.00 | 2.68 | -10.41 | 297.03 | 42.76 | 262.31 | 0.6761 | 552.0 | 450.8 | |
| 0.00 | 1.39 | 0.00 | 0.93 | -10.94 | 296.46 | 42.19 | 261.51 | 0.6690 | 580.0 | 433.2 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -14.03 | 296.25 | 41.98 | 256.85 | 0.6687 | -386.0 | -447.1 | |
| 0.00 | 1.22 | 0.00 | 0.80 | -11.01 | 295.53 | 41.26 | 261.35 | 0.6571 | -394.0 | -336.4 | |
| 0.00 | 1.22 | 0.00 | 0.80 | -10.80 | 295.46 | 41.19 | 261.66 | 0.6561 | -430.0 | -329.9 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -12.75 | 295.65 | 41.38 | 258.71 | 0.6597 | -138.0 | -208.2 | |
| 0.44 | 2.26 | 0.28 | 1.47 | -10.74 | 295.12 | 40.85 | 261.75 | 0.6517 | -618.6 | -521.1 | |
| 0.78 | 2.26 | 0.51 | 1.48 | -11.25 | 295.17 | 40.90 | 260.97 | 0.6525 | -523.0 | -382.3 | |
| 0.00 | 1.92 | 0.00 | 1.24 | -11.42 | 294.88 | 40.60 | 260.68 | 0.6488 | -186.0 | -212.6 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -11.64 | 294.75 | 40.48 | 260.33 | 0.6473 | -347.0 | -303.8 | |
| 0.00 | 2.18 | 0.00 | 1.40 | -9.87 | 294.35 | 40.08 | 263.08 | 0.6413 | -459.0 | -416.1 | |
| 0.00 | 1.48 | 0.00 | 0.96 | -11.83 | 294.67 | 40.39 | 260.04 | 0.6463 | -262.0 | -287.1 | |
| 4.01 | 95.10 | 2.58 | 61.02 | -10.74 | 294.32 | 40.05 | 261.71 | 0.6412 | -635.9 | -417.5 | |
| 4.79 | -28.00 | 3.09 | -28.00 | -11.64 | 294.35 | 40.08 | 260.30 | 0.6421 | -706.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -14.93 | 294.93 | 40.66 | 255.30 | 0.6531 | -560.0 | -408.5 | |
| 1.13 | -28.00 | 0.73 | -28.00 | -11.45 | 294.20 | 39.93 | 260.60 | 0.6399 | -686.0 | 999999 | |
| 0.00 | 3.40 | 0.00 | 2.21 | -14.57 | 294.81 | 40.54 | 255.83 | 0.6511 | -425.0 | -403.1 | |
| 16.02 | -28.00 | 10.25 | -28.00 | -10.93 | 293.88 | 39.61 | 261.39 | 0.6354 | -880.6 | 999999 | |
| 9.41 | -28.00 | 6.01 | -28.00 | -11.32 | 293.82 | 39.55 | 260.76 | 0.6349 | -855.8 | 999999 | |
| 1.83 | -28.00 | 1.17 | -28.00 | -10.53 | 293.62 | 39.35 | 262.01 | 0.6317 | -705.2 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.50 | -11.73 | 293.65 | 39.38 | 260.11 | 0.6329 | -666.0 | -446.2 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -11.68 | 293.09 | 38.82 | 260.14 | 0.6254 | -526.0 | -553.0 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -15.78 | 292.43 | 38.16 | 253.46 | 0.6225 | -577.0 | -533.3 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -13.47 | 291.30 | 37.03 | 256.99 | 0.6034 | -709.0 | -605.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -13.34 | 279.08 | 24.81 | 253.63 | 0.4274 | -640.0 | -515.8 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -15.35 | 278.13 | 23.86 | 248.48 | 0.4211 | -752.0 | -683.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
