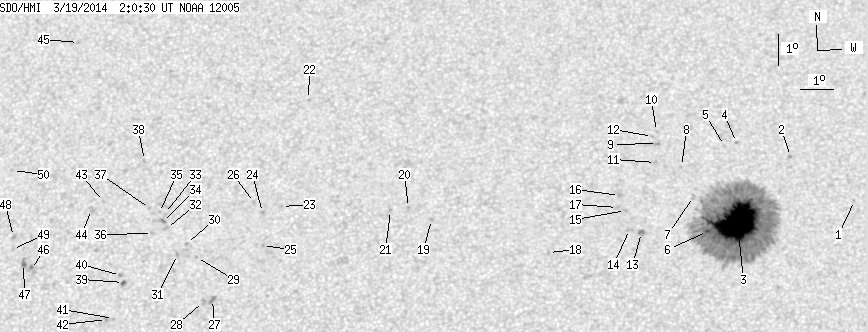

SDO HMI 2014-03-19 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.74 | 602.73 | 49.21 | 319.92 | 12.21 | 260.81 | 6.54 | 341.75 | 0.3610 | -545.7 | -315.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-19 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.56 | 12.99 | 266.34 | 12.06 | 329.13 | 0.3987 | 583.0 | 434.2 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 14.35 | 264.40 | 10.13 | 334.90 | 0.4033 | -676.0 | -461.7 | |
| 90.65 | 517.37 | 48.11 | 274.55 | 12.21 | 262.67 | 8.40 | 336.57 | 0.3605 | -1381.7 | -428.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 14.77 | 262.73 | 8.46 | 339.02 | 0.3990 | 789.0 | 685.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 14.66 | 262.35 | 8.08 | 339.79 | 0.3954 | -487.0 | -389.7 | |
| 1.31 | -3.00 | 0.69 | -3.00 | 11.91 | 261.73 | 7.46 | 338.62 | 0.3502 | -920.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 13.02 | 261.34 | 7.06 | 340.74 | 0.3648 | -661.0 | -522.1 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 13.97 | 260.99 | 6.72 | 342.42 | 0.3777 | -660.0 | -516.0 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 14.70 | 260.27 | 6.00 | 344.74 | 0.3857 | -847.0 | -693.0 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 15.08 | 260.25 | 5.98 | 345.05 | 0.3917 | -680.0 | -487.5 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 14.09 | 260.19 | 5.92 | 344.49 | 0.3759 | -661.0 | -599.2 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 14.92 | 260.12 | 5.85 | 345.25 | 0.3886 | -696.0 | -507.9 | |
| 0.00 | 4.18 | 0.00 | 2.20 | 11.86 | 259.71 | 5.44 | 344.04 | 0.3386 | -975.0 | -808.8 | |
| 0.00 | 2.70 | 0.00 | 1.42 | 11.95 | 259.34 | 5.07 | 345.13 | 0.3385 | -792.0 | -701.8 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 12.55 | 259.23 | 4.96 | 345.89 | 0.3476 | -735.0 | -549.2 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 13.02 | 259.06 | 4.79 | 346.69 | 0.3545 | -753.0 | -646.3 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 12.64 | 258.99 | 4.72 | 346.62 | 0.3481 | -627.0 | -528.5 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 11.20 | 256.86 | 2.59 | 351.97 | 0.3183 | -780.0 | -538.8 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 12.24 | 253.30 | -0.98 | 2.88 | 0.3329 | 821.0 | 695.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.63 | 252.59 | -1.68 | 4.85 | 0.3400 | 851.0 | 715.8 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 12.53 | 252.04 | -2.23 | 6.46 | 0.3394 | 807.0 | 652.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 16.12 | 249.46 | -4.81 | 11.58 | 0.4036 | -731.0 | -623.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 12.69 | 248.70 | -5.57 | 15.66 | 0.3525 | 667.0 | 588.4 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 12.51 | 248.12 | -6.15 | 17.36 | 0.3523 | 804.0 | 671.4 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 11.47 | 248.14 | -6.13 | 18.24 | 0.3359 | 703.0 | 575.7 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 12.83 | 247.86 | -6.41 | 17.74 | 0.3586 | 609.0 | 544.3 | |
| 0.00 | 4.09 | 0.00 | 2.14 | 9.80 | 246.65 | -7.62 | 24.30 | 0.3191 | 1033.0 | 842.0 | |
| 0.00 | 2.79 | 0.00 | 1.46 | 9.75 | 246.37 | -7.90 | 25.15 | 0.3201 | 623.0 | 679.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.13 | 246.12 | -8.15 | 24.06 | 0.3426 | 850.0 | 726.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 11.57 | 245.80 | -8.47 | 24.35 | 0.3514 | 722.0 | 536.7 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 11.23 | 245.54 | -8.73 | 25.45 | 0.3481 | 663.0 | 408.6 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 12.06 | 245.17 | -9.10 | 25.34 | 0.3629 | 764.0 | 648.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 12.54 | 245.09 | -9.18 | 24.97 | 0.3704 | 660.0 | 575.2 | |
| 0.00 | 3.31 | 0.00 | 1.76 | 12.28 | 245.04 | -9.23 | 25.39 | 0.3671 | 887.0 | 745.1 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.57 | 244.94 | -9.33 | 25.30 | 0.3720 | 602.0 | 505.5 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 11.91 | 244.74 | -9.53 | 26.56 | 0.3638 | 820.0 | 699.4 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 12.71 | 244.62 | -9.65 | 25.88 | 0.3762 | 514.0 | 353.6 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 14.24 | 244.41 | -9.87 | 24.65 | 0.4000 | 705.0 | 651.6 | |
| 0.78 | 2.09 | 0.41 | 1.10 | 10.39 | 243.90 | -10.37 | 30.68 | 0.3486 | 998.0 | 865.5 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 10.61 | 243.80 | -10.47 | 30.60 | 0.3525 | 916.0 | 778.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 9.28 | 243.63 | -10.64 | 33.10 | 0.3353 | 822.0 | 668.2 | |
| 0.00 | 2.35 | 0.00 | 1.24 | 9.25 | 243.41 | -10.86 | 33.67 | 0.3369 | 1010.0 | 750.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 12.96 | 243.18 | -11.09 | 28.82 | 0.3905 | 734.0 | 579.3 | |
| 0.00 | 3.74 | 0.00 | 2.01 | 12.72 | 242.82 | -11.45 | 29.93 | 0.3900 | 587.0 | 572.2 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 18.14 | 242.10 | -12.17 | 25.32 | 0.4705 | 485.0 | 334.5 | |
| 0.00 | 4.18 | 0.00 | 2.24 | 10.88 | 241.03 | -13.24 | 36.39 | 0.3809 | 592.0 | 599.1 | |
| 0.00 | 4.44 | 0.00 | 2.38 | 11.08 | 240.77 | -13.50 | 36.61 | 0.3859 | 844.0 | 733.6 | |
| 0.00 | 2.53 | 0.00 | 1.36 | 11.94 | 240.41 | -13.86 | 36.01 | 0.4004 | 699.0 | 553.9 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 11.53 | 240.40 | -13.87 | 36.65 | 0.3952 | 649.0 | 488.6 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 14.04 | 240.26 | -14.01 | 33.35 | 0.4290 | 603.0 | 515.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
