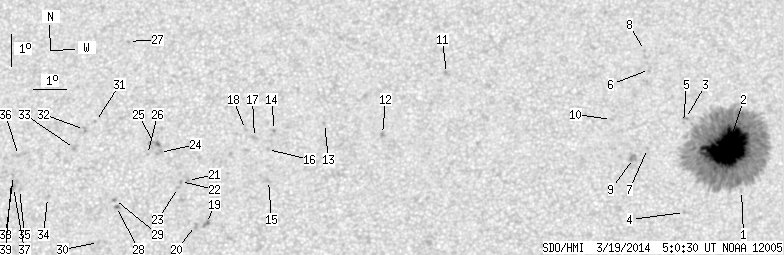

SDO HMI 2014-03-19 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.41 | 596.50 | 52.99 | 317.73 | 12.19 | 260.99 | 8.37 | 337.25 | 0.3695 | -679.3 | -301.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-19 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 0.97 | 10.88 | 263.02 | 10.39 | 329.97 | 0.3554 | -218.0 | -207.2 | |
| 99.06 | 525.51 | 52.81 | 280.18 | 12.23 | 262.63 | 10.01 | 332.68 | 0.3717 | -1495.3 | -410.8 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 13.12 | 261.37 | 8.74 | 336.72 | 0.3760 | -625.0 | -541.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 10.16 | 261.24 | 8.61 | 333.45 | 0.3312 | 763.0 | 571.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.99 | 261.30 | 8.67 | 336.74 | 0.3737 | -748.0 | -599.0 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 14.67 | 260.31 | 7.68 | 340.72 | 0.3931 | -826.0 | -666.1 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 12.15 | 260.16 | 7.53 | 338.68 | 0.3540 | -844.0 | -652.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 15.28 | 260.17 | 7.55 | 341.54 | 0.4017 | -709.0 | -528.8 | |
| 0.00 | 4.62 | 0.00 | 2.44 | 11.83 | 259.72 | 7.09 | 339.49 | 0.3465 | -863.0 | -836.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.05 | 259.08 | 6.45 | 342.33 | 0.3620 | -706.0 | -583.3 | |
| 0.00 | 2.44 | 0.00 | 1.30 | 14.48 | 254.02 | 1.39 | 356.34 | 0.3699 | -663.0 | -496.6 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 12.54 | 252.05 | -0.58 | 1.68 | 0.3374 | 869.0 | 674.3 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 12.90 | 250.27 | -2.36 | 6.69 | 0.3454 | 791.0 | 638.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 12.69 | 248.74 | -3.89 | 11.07 | 0.3458 | 764.0 | 657.3 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 11.11 | 248.58 | -4.05 | 12.52 | 0.3209 | 881.0 | 693.0 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 12.09 | 248.54 | -4.09 | 12.01 | 0.3368 | 710.0 | 592.9 | |
| 0.00 | 2.87 | 0.00 | 1.52 | 12.47 | 248.13 | -4.50 | 12.90 | 0.3444 | 737.0 | 587.9 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 12.73 | 247.85 | -4.78 | 13.49 | 0.3496 | 827.0 | 583.6 | |
| 0.00 | 3.31 | 0.00 | 1.72 | 9.79 | 246.71 | -5.92 | 19.34 | 0.3082 | 1103.0 | 885.2 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 9.73 | 246.38 | -6.25 | 20.41 | 0.3092 | 778.0 | 684.0 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 11.14 | 246.10 | -6.52 | 19.66 | 0.3327 | 878.0 | 680.2 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 11.11 | 245.89 | -6.74 | 20.29 | 0.3335 | 781.0 | 685.3 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 10.93 | 245.83 | -6.79 | 20.65 | 0.3309 | 825.0 | 639.8 | |
| 0.00 | 3.48 | 0.00 | 1.84 | 12.04 | 245.22 | -7.40 | 21.10 | 0.3515 | 814.0 | 667.9 | |
| 0.00 | 5.40 | 0.00 | 2.86 | 12.33 | 245.06 | -7.57 | 21.22 | 0.3569 | 650.0 | 737.0 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.98 | 244.86 | -7.77 | 22.12 | 0.3529 | 714.0 | 553.3 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 15.61 | 244.14 | -8.49 | 20.29 | 0.4116 | 726.0 | 610.1 | |
| 0.35 | 2.00 | 0.18 | 1.05 | 10.37 | 243.95 | -8.68 | 26.45 | 0.3348 | 1055.8 | 849.2 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 10.59 | 243.88 | -8.75 | 26.33 | 0.3385 | 949.0 | 620.6 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 9.25 | 243.42 | -9.20 | 29.44 | 0.3226 | 788.0 | 615.1 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 13.06 | 243.21 | -9.42 | 24.94 | 0.3796 | 706.0 | 517.3 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 12.82 | 242.88 | -9.75 | 25.99 | 0.3783 | 802.0 | 702.4 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 12.22 | 242.59 | -10.04 | 27.39 | 0.3718 | 873.0 | 743.8 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 10.70 | 241.81 | -10.82 | 31.31 | 0.3564 | 689.0 | 476.2 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 10.97 | 240.93 | -11.69 | 32.92 | 0.3677 | 874.0 | 736.2 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 12.04 | 240.86 | -11.77 | 31.54 | 0.3831 | 710.0 | 556.4 | |
| 0.00 | 2.53 | 0.00 | 1.35 | 11.04 | 240.74 | -11.88 | 33.24 | 0.3703 | 820.0 | 770.0 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 11.42 | 240.73 | -11.90 | 32.71 | 0.3756 | 749.0 | 622.8 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 11.23 | 240.67 | -11.95 | 33.11 | 0.3735 | 540.0 | 427.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
