SDO HMI 2014-03-19 06:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.18 | 35.54 | 6.40 | 62.86 | -17.22 | 326.97 | 74.89 | 253.98 | 0.9577 | -105.8 | -45.2 | |
|
previous
or next observation for the same group /

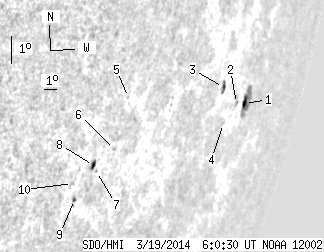

back to the solar disc SDO HMI 2014-03-19 06:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.74 | 18.82 | 3.58 | 39.25 | -16.59 | 329.61 | 77.53 | 254.59 | 0.9717 | -29.5 | -122.6 | |
| 0.00 | 1.48 | 0.00 | 2.87 | -16.71 | 328.63 | 76.55 | 254.52 | 0.9677 | 244.0 | 315.6 | |
| 0.00 | 4.44 | 0.00 | 7.65 | -16.44 | 326.66 | 74.58 | 254.90 | 0.9589 | 410.0 | 310.6 | |
| 0.00 | 0.87 | 0.00 | 1.60 | -17.43 | 327.81 | 75.73 | 253.82 | 0.9640 | 281.0 | 212.3 | |
| 0.00 | 0.61 | 0.00 | 0.73 | -17.66 | 318.67 | 66.59 | 253.77 | 0.9125 | -379.0 | -332.1 | |
| 0.00 | 1.31 | 0.00 | 1.57 | -19.28 | 318.80 | 66.72 | 252.01 | 0.9134 | 197.0 | 186.7 | |
| 0.00 | 0.70 | 0.00 | 0.82 | -20.06 | 318.00 | 65.92 | 251.13 | 0.9081 | -257.0 | -249.1 | |
| 2.00 | 3.83 | 2.32 | 4.44 | -19.91 | 317.65 | 65.57 | 251.29 | 0.9056 | -428.3 | -320.3 | |
| 0.44 | 1.74 | 0.50 | 1.98 | -21.04 | 317.11 | 65.03 | 250.01 | 0.9021 | -546.4 | -347.5 | |
| 0.00 | 1.74 | 0.00 | 1.95 | -20.59 | 316.59 | 64.51 | 250.49 | 0.8983 | -101.0 | -233.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
