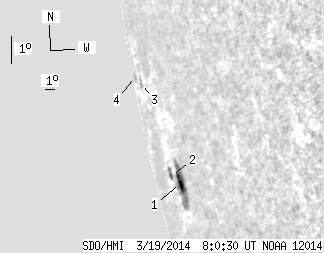

SDO HMI 2014-03-19 08:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.06 | 40.08 | 27.88 | 144.57 | -13.48 | 167.49 | -83.50 | 102.72 | 0.9903 | 47.1 | 48.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-19 08:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.67 | 29.54 | 22.91 | 88.18 | -14.55 | 169.00 | -81.99 | 103.64 | 0.9871 | 121.4 | 142.7 | |
| 1.39 | 5.05 | 4.97 | 17.99 | -14.13 | 167.60 | -83.39 | 103.34 | 0.9907 | -289.4 | -194.3 | |
| 0.00 | 2.96 | 0.00 | 16.03 | -10.98 | 165.10 | -85.89 | 100.44 | 0.9961 | 131.0 | 91.6 | |
| 0.00 | 2.53 | 0.00 | 22.37 | -10.53 | 163.17 | -87.82 | 100.20 | 0.9985 | -66.0 | -118.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
