SDO HMI 2014-03-19 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.68 | 214.12 | 50.24 | 153.34 | -10.74 | 295.51 | 46.72 | 261.84 | 0.7245 | -119.9 | -68.4 | |
|
previous
or next observation for the same group /

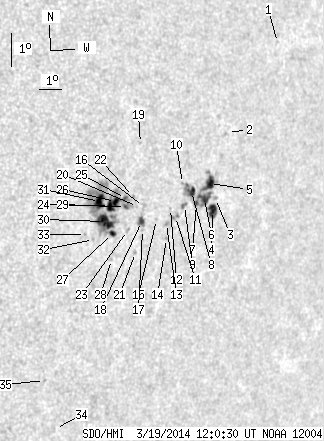

back to the solar disc SDO HMI 2014-03-19 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 1.11 | -5.29 | 300.80 | 52.00 | 268.82 | 0.7871 | 465.0 | 375.9 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -8.18 | 298.81 | 50.01 | 265.24 | 0.7633 | -484.0 | -560.3 | |
| 0.00 | 1.48 | 0.00 | 1.13 | -10.19 | 298.63 | 49.83 | 262.61 | 0.7607 | 263.0 | 186.0 | |
| 8.10 | 10.98 | 6.15 | 8.33 | -10.55 | 298.56 | 49.77 | 262.13 | 0.7600 | 589.5 | 322.2 | |
| 8.36 | 49.39 | 6.31 | 37.02 | -9.77 | 298.26 | 49.46 | 263.17 | 0.7566 | 819.9 | 559.1 | |
| 5.92 | -5.00 | 4.46 | -5.00 | -10.23 | 298.12 | 49.32 | 262.56 | 0.7550 | 713.4 | 999999 | |
| 1.31 | -5.00 | 0.98 | -5.00 | -10.41 | 297.78 | 48.99 | 262.32 | 0.7512 | 645.3 | 999999 | |
| 4.70 | -5.00 | 3.50 | -5.00 | -10.08 | 297.48 | 48.69 | 262.77 | 0.7478 | 861.1 | 999999 | |
| 0.00 | 2.96 | 0.00 | 2.19 | -10.52 | 297.25 | 48.45 | 262.17 | 0.7451 | 675.0 | 587.2 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -9.88 | 297.03 | 48.23 | 263.04 | 0.7426 | 840.0 | 749.8 | |
| 0.00 | 3.22 | 0.00 | 2.37 | -10.88 | 296.92 | 48.12 | 261.68 | 0.7412 | 644.0 | 639.2 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -10.67 | 296.64 | 47.84 | 261.98 | 0.7380 | -209.0 | -111.0 | |
| 0.00 | 2.53 | 0.00 | 1.85 | -11.13 | 296.56 | 47.76 | 261.35 | 0.7371 | 822.0 | 682.6 | |
| 0.00 | 0.87 | 0.00 | 0.64 | -11.57 | 296.66 | 47.86 | 260.75 | 0.7383 | 638.0 | 593.1 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -11.05 | 296.09 | 47.29 | 261.45 | 0.7316 | 497.0 | 411.6 | |
| 0.00 | 3.40 | 0.00 | 2.43 | -10.71 | 295.44 | 46.64 | 261.90 | 0.7239 | 207.0 | 152.0 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -11.40 | 295.54 | 46.74 | 260.96 | 0.7252 | -210.0 | -201.0 | |
| 2.96 | 6.62 | 2.12 | 4.74 | -11.17 | 295.44 | 46.64 | 261.28 | 0.7240 | -459.4 | -237.6 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -8.86 | 294.97 | 46.17 | 264.49 | 0.7185 | -367.0 | -346.3 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -10.74 | 295.18 | 46.38 | 261.87 | 0.7208 | -449.0 | -363.7 | |
| 0.00 | 1.31 | 0.00 | 0.93 | -12.11 | 295.38 | 46.58 | 259.97 | 0.7235 | -411.0 | -352.0 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -10.45 | 294.95 | 46.15 | 262.26 | 0.7180 | -489.0 | -413.1 | |
| 0.00 | 1.92 | 0.00 | 1.36 | -11.49 | 294.89 | 46.09 | 260.82 | 0.7175 | -509.0 | -396.5 | |
| 1.05 | 117.94 | 0.74 | 82.05 | -10.78 | 294.66 | 45.86 | 261.80 | 0.7146 | -507.0 | -404.6 | |
| 1.13 | -24.00 | 0.80 | -24.00 | -10.54 | 294.61 | 45.81 | 262.13 | 0.7140 | -376.2 | 999999 | |
| 4.79 | -24.00 | 3.36 | -24.00 | -10.67 | 294.20 | 45.40 | 261.95 | 0.7090 | -638.8 | 999999 | |
| 2.53 | -24.00 | 1.77 | -24.00 | -11.63 | 294.26 | 45.46 | 260.59 | 0.7100 | -609.5 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -12.40 | 294.38 | 45.59 | 259.50 | 0.7118 | -646.0 | -587.5 | |
| 6.10 | -24.00 | 4.26 | -24.00 | -10.84 | 294.01 | 45.22 | 261.71 | 0.7068 | -796.0 | 999999 | |
| 14.11 | -24.00 | 9.82 | -24.00 | -11.30 | 293.85 | 45.05 | 261.04 | 0.7049 | -908.6 | 999999 | |
| 8.62 | -24.00 | 5.97 | -24.00 | -10.73 | 293.52 | 44.72 | 261.85 | 0.7008 | -1031.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -11.88 | 293.49 | 44.69 | 260.21 | 0.7007 | -602.0 | -398.0 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -11.76 | 293.12 | 44.32 | 260.36 | 0.6962 | -669.0 | -544.8 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -17.64 | 293.33 | 44.53 | 251.99 | 0.7051 | -430.0 | -385.1 | |
| 0.00 | 0.96 | 0.00 | 0.66 | -16.24 | 292.44 | 43.64 | 253.82 | 0.6922 | -514.0 | -477.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
