groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12005 84.22 553.74 45.66 299.57 12.17 261.84 13.59 325.31 0.4041 -904.8 -365.0


previous   or   next   observation for the same group / back to the solar disc

SDO HMI 2014-03-19 13:00:30 UT
No observation available

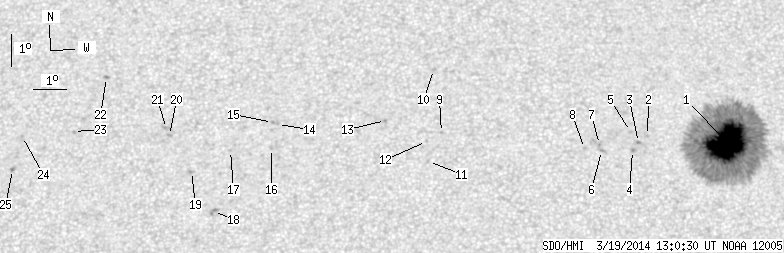

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 84.22 516.29 45.66 279.84 12.18 262.66 14.41 323.23 0.4082 -1511.9 -418.5
2 0.00 0.78 0.00 0.42 12.33 260.16 11.91 328.52 0.3878 -746.0 -596.8
3 0.00 1.57 0.00 0.84 12.10 259.87 11.62 328.83 0.3822 -889.0 -724.8
4 0.00 1.65 0.00 0.88 11.84 259.67 11.42 328.91 0.3770 -901.0 -775.9
5 0.00 1.48 0.00 0.79 12.44 259.63 11.39 329.81 0.3850 -837.0 -715.6
6 0.00 2.18 0.00 1.16 11.82 258.71 10.46 331.07 0.3689 -953.0 -707.0
7 0.00 0.87 0.00 0.46 12.01 258.65 10.40 331.45 0.3711 -951.0 -842.7
8 0.00 1.31 0.00 0.69 11.87 258.18 9.93 332.37 0.3656 -817.0 -617.0
9 0.00 0.78 0.00 0.41 12.31 253.79 5.54 344.09 0.3456 818.0 680.0
10 0.00 1.31 0.00 0.70 14.31 253.59 5.34 346.07 0.3764 -662.0 -559.7
11 0.00 1.39 0.00 0.73 11.39 253.37 5.12 344.51 0.3292 816.0 500.6
12 0.00 0.87 0.00 0.46 12.02 253.32 5.07 345.15 0.3390 621.0 460.4
13 0.00 1.22 0.00 0.64 12.67 252.08 3.83 349.06 0.3450 902.0 754.5
14 0.00 1.22 0.00 0.64 12.53 248.77 0.52 358.47 0.3368 418.0 290.6
15 0.00 1.22 0.00 0.64 12.59 248.62 0.37 358.92 0.3378 721.0 609.8
16 0.00 1.39 0.00 0.73 11.77 248.59 0.34 358.97 0.3242 807.0 638.4
17 0.00 0.78 0.00 0.41 11.71 247.34 -0.91 2.77 0.3235 881.0 740.8
18 0.00 3.92 0.00 2.03 9.80 246.83 -1.42 4.82 0.2922 891.0 839.8
19 0.00 2.00 0.00 1.04 11.06 246.15 -2.10 6.59 0.3142 824.0 684.5
20 0.00 1.83 0.00 0.96 12.20 245.47 -2.78 8.17 0.3344 940.0 791.5
21 0.00 3.40 0.00 1.79 12.42 245.38 -2.87 8.35 0.3382 699.0 639.4
22 0.00 2.09 0.00 1.11 14.06 243.51 -4.74 12.55 0.3702 880.0 742.3
23 0.00 1.31 0.00 0.69 12.35 242.53 -5.72 16.35 0.3472 735.0 627.2
24 0.00 1.05 0.00 0.55 12.22 240.97 -7.28 20.63 0.3532 832.0 692.1
25 0.00 1.83 0.00 0.96 11.18 240.69 -7.56 22.49 0.3391 976.0 829.5


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
