SDO HMI 2014-03-19 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.26 | 224.48 | 45.97 | 166.10 | -10.85 | 295.71 | 48.56 | 261.71 | 0.7458 | -220.6 | 2.2 | |
|
previous
or next observation for the same group /

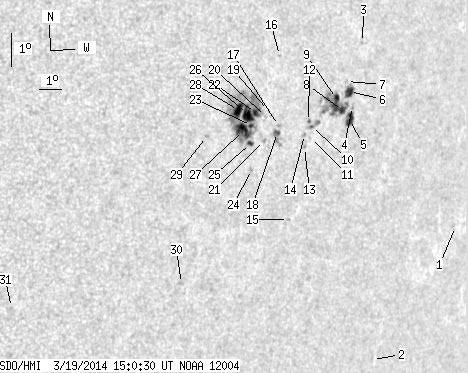

back to the solar disc SDO HMI 2014-03-19 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.95 | -13.13 | 305.03 | 57.88 | 258.90 | 0.8427 | 435.0 | 464.3 | |
| 0.00 | 1.04 | 0.00 | 0.89 | -17.49 | 302.15 | 55.00 | 253.52 | 0.8170 | 240.0 | 241.0 | |
| 0.00 | 1.31 | 0.00 | 1.03 | -8.18 | 298.79 | 51.64 | 265.15 | 0.7812 | -583.0 | -426.5 | |
| 0.00 | 1.92 | 0.00 | 1.51 | -10.12 | 298.69 | 51.54 | 262.67 | 0.7795 | 132.0 | 120.6 | |
| 6.97 | 56.77 | 5.48 | 44.00 | -10.52 | 298.63 | 51.48 | 262.16 | 0.7788 | 536.3 | 583.8 | |
| 6.10 | 10.10 | 4.77 | 7.91 | -9.69 | 298.45 | 51.30 | 263.23 | 0.7770 | 737.7 | 502.0 | |
| 0.00 | 1.48 | 0.00 | 1.15 | -9.41 | 298.24 | 51.09 | 263.60 | 0.7748 | 484.0 | 428.6 | |
| 3.48 | -5.00 | 2.72 | -5.00 | -10.28 | 298.24 | 51.09 | 262.47 | 0.7746 | 711.2 | 999999 | |
| 2.96 | -5.00 | 2.29 | -5.00 | -9.95 | 297.87 | 50.72 | 262.90 | 0.7706 | 869.0 | 999999 | |
| 0.61 | 5.57 | 0.46 | 4.24 | -10.89 | 296.89 | 49.74 | 261.68 | 0.7596 | 766.3 | 592.3 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -11.25 | 296.92 | 49.77 | 261.21 | 0.7600 | 595.0 | 584.3 | |
| 0.52 | 1.48 | 0.40 | 1.12 | -10.76 | 296.72 | 49.57 | 261.86 | 0.7577 | 74.8 | 49.4 | |
| 0.00 | 1.31 | 0.00 | 0.99 | -11.54 | 296.71 | 49.56 | 260.82 | 0.7577 | 638.0 | 547.6 | |
| 0.00 | 1.57 | 0.00 | 1.18 | -11.16 | 296.62 | 49.47 | 261.33 | 0.7566 | 674.0 | 653.6 | |
| 0.00 | 1.31 | 0.00 | 0.99 | -13.74 | 296.53 | 49.38 | 257.90 | 0.7564 | -570.0 | -420.7 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -8.92 | 295.02 | 47.87 | 264.35 | 0.7385 | -474.0 | -345.0 | |
| 0.00 | 1.57 | 0.00 | 1.16 | -11.00 | 295.38 | 48.23 | 261.53 | 0.7425 | 206.0 | 199.1 | |
| 1.74 | 9.75 | 1.28 | 7.19 | -11.21 | 295.38 | 48.23 | 261.25 | 0.7425 | -443.8 | -297.8 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -10.59 | 294.84 | 47.69 | 262.08 | 0.7362 | -353.0 | -295.5 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -10.78 | 294.74 | 47.59 | 261.82 | 0.7351 | -282.0 | -239.3 | |
| 0.00 | 1.65 | 0.00 | 1.21 | -11.50 | 294.85 | 47.70 | 260.84 | 0.7364 | -501.0 | -431.9 | |
| 2.96 | 119.03 | 2.14 | 85.17 | -10.70 | 294.27 | 47.12 | 261.92 | 0.7296 | -590.3 | -371.5 | |
| 1.39 | -22.00 | 1.00 | -22.00 | -11.10 | 294.17 | 47.02 | 261.37 | 0.7285 | -579.6 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.07 | -12.41 | 294.47 | 47.32 | 259.59 | 0.7323 | -643.0 | -520.3 | |
| 1.92 | -22.00 | 1.38 | -22.00 | -11.64 | 294.25 | 47.10 | 260.63 | 0.7295 | -605.5 | 999999 | |
| 10.97 | -22.00 | 7.87 | -22.00 | -10.79 | 293.93 | 46.78 | 261.79 | 0.7256 | -789.3 | 999999 | |
| 14.80 | -22.00 | 10.60 | -22.00 | -11.28 | 293.86 | 46.71 | 261.11 | 0.7248 | -869.5 | 999999 | |
| 7.84 | -22.00 | 5.58 | -22.00 | -10.71 | 293.52 | 46.37 | 261.90 | 0.7207 | -1055.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.97 | -11.60 | 292.29 | 45.14 | 260.62 | 0.7062 | -702.0 | -571.2 | |
| 0.00 | 1.48 | 0.00 | 1.04 | -16.06 | 292.30 | 45.15 | 254.32 | 0.7100 | -719.0 | -502.1 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -17.33 | 285.51 | 38.36 | 251.03 | 0.6288 | -170.0 | -160.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
