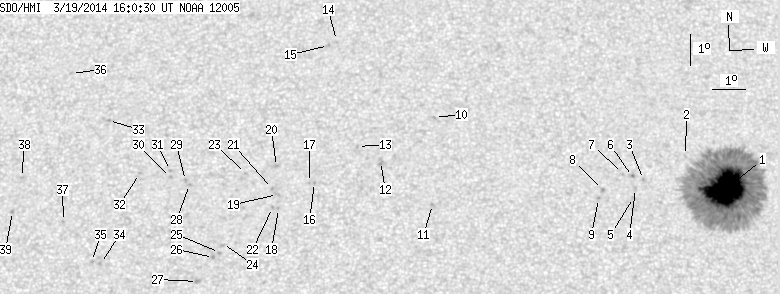

SDO HMI 2014-03-19 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.93 | 550.08 | 45.86 | 299.58 | 12.14 | 261.46 | 14.86 | 323.10 | 0.4167 | -692.8 | -349.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-19 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.93 | 498.71 | 45.86 | 272.43 | 12.16 | 262.62 | 16.02 | 320.25 | 0.4238 | -1563.3 | -429.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 13.17 | 261.42 | 14.82 | 323.91 | 0.4246 | -646.0 | -491.9 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 12.36 | 260.04 | 13.44 | 325.40 | 0.4016 | -863.0 | -723.9 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 12.07 | 259.78 | 13.18 | 325.51 | 0.3954 | -843.0 | -552.8 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 11.79 | 259.70 | 13.10 | 325.25 | 0.3909 | -861.0 | -621.1 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 12.45 | 259.70 | 13.10 | 326.20 | 0.3997 | -892.0 | -820.1 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 12.54 | 259.39 | 12.80 | 326.95 | 0.3982 | -812.0 | -675.8 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 12.01 | 258.74 | 12.14 | 327.58 | 0.3855 | -928.0 | -772.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 11.72 | 258.60 | 12.01 | 327.47 | 0.3804 | -766.0 | -687.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 14.20 | 253.61 | 7.01 | 341.88 | 0.3821 | -650.0 | -519.4 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 11.43 | 253.47 | 6.87 | 339.66 | 0.3388 | 854.0 | 693.6 | |
| 0.00 | 3.48 | 0.00 | 1.84 | 12.77 | 251.90 | 5.30 | 345.09 | 0.3520 | 643.0 | 722.2 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 13.24 | 251.21 | 4.61 | 347.28 | 0.3568 | 778.0 | 607.5 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 16.65 | 250.63 | 4.03 | 350.49 | 0.4091 | -578.0 | -630.8 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 16.49 | 250.38 | 3.78 | 351.01 | 0.4059 | -839.0 | -679.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 12.09 | 249.87 | 3.27 | 350.34 | 0.3340 | 848.0 | 730.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 12.09 | 249.72 | 3.12 | 350.78 | 0.3335 | 834.0 | 670.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.27 | 248.76 | 2.16 | 353.28 | 0.3178 | 755.0 | 602.5 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 11.71 | 248.74 | 2.14 | 353.52 | 0.3251 | 786.0 | 707.1 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 12.59 | 248.71 | 2.11 | 353.89 | 0.3396 | 759.0 | 662.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 11.90 | 248.59 | 1.99 | 354.04 | 0.3279 | 880.0 | 687.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.30 | 248.58 | 1.98 | 353.85 | 0.3180 | 839.0 | 672.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 12.37 | 247.76 | 1.17 | 356.58 | 0.3346 | 862.0 | 697.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 10.17 | 247.06 | 0.46 | 358.48 | 0.2975 | 476.0 | 617.3 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 9.89 | 246.96 | 0.36 | 358.77 | 0.2928 | 916.0 | 753.7 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 9.73 | 246.78 | 0.18 | 359.38 | 0.2901 | 1005.0 | 791.0 | |
| 0.00 | 2.79 | 0.00 | 1.44 | 8.98 | 246.30 | -0.30 | 1.08 | 0.2776 | 879.0 | 670.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 12.02 | 246.05 | -0.55 | 1.63 | 0.3284 | 869.0 | 712.0 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 12.15 | 245.93 | -0.67 | 1.98 | 0.3306 | 843.0 | 677.8 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 12.24 | 245.47 | -1.13 | 3.32 | 0.3325 | 859.0 | 712.5 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 12.47 | 245.47 | -1.13 | 3.29 | 0.3362 | 948.0 | 717.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.38 | 244.53 | -2.07 | 6.06 | 0.3359 | 669.0 | 581.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 14.07 | 243.56 | -3.04 | 8.13 | 0.3655 | 919.0 | 754.6 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 9.56 | 243.36 | -3.24 | 11.03 | 0.2924 | 882.0 | 605.2 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 9.62 | 243.09 | -3.51 | 11.89 | 0.2944 | 868.0 | 703.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.59 | 242.39 | -4.21 | 10.41 | 0.3929 | 774.0 | 614.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 10.88 | 242.22 | -4.38 | 13.69 | 0.3180 | 775.0 | 646.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.28 | 240.92 | -5.68 | 16.32 | 0.3460 | 796.0 | 666.0 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 11.22 | 240.66 | -5.94 | 17.97 | 0.3304 | 958.0 | 724.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
