SDO HMI 2014-03-19 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.79 | 177.98 | 33.58 | 141.34 | -10.71 | 295.26 | 51.97 | 261.89 | 0.7835 | -203.4 | -161.8 | |
|
previous
or next observation for the same group /

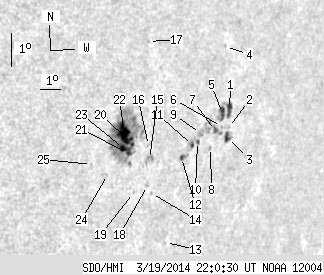

back to the solar disc SDO HMI 2014-03-19 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.70 | 16.72 | 4.05 | 14.32 | -9.54 | 298.74 | 55.45 | 263.29 | 0.8201 | 489.5 | 479.6 | |
| 0.00 | 0.96 | 0.00 | 0.83 | -10.07 | 298.82 | 55.53 | 262.63 | 0.8207 | 208.0 | 130.4 | |
| 3.22 | 6.18 | 2.78 | 5.33 | -10.37 | 298.84 | 55.56 | 262.26 | 0.8209 | 422.2 | 211.1 | |
| 0.00 | 0.78 | 0.00 | 0.67 | -7.70 | 298.13 | 54.84 | 265.57 | 0.8148 | -382.0 | -331.9 | |
| 4.44 | -1.00 | 3.79 | -1.00 | -9.69 | 298.40 | 55.11 | 263.11 | 0.8167 | 700.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.74 | -10.08 | 298.45 | 55.16 | 262.63 | 0.8170 | 499.0 | 452.7 | |
| 1.48 | 12.37 | 1.26 | 10.45 | -10.23 | 298.16 | 54.88 | 262.46 | 0.8141 | 651.8 | 576.1 | |
| 0.00 | 0.61 | 0.00 | 0.52 | -10.75 | 298.04 | 54.75 | 261.81 | 0.8128 | 433.0 | 410.7 | |
| 0.00 | 4.09 | 0.00 | 3.41 | -10.39 | 297.42 | 54.13 | 262.28 | 0.8066 | 688.0 | 517.2 | |
| 0.78 | 7.05 | 0.65 | 5.84 | -10.64 | 297.33 | 54.04 | 261.97 | 0.8056 | 537.4 | 294.5 | |
| 1.13 | -10.00 | 0.94 | -10.00 | -10.78 | 297.10 | 53.81 | 261.79 | 0.8033 | 372.8 | 999999 | |
| 1.48 | 4.35 | 1.21 | 3.57 | -11.19 | 296.64 | 53.35 | 261.29 | 0.7985 | 618.5 | 571.9 | |
| 0.00 | 0.96 | 0.00 | 0.78 | -13.78 | 296.59 | 53.30 | 258.04 | 0.7982 | -527.0 | -449.3 | |
| 0.00 | 1.04 | 0.00 | 0.83 | -12.40 | 295.45 | 52.16 | 259.76 | 0.7861 | -322.0 | -212.8 | |
| 0.00 | 5.75 | 0.00 | 4.55 | -11.40 | 295.09 | 51.80 | 261.03 | 0.7821 | -585.0 | -431.9 | |
| 0.00 | 1.39 | 0.00 | 1.10 | -10.99 | 294.93 | 51.65 | 261.55 | 0.7805 | -292.0 | -202.6 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -7.92 | 294.30 | 51.01 | 265.54 | 0.7745 | -385.0 | -383.0 | |
| 0.00 | 1.39 | 0.00 | 1.10 | -12.18 | 295.19 | 51.90 | 260.03 | 0.7833 | -422.0 | -384.6 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -12.45 | 294.57 | 51.29 | 259.68 | 0.7768 | -451.0 | -420.2 | |
| 1.31 | 110.59 | 1.01 | 85.09 | -11.04 | 294.16 | 50.87 | 261.50 | 0.7722 | -454.1 | -408.5 | |
| 1.83 | -20.00 | 1.42 | -20.00 | -11.32 | 294.04 | 50.75 | 261.13 | 0.7708 | -555.1 | 999999 | |
| 17.76 | -20.00 | 13.66 | -20.00 | -10.77 | 293.72 | 50.43 | 261.84 | 0.7673 | -832.8 | 999999 | |
| 3.66 | -20.00 | 2.81 | -20.00 | -11.19 | 293.77 | 50.48 | 261.30 | 0.7678 | -883.0 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.40 | -12.03 | 293.21 | 49.92 | 260.19 | 0.7617 | -494.0 | -483.5 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -11.80 | 292.40 | 49.11 | 260.47 | 0.7526 | -622.0 | -546.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
