SDO HMI 2014-03-20 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.20 | 152.38 | 26.20 | 126.77 | -10.73 | 295.11 | 54.02 | 261.84 | 0.8050 | -132.8 | -164.9 | |
|
previous
or next observation for the same group /

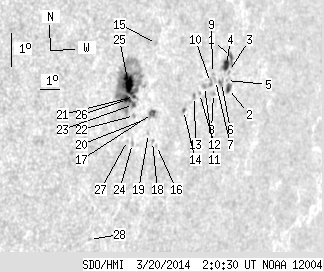

back to the solar disc SDO HMI 2014-03-20 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.74 | 12.37 | 1.59 | 11.25 | -9.39 | 298.85 | 57.76 | 263.36 | 0.8423 | 383.5 | 425.1 | |
| 2.70 | 4.53 | 2.47 | 4.14 | -10.32 | 298.94 | 57.85 | 262.25 | 0.8427 | 312.2 | 187.5 | |
| 0.00 | 2.09 | 0.00 | 1.91 | -9.82 | 298.79 | 57.71 | 262.85 | 0.8416 | 324.0 | 307.0 | |
| 4.71 | -1.00 | 4.27 | -1.00 | -9.62 | 298.63 | 57.54 | 263.09 | 0.8401 | 634.6 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.56 | -10.09 | 298.76 | 57.67 | 262.52 | 0.8412 | 291.0 | 277.6 | |
| 0.00 | 4.18 | 0.00 | 3.78 | -10.18 | 298.50 | 57.41 | 262.43 | 0.8387 | 474.0 | 432.7 | |
| 0.00 | 2.61 | 0.00 | 2.34 | -10.16 | 298.15 | 57.06 | 262.47 | 0.8355 | 634.0 | 561.0 | |
| 0.00 | 2.00 | 0.00 | 1.79 | -10.55 | 298.15 | 57.06 | 262.00 | 0.8353 | 526.0 | 434.5 | |
| 0.00 | 0.78 | 0.00 | 0.70 | -9.97 | 297.93 | 56.84 | 262.71 | 0.8334 | 544.0 | 520.3 | |
| 0.00 | 2.88 | 0.00 | 2.56 | -10.24 | 297.89 | 56.81 | 262.38 | 0.8330 | 636.0 | 583.4 | |
| 0.00 | 2.18 | 0.00 | 1.92 | -10.39 | 297.60 | 56.51 | 262.20 | 0.8302 | 598.0 | 519.2 | |
| 0.00 | 1.13 | 0.00 | 1.00 | -10.63 | 297.39 | 56.30 | 261.93 | 0.8281 | 486.0 | 459.7 | |
| 0.00 | 2.00 | 0.00 | 1.75 | -10.74 | 297.15 | 56.06 | 261.80 | 0.8257 | 590.0 | 456.2 | |
| 0.44 | 1.57 | 0.38 | 1.35 | -11.21 | 296.68 | 55.60 | 261.23 | 0.8211 | 552.0 | 477.4 | |
| 0.00 | 1.83 | 0.00 | 1.51 | -9.37 | 294.79 | 53.70 | 263.56 | 0.8025 | -514.0 | -322.0 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -12.38 | 295.59 | 54.50 | 259.80 | 0.8101 | -189.0 | -156.0 | |
| 2.53 | 5.40 | 2.10 | 4.49 | -11.46 | 295.10 | 54.02 | 260.95 | 0.8053 | -484.7 | -335.6 | |
| 0.00 | 1.48 | 0.00 | 1.24 | -12.28 | 295.34 | 54.26 | 259.92 | 0.8077 | -312.0 | -281.5 | |
| 0.00 | 0.78 | 0.00 | 0.65 | -12.07 | 295.07 | 53.98 | 260.19 | 0.8049 | -417.0 | -298.9 | |
| 0.00 | 1.05 | 0.00 | 0.86 | -11.67 | 294.75 | 53.66 | 260.68 | 0.8017 | -251.0 | -250.2 | |
| 0.61 | 97.15 | 0.50 | 78.28 | -11.04 | 294.07 | 52.98 | 261.48 | 0.7946 | -383.9 | -386.6 | |
| 0.00 | 1.66 | 0.00 | 1.35 | -11.60 | 294.22 | 53.13 | 260.77 | 0.7962 | -487.0 | -408.7 | |
| 1.05 | -21.00 | 0.85 | -21.00 | -11.29 | 294.08 | 52.99 | 261.17 | 0.7947 | -455.3 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.50 | -12.44 | 294.35 | 53.26 | 259.72 | 0.7976 | -566.0 | -442.0 | |
| 13.59 | -21.00 | 10.95 | -21.00 | -10.69 | 293.67 | 52.59 | 261.93 | 0.7906 | -734.7 | 999999 | |
| 3.83 | -21.00 | 3.09 | -21.00 | -11.17 | 293.74 | 52.66 | 261.32 | 0.7913 | -793.8 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -12.38 | 294.08 | 52.99 | 259.79 | 0.7947 | -508.0 | -487.0 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -15.48 | 293.15 | 52.06 | 255.82 | 0.7862 | -501.0 | -438.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
