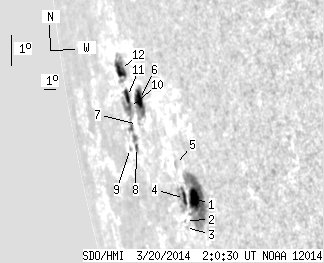

SDO HMI 2014-03-20 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.18 | 173.66 | 81.13 | 295.17 | -12.68 | 167.01 | -74.08 | 101.18 | 0.9570 | 159.4 | 7.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-20 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.94 | 71.89 | 20.78 | 106.64 | -14.63 | 169.42 | -71.67 | 103.07 | 0.9444 | 530.9 | 296.9 | |
| 0.00 | 0.96 | 0.00 | 1.53 | -15.15 | 168.05 | -73.04 | 103.68 | 0.9516 | 89.0 | 30.9 | |
| 0.00 | 0.61 | 0.00 | 0.98 | -15.34 | 167.87 | -73.22 | 103.89 | 0.9525 | -134.0 | -128.6 | |
| 3.57 | 16.21 | 5.56 | 25.48 | -14.52 | 168.49 | -72.60 | 103.00 | 0.9494 | -249.9 | -316.8 | |
| 0.00 | 2.18 | 0.00 | 3.42 | -13.46 | 168.40 | -72.68 | 101.89 | 0.9502 | 186.0 | 171.3 | |
| 10.11 | 25.18 | 18.15 | 45.33 | -11.20 | 166.12 | -74.97 | 99.67 | 0.9623 | 107.2 | -272.8 | |
| 0.00 | 0.87 | 0.00 | 1.63 | -11.87 | 165.34 | -75.75 | 100.43 | 0.9656 | -486.0 | -482.5 | |
| 1.57 | 7.67 | 3.06 | 14.96 | -12.50 | 164.65 | -76.44 | 101.12 | 0.9684 | -319.9 | -426.1 | |
| 0.00 | 1.48 | 0.00 | 3.04 | -12.44 | 163.88 | -77.20 | 101.12 | 0.9716 | -319.0 | -286.6 | |
| 1.74 | 25.18 | 3.39 | 49.52 | -11.29 | 164.80 | -76.29 | 99.87 | 0.9682 | -478.5 | -311.5 | |
| 5.14 | -10.00 | 10.03 | -10.00 | -10.95 | 164.81 | -76.28 | 99.52 | 0.9682 | -178.0 | 999999 | |
| 10.11 | 21.43 | 20.16 | 42.64 | -10.10 | 164.56 | -76.53 | 98.66 | 0.9696 | 356.7 | 326.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
