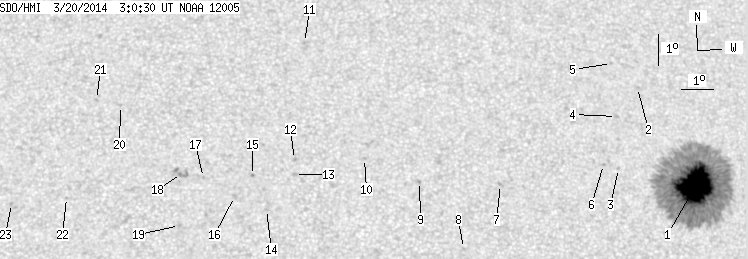

SDO HMI 2014-03-20 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.47 | 519.30 | 43.93 | 293.39 | 12.12 | 261.83 | 21.29 | 312.50 | 0.4819 | -779.8 | -349.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-20 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.47 | 484.54 | 43.93 | 274.75 | 12.10 | 262.61 | 22.07 | 310.99 | 0.4888 | -1316.9 | -403.8 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 15.14 | 260.99 | 20.45 | 317.68 | 0.5030 | -539.0 | -489.4 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 12.52 | 260.13 | 19.59 | 315.08 | 0.4654 | -724.0 | -553.1 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 14.18 | 260.21 | 19.67 | 317.44 | 0.4844 | -715.0 | -564.3 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 15.89 | 260.21 | 19.67 | 319.79 | 0.5035 | -564.0 | -464.2 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 12.63 | 259.65 | 19.11 | 315.95 | 0.4614 | -880.0 | -714.8 | |
| 0.00 | 1.83 | 0.00 | 1.00 | 11.87 | 256.30 | 15.76 | 320.28 | 0.4177 | -768.0 | -606.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 9.82 | 255.02 | 14.48 | 319.31 | 0.3796 | 682.0 | 524.4 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 11.89 | 253.75 | 13.21 | 325.19 | 0.3933 | 809.0 | 715.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 12.57 | 252.06 | 11.52 | 329.70 | 0.3880 | 746.0 | 689.2 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 16.25 | 250.36 | 9.82 | 337.43 | 0.4285 | -721.0 | -556.1 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 12.49 | 249.88 | 9.34 | 334.56 | 0.3704 | 731.0 | 599.7 | |
| 0.00 | 1.92 | 0.00 | 1.02 | 12.02 | 249.86 | 9.32 | 334.03 | 0.3633 | 755.0 | 562.5 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 10.90 | 248.96 | 8.42 | 334.90 | 0.3405 | 696.0 | 500.5 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 11.96 | 248.56 | 8.02 | 337.19 | 0.3538 | 891.0 | 751.3 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 11.29 | 247.99 | 7.45 | 337.94 | 0.3401 | 749.0 | 582.1 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 11.87 | 247.05 | 6.51 | 341.07 | 0.3437 | 741.0 | 532.1 | |
| 0.00 | 7.49 | 0.00 | 3.95 | 11.99 | 246.38 | 5.84 | 343.01 | 0.3422 | 829.0 | 788.2 | |
| 0.00 | 1.74 | 0.00 | 0.91 | 10.36 | 246.28 | 5.75 | 341.75 | 0.3159 | 843.0 | 638.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 14.14 | 244.55 | 4.01 | 349.37 | 0.3692 | 603.0 | 453.3 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 14.32 | 243.81 | 3.27 | 351.37 | 0.3702 | 738.0 | 551.7 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 11.21 | 242.85 | 2.32 | 352.79 | 0.3173 | 704.0 | 545.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.02 | 241.18 | 0.64 | 357.97 | 0.3118 | 835.0 | 702.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
