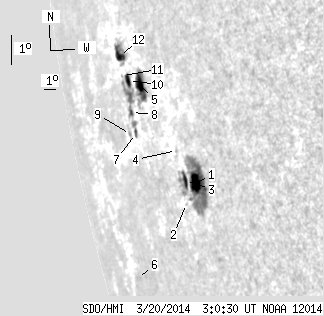

SDO HMI 2014-03-20 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.79 | 188.43 | 71.62 | 312.61 | -13.00 | 166.79 | -73.75 | 101.49 | 0.9550 | 181.8 | -3.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-20 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.16 | 98.83 | 19.08 | 143.94 | -14.66 | 169.43 | -71.11 | 103.08 | 0.9412 | 572.0 | 185.7 | |
| 0.00 | 0.26 | 0.00 | 0.40 | -15.13 | 168.14 | -72.40 | 103.64 | 0.9483 | 139.0 | 171.3 | |
| 5.14 | -1.00 | 7.77 | -1.00 | -14.47 | 168.59 | -71.95 | 102.92 | 0.9460 | -212.5 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.99 | -13.53 | 168.41 | -72.13 | 101.93 | 0.9472 | 41.0 | 91.9 | |
| 10.20 | 28.41 | 17.64 | 49.18 | -11.21 | 166.14 | -74.40 | 99.64 | 0.9596 | 182.4 | -288.2 | |
| 0.00 | 5.32 | 0.00 | 13.96 | -16.48 | 159.81 | -80.73 | 105.50 | 0.9830 | -137.0 | -129.2 | |
| 1.39 | 6.80 | 2.63 | 12.82 | -12.55 | 164.56 | -75.98 | 101.15 | 0.9664 | -280.5 | -454.2 | |
| 1.92 | 26.93 | 3.64 | 50.74 | -11.92 | 164.61 | -75.93 | 100.49 | 0.9664 | -148.4 | -354.7 | |
| 0.00 | 2.44 | 0.00 | 4.82 | -12.51 | 163.94 | -76.60 | 101.15 | 0.9691 | -269.0 | -255.0 | |
| 4.71 | -8.00 | 8.78 | -8.00 | -10.98 | 164.99 | -75.55 | 99.49 | 0.9650 | -150.4 | 999999 | |
| 0.00 | 0.70 | 0.00 | 1.35 | -10.76 | 164.40 | -76.14 | 99.31 | 0.9677 | -113.0 | -169.2 | |
| 6.27 | 17.43 | 12.08 | 33.41 | -10.19 | 164.46 | -76.08 | 98.71 | 0.9677 | 363.3 | 358.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
