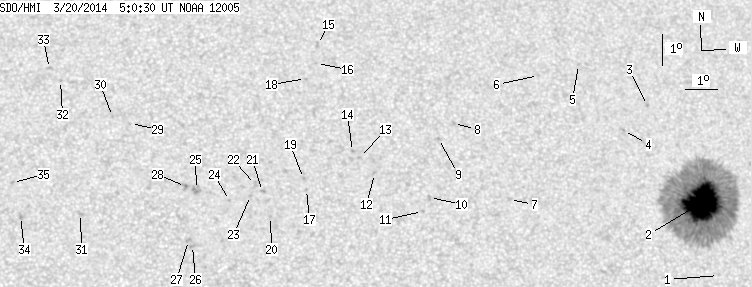

SDO HMI 2014-03-20 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.17 | 543.28 | 49.83 | 308.64 | 12.16 | 261.29 | 21.85 | 312.10 | 0.4898 | -708.9 | -302.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-20 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.30 | 9.82 | 262.95 | 23.51 | 305.49 | 0.4847 | -357.0 | -245.2 | |
| 87.17 | 488.06 | 49.83 | 278.94 | 12.09 | 262.58 | 23.14 | 309.64 | 0.5010 | -1406.6 | -386.6 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 15.11 | 261.09 | 21.65 | 316.01 | 0.5148 | -654.0 | -499.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 14.27 | 260.21 | 20.76 | 316.01 | 0.4967 | -580.0 | -529.6 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 16.34 | 258.94 | 19.49 | 320.64 | 0.5069 | -601.0 | -453.6 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 15.93 | 257.58 | 18.14 | 322.11 | 0.4893 | -570.0 | -471.0 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 11.92 | 256.32 | 16.88 | 318.40 | 0.4297 | -824.0 | -606.9 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 14.28 | 254.70 | 15.25 | 324.66 | 0.4427 | -556.0 | -525.9 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 13.79 | 254.18 | 14.74 | 324.91 | 0.4317 | -735.0 | -635.7 | |
| 0.00 | 1.83 | 0.00 | 0.99 | 11.90 | 253.79 | 14.34 | 322.95 | 0.4040 | 788.0 | 712.4 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 11.45 | 253.54 | 14.10 | 322.73 | 0.3959 | 740.0 | 667.3 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 12.61 | 252.10 | 12.65 | 327.35 | 0.3979 | 743.0 | 678.0 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 13.11 | 251.65 | 12.21 | 328.94 | 0.4009 | 768.0 | 582.8 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 13.29 | 251.44 | 12.00 | 329.62 | 0.4017 | 675.0 | 579.7 | |
| 0.00 | 2.35 | 0.00 | 1.30 | 16.72 | 250.53 | 11.08 | 335.33 | 0.4430 | -642.0 | -462.8 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 16.10 | 250.46 | 11.02 | 334.85 | 0.4337 | -614.0 | -459.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 12.05 | 249.95 | 10.50 | 331.27 | 0.3725 | 806.0 | 675.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 15.60 | 250.08 | 10.64 | 335.10 | 0.4242 | -685.0 | -627.0 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 12.40 | 249.87 | 10.42 | 331.90 | 0.3768 | 751.0 | 550.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.18 | 248.80 | 9.36 | 332.86 | 0.3512 | 786.0 | 663.3 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 11.96 | 248.58 | 9.14 | 334.40 | 0.3611 | 846.0 | 735.6 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 12.18 | 248.37 | 8.93 | 335.17 | 0.3629 | 721.0 | 508.1 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 11.83 | 248.21 | 8.76 | 335.17 | 0.3565 | 676.0 | 425.0 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.66 | 247.55 | 8.11 | 336.62 | 0.3497 | 818.0 | 656.3 | |
| 0.00 | 6.54 | 0.00 | 3.45 | 11.99 | 246.55 | 7.10 | 339.60 | 0.3486 | 816.0 | 783.9 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 10.23 | 246.38 | 6.94 | 338.13 | 0.3205 | 820.0 | 715.2 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 10.38 | 246.26 | 6.82 | 338.65 | 0.3222 | 815.0 | 653.9 | |
| 0.00 | 2.88 | 0.00 | 1.52 | 12.08 | 246.21 | 6.77 | 340.58 | 0.3481 | 887.0 | 758.7 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 14.06 | 244.57 | 5.12 | 346.46 | 0.3716 | 558.0 | 447.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 14.28 | 244.02 | 4.57 | 348.00 | 0.3731 | 674.0 | 525.0 | |
| 0.00 | 2.35 | 0.00 | 1.23 | 11.19 | 242.98 | 3.54 | 349.06 | 0.3201 | 924.0 | 588.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 15.43 | 242.43 | 2.98 | 352.52 | 0.3872 | 659.0 | 554.9 | |
| 0.00 | 2.35 | 0.00 | 1.27 | 15.82 | 242.09 | 2.65 | 353.47 | 0.3927 | 723.0 | 583.7 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 11.09 | 241.15 | 1.71 | 354.63 | 0.3141 | 832.0 | 724.2 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 12.16 | 240.92 | 1.47 | 355.64 | 0.3315 | 657.0 | 526.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
