SDO HMI 2014-03-20 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.05 | 102.38 | 24.21 | 101.25 | -10.66 | 295.13 | 60.61 | 261.71 | 0.8667 | -266.8 | -167.8 | |
|
previous
or next observation for the same group /

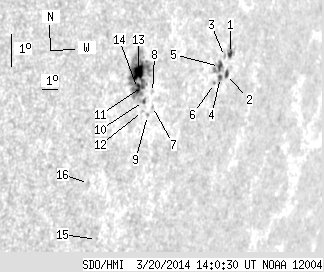

back to the solar disc SDO HMI 2014-03-20 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.35 | 7.58 | 2.66 | 8.56 | -9.48 | 299.23 | 64.71 | 262.85 | 0.9007 | 554.1 | 326.0 | |
| 1.92 | 3.14 | 2.16 | 3.54 | -10.12 | 299.18 | 64.66 | 262.14 | 0.9000 | -2.0 | -82.1 | |
| 0.00 | 1.22 | 0.00 | 1.36 | -9.61 | 298.85 | 64.33 | 262.72 | 0.8978 | 524.0 | 506.4 | |
| 1.31 | 2.96 | 1.45 | 3.29 | -10.25 | 298.80 | 64.29 | 262.01 | 0.8971 | 467.1 | 348.4 | |
| 2.70 | 8.71 | 2.99 | 9.63 | -9.94 | 298.62 | 64.10 | 262.37 | 0.8958 | 597.9 | 439.1 | |
| 0.00 | 1.05 | 0.00 | 1.15 | -10.47 | 298.46 | 63.95 | 261.78 | 0.8945 | 509.0 | 476.6 | |
| 0.00 | 0.87 | 0.00 | 0.85 | -11.56 | 294.79 | 60.28 | 260.69 | 0.8642 | -200.0 | -182.3 | |
| 0.00 | 0.96 | 0.00 | 0.93 | -11.15 | 294.65 | 60.13 | 261.17 | 0.8631 | -226.0 | -134.8 | |
| 0.00 | 1.13 | 0.00 | 1.10 | -11.86 | 294.59 | 60.07 | 260.35 | 0.8624 | -315.0 | -241.6 | |
| 0.52 | 71.97 | 0.50 | 68.26 | -11.47 | 294.21 | 59.69 | 260.81 | 0.8591 | -439.2 | -336.8 | |
| 1.57 | -10.00 | 1.50 | -10.00 | -11.04 | 294.00 | 59.48 | 261.32 | 0.8574 | -446.7 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.67 | -11.77 | 294.25 | 59.74 | 260.46 | 0.8595 | -462.0 | -443.1 | |
| 10.37 | -10.00 | 9.81 | -10.00 | -10.65 | 293.64 | 59.12 | 261.79 | 0.8543 | -829.9 | 999999 | |
| 3.31 | -10.00 | 3.14 | -10.00 | -11.13 | 293.73 | 59.21 | 261.23 | 0.8550 | -778.8 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.49 | -15.80 | 293.13 | 58.61 | 255.73 | 0.8496 | -448.0 | -350.7 | |
| 0.00 | 1.57 | 0.00 | 1.42 | -14.20 | 291.97 | 57.45 | 257.60 | 0.8388 | -432.0 | -393.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
