SDO HMI 2014-03-20 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.77 | 204.05 | 72.73 | 239.92 | -13.38 | 168.03 | -65.93 | 101.56 | 0.9078 | 252.9 | 89.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-20 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

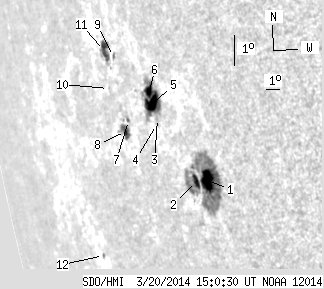

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.25 | 126.50 | 19.02 | 140.30 | -14.60 | 169.82 | -64.15 | 102.84 | 0.8951 | 599.5 | 180.4 | |
| 5.92 | -1.00 | 6.71 | -1.00 | -14.54 | 169.05 | -64.92 | 102.79 | 0.9008 | 101.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.58 | -12.41 | 167.24 | -66.72 | 100.49 | 0.9141 | -323.0 | -337.7 | |
| 0.00 | 0.61 | 0.00 | 0.74 | -12.58 | 167.08 | -66.89 | 100.68 | 0.9152 | -453.0 | -446.0 | |
| 14.72 | 45.48 | 17.96 | 55.56 | -11.94 | 167.09 | -66.87 | 99.98 | 0.9153 | 356.6 | -96.0 | |
| 6.19 | -5.00 | 7.57 | -5.00 | -11.57 | 167.04 | -66.92 | 99.57 | 0.9158 | 304.7 | 999999 | |
| 0.44 | 2.00 | 0.58 | 2.66 | -12.22 | 164.97 | -69.00 | 100.38 | 0.9292 | 168.8 | 1.6 | |
| 6.36 | 10.98 | 8.58 | 14.86 | -12.50 | 164.54 | -69.43 | 100.71 | 0.9318 | -472.0 | -323.9 | |
| 0.00 | 1.57 | 0.00 | 2.11 | -10.24 | 164.72 | -69.25 | 98.27 | 0.9315 | 509.0 | 436.4 | |
| 0.00 | 0.44 | 0.00 | 0.61 | -11.11 | 163.82 | -70.15 | 99.26 | 0.9367 | -397.0 | -387.0 | |
| 8.89 | 13.50 | 12.31 | 18.71 | -9.98 | 164.05 | -69.92 | 98.04 | 0.9357 | 315.9 | 67.0 | |
| 0.00 | 1.66 | 0.00 | 2.79 | -15.78 | 159.78 | -74.19 | 104.40 | 0.9573 | -411.0 | -371.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
