SDO HMI 2014-03-20 17:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.32 | 85.80 | 23.32 | 89.12 | -10.59 | 295.12 | 62.25 | 261.72 | 0.8804 | -303.2 | -162.7 | |
|
previous
or next observation for the same group /

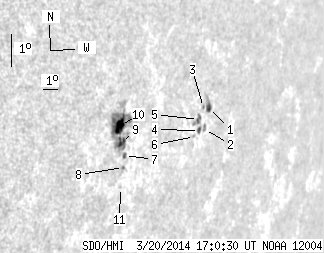

back to the solar disc SDO HMI 2014-03-20 17:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.53 | 7.40 | 3.05 | 8.91 | -9.47 | 299.32 | 66.46 | 262.75 | 0.9133 | 456.4 | 337.5 | |
| 0.00 | 1.39 | 0.00 | 1.68 | -10.14 | 299.28 | 66.42 | 262.01 | 0.9127 | 53.0 | -136.0 | |
| 0.00 | 0.61 | 0.00 | 0.72 | -9.51 | 298.96 | 66.09 | 262.73 | 0.9107 | 443.0 | 480.6 | |
| 1.48 | 2.61 | 1.75 | 3.09 | -10.21 | 298.93 | 66.06 | 261.96 | 0.9102 | 303.0 | 218.5 | |
| 1.66 | 6.45 | 1.95 | 7.57 | -9.90 | 298.73 | 65.87 | 262.31 | 0.9089 | 579.9 | 482.0 | |
| 0.00 | 0.61 | 0.00 | 0.71 | -10.42 | 298.64 | 65.78 | 261.74 | 0.9081 | 493.0 | 452.4 | |
| 1.05 | 65.16 | 1.06 | 64.85 | -11.48 | 294.22 | 61.36 | 260.75 | 0.8734 | -398.6 | -319.7 | |
| 0.00 | 0.96 | 0.00 | 0.97 | -11.84 | 294.29 | 61.43 | 260.34 | 0.8739 | -527.0 | -478.9 | |
| 4.97 | -7.00 | 4.96 | -7.00 | -11.12 | 293.90 | 61.03 | 261.18 | 0.8708 | -615.1 | 999999 | |
| 10.63 | -7.00 | 10.55 | -7.00 | -10.63 | 293.67 | 60.80 | 261.75 | 0.8689 | -777.3 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.62 | -12.44 | 294.34 | 61.47 | 259.65 | 0.8742 | -427.0 | -375.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
