SDO HMI 2014-03-20 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.31 | 79.88 | 24.19 | 86.12 | -10.58 | 295.16 | 63.40 | 261.67 | 0.8895 | -283.0 | -152.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-20 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

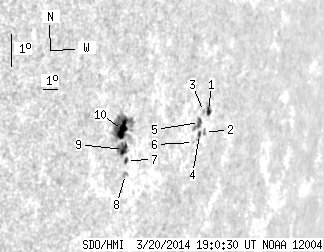

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.44 | 4.88 | 3.08 | 6.15 | -9.40 | 299.37 | 67.61 | 262.74 | 0.9212 | 421.5 | 362.3 | |
| 0.00 | 2.09 | 0.00 | 2.63 | -10.07 | 299.33 | 67.57 | 262.02 | 0.9207 | 1.0 | -105.1 | |
| 0.00 | 1.05 | 0.00 | 1.30 | -9.47 | 299.00 | 67.24 | 262.69 | 0.9187 | 332.0 | 387.0 | |
| 0.96 | 3.05 | 1.19 | 3.77 | -10.17 | 298.97 | 67.21 | 261.93 | 0.9182 | 254.3 | 267.0 | |
| 2.18 | 6.62 | 2.68 | 8.12 | -9.83 | 298.83 | 67.07 | 262.32 | 0.9174 | 541.8 | 477.3 | |
| 0.00 | 0.52 | 0.00 | 0.64 | -10.46 | 298.62 | 66.86 | 261.64 | 0.9157 | 460.0 | 446.7 | |
| 0.96 | 2.26 | 1.00 | 2.37 | -11.48 | 294.23 | 62.47 | 260.71 | 0.8825 | -317.0 | -227.6 | |
| 0.00 | 2.79 | 0.00 | 2.92 | -11.90 | 294.33 | 62.57 | 260.24 | 0.8832 | -563.0 | -433.7 | |
| 4.88 | 56.62 | 5.05 | 58.22 | -11.18 | 293.92 | 62.16 | 261.06 | 0.8800 | -587.5 | -303.9 | |
| 10.89 | -9.00 | 11.19 | -9.00 | -10.61 | 293.64 | 61.88 | 261.73 | 0.8780 | -712.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
