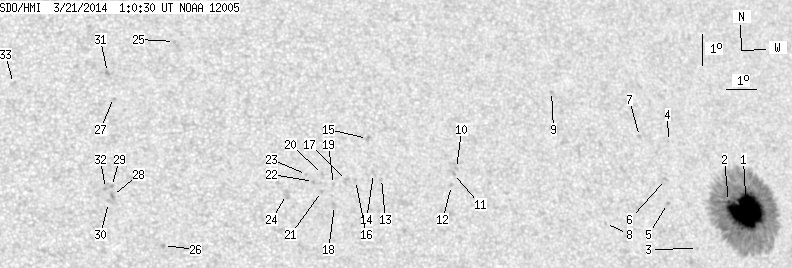

SDO HMI 2014-03-21 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.91 | 475.29 | 45.77 | 298.69 | 12.07 | 261.22 | 32.77 | 300.71 | 0.6153 | -477.8 | -265.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-21 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.04 | 424.77 | 45.22 | 270.13 | 12.01 | 262.56 | 34.11 | 299.14 | 0.6302 | -1064.7 | -347.9 | |
| 0.87 | -1.00 | 0.55 | -1.00 | 12.28 | 261.94 | 33.49 | 299.98 | 0.6246 | -913.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 10.72 | 260.60 | 32.15 | 298.72 | 0.5984 | -572.0 | -457.6 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 14.06 | 260.02 | 31.57 | 303.98 | 0.6147 | -544.0 | -440.1 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 12.07 | 259.70 | 31.24 | 301.42 | 0.5967 | -765.0 | -669.4 | |
| 0.00 | 1.83 | 0.00 | 1.13 | 12.83 | 259.73 | 31.28 | 302.49 | 0.6024 | -624.0 | -563.1 | |
| 0.00 | 1.74 | 0.00 | 1.08 | 14.15 | 258.99 | 30.54 | 304.99 | 0.6036 | -630.0 | -483.1 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 11.30 | 257.42 | 28.96 | 302.24 | 0.5636 | -471.0 | -357.0 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 15.41 | 256.06 | 27.61 | 309.50 | 0.5813 | -718.0 | -556.7 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 12.75 | 252.48 | 24.03 | 309.57 | 0.5173 | 592.0 | 500.4 | |
| 0.00 | 1.74 | 0.00 | 1.01 | 12.59 | 252.37 | 23.91 | 309.46 | 0.5144 | 681.0 | 601.7 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 12.21 | 252.26 | 23.81 | 308.99 | 0.5096 | 675.0 | 601.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 12.32 | 249.95 | 21.50 | 312.06 | 0.4842 | 563.0 | 410.5 | |
| 0.00 | 2.35 | 0.00 | 1.33 | 12.46 | 249.70 | 21.25 | 312.62 | 0.4829 | 529.0 | 472.8 | |
| 0.00 | 2.70 | 0.00 | 1.54 | 13.57 | 249.60 | 21.15 | 314.43 | 0.4932 | 627.0 | 473.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 12.21 | 249.09 | 20.64 | 313.07 | 0.4735 | 577.0 | 464.8 | |
| 0.00 | 3.31 | 0.00 | 1.86 | 12.20 | 248.80 | 20.34 | 313.46 | 0.4700 | 629.0 | 399.6 | |
| 0.00 | 2.96 | 0.00 | 1.65 | 11.39 | 248.34 | 19.89 | 312.81 | 0.4565 | 695.0 | 584.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 12.06 | 248.36 | 19.91 | 313.85 | 0.4637 | 700.0 | 572.8 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 12.36 | 248.03 | 19.57 | 314.81 | 0.4632 | 597.0 | 512.5 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 11.82 | 247.95 | 19.50 | 314.07 | 0.4566 | 779.0 | 644.3 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 12.12 | 247.72 | 19.26 | 314.90 | 0.4573 | 744.0 | 577.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 12.34 | 247.51 | 19.05 | 315.55 | 0.4573 | 723.0 | 606.6 | |
| 0.00 | 5.58 | 0.00 | 3.08 | 11.68 | 246.81 | 18.36 | 315.57 | 0.4425 | 749.0 | 584.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 16.46 | 243.58 | 15.12 | 327.62 | 0.4691 | 651.0 | 630.6 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 9.94 | 242.81 | 14.36 | 319.71 | 0.3794 | 898.0 | 741.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 14.58 | 241.49 | 13.04 | 329.13 | 0.4274 | 527.0 | 595.1 | |
| 0.00 | 2.70 | 0.00 | 1.45 | 11.46 | 241.29 | 12.84 | 325.28 | 0.3840 | 846.0 | 693.9 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 11.75 | 241.27 | 12.82 | 325.74 | 0.3876 | 798.0 | 687.2 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 11.24 | 241.16 | 12.70 | 325.23 | 0.3798 | 468.0 | 528.8 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 15.38 | 241.35 | 12.90 | 330.36 | 0.4372 | 695.0 | 652.8 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 11.68 | 241.08 | 12.63 | 326.04 | 0.3850 | 891.0 | 691.1 | |
| 0.00 | 2.44 | 0.00 | 1.32 | 14.96 | 238.36 | 9.91 | 335.96 | 0.4099 | 658.0 | 534.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
