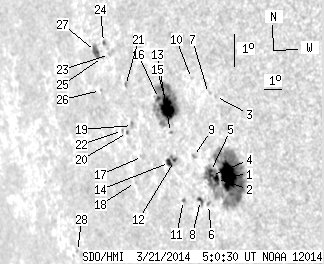

SDO HMI 2014-03-21 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.64 | 262.61 | 58.91 | 238.60 | -13.52 | 168.70 | -57.56 | 101.63 | 0.8395 | 516.0 | 222.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-21 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.35 | 149.58 | 24.74 | 130.92 | -14.50 | 170.26 | -56.00 | 102.80 | 0.8252 | 910.3 | 332.0 | |
| 2.62 | -1.00 | 2.32 | -1.00 | -14.53 | 169.58 | -56.68 | 102.81 | 0.8317 | 395.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.83 | -12.11 | 170.39 | -55.87 | 99.89 | 0.8237 | 503.0 | 414.7 | |
| 1.31 | -1.00 | 1.17 | -1.00 | -14.41 | 169.34 | -56.92 | 102.67 | 0.8339 | 371.6 | 999999 | |
| 1.40 | -1.00 | 1.25 | -1.00 | -14.29 | 169.33 | -56.93 | 102.52 | 0.8340 | 418.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 1.11 | -15.25 | 168.82 | -57.44 | 103.66 | 0.8389 | 457.0 | 418.9 | |
| 0.00 | 0.35 | 0.00 | 0.31 | -11.98 | 170.05 | -56.21 | 99.74 | 0.8271 | 463.0 | 488.8 | |
| 1.57 | 4.01 | 1.43 | 3.67 | -15.08 | 168.43 | -57.83 | 103.45 | 0.8425 | 33.2 | -0.9 | |
| 0.00 | 1.57 | 0.00 | 1.43 | -13.75 | 168.57 | -57.69 | 101.87 | 0.8410 | 224.0 | 212.4 | |
| 0.00 | 0.87 | 0.00 | 0.78 | -11.45 | 169.27 | -56.99 | 99.11 | 0.8345 | 509.0 | 462.9 | |
| 0.44 | 1.57 | 0.41 | 1.47 | -14.99 | 167.46 | -58.80 | 103.31 | 0.8512 | 335.0 | 201.3 | |
| 1.13 | 7.94 | 1.06 | 7.48 | -13.76 | 167.45 | -58.81 | 101.87 | 0.8512 | -725.2 | -564.0 | |
| 0.00 | 1.05 | 0.00 | 0.98 | -12.91 | 167.54 | -58.72 | 100.87 | 0.8503 | 362.0 | 224.8 | |
| 2.70 | -12.00 | 2.56 | -12.00 | -13.79 | 167.13 | -59.13 | 101.90 | 0.8539 | -573.6 | 999999 | |
| 18.93 | 70.73 | 17.66 | 66.19 | -12.19 | 167.63 | -58.63 | 100.02 | 0.8496 | 799.7 | 184.0 | |
| 1.48 | -15.00 | 1.40 | -15.00 | -11.85 | 167.22 | -59.04 | 99.62 | 0.8533 | 138.6 | 999999 | |
| 0.00 | 2.97 | 0.00 | 2.93 | -13.44 | 165.61 | -60.65 | 101.50 | 0.8671 | -239.0 | -290.3 | |
| 0.00 | 0.70 | 0.00 | 0.71 | -14.16 | 164.84 | -61.42 | 102.33 | 0.8735 | -390.0 | -347.2 | |
| 0.00 | 2.44 | 0.00 | 2.43 | -12.47 | 165.38 | -60.88 | 100.38 | 0.8692 | -153.0 | -169.3 | |
| 0.00 | 1.31 | 0.00 | 1.32 | -12.65 | 164.99 | -61.27 | 100.59 | 0.8724 | -424.0 | -544.9 | |
| 0.00 | 1.48 | 0.00 | 1.47 | -11.26 | 165.40 | -60.86 | 98.98 | 0.8692 | -392.0 | -308.4 | |
| 0.00 | 0.87 | 0.00 | 0.89 | -12.55 | 164.71 | -61.55 | 100.49 | 0.8748 | -467.0 | -416.2 | |
| 0.00 | 1.22 | 0.00 | 1.24 | -10.25 | 164.74 | -61.52 | 97.85 | 0.8751 | 587.0 | 493.6 | |
| 0.52 | 1.66 | 0.54 | 1.70 | -9.86 | 164.48 | -61.78 | 97.41 | 0.8774 | 456.8 | 479.0 | |
| 0.00 | 0.61 | 0.00 | 0.63 | -10.29 | 164.27 | -61.99 | 97.92 | 0.8790 | 375.0 | 335.0 | |
| 0.00 | 1.22 | 0.00 | 1.28 | -11.24 | 163.79 | -62.47 | 99.02 | 0.8826 | -400.0 | -286.9 | |
| 4.19 | 7.06 | 4.37 | 7.37 | -10.06 | 163.89 | -62.37 | 97.68 | 0.8822 | 343.6 | 198.3 | |
| 0.00 | 1.22 | 0.00 | 1.46 | -15.74 | 159.84 | -66.41 | 104.14 | 0.9114 | -587.0 | -559.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
