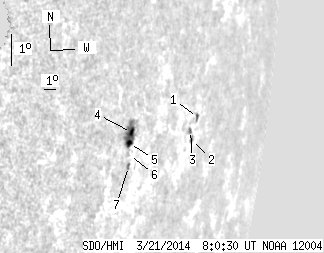

SDO HMI 2014-03-21 08:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.95 | 30.79 | 14.58 | 44.59 | -10.35 | 295.51 | 70.89 | 261.48 | 0.9403 | -302.0 | -245.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-21 08:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.22 | 2.70 | 2.21 | 4.90 | -9.27 | 299.68 | 75.06 | 262.31 | 0.9634 | 66.5 | 141.2 | |
| 0.79 | 2.62 | 1.40 | 4.67 | -9.97 | 299.41 | 74.79 | 261.60 | 0.9619 | 61.0 | 38.3 | |
| 0.87 | 2.53 | 1.53 | 4.44 | -9.73 | 299.14 | 74.52 | 261.88 | 0.9607 | 371.1 | 252.7 | |
| 3.23 | 20.06 | 4.32 | 26.71 | -10.41 | 293.69 | 69.07 | 261.55 | 0.9303 | -500.8 | -411.4 | |
| 2.97 | -4.00 | 3.95 | -4.00 | -10.75 | 293.68 | 69.06 | 261.19 | 0.9301 | -598.5 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.82 | -11.09 | 293.86 | 69.24 | 260.80 | 0.9311 | -523.0 | -466.4 | |
| 0.87 | 2.27 | 1.17 | 3.05 | -11.42 | 293.94 | 69.32 | 260.45 | 0.9315 | -388.6 | -334.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
