SDO HMI 2014-03-21 09:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.64 | 28.61 | 13.01 | 42.53 | -10.37 | 295.46 | 71.39 | 261.41 | 0.9432 | -287.6 | -208.4 | |
|
previous
or next observation for the same group /

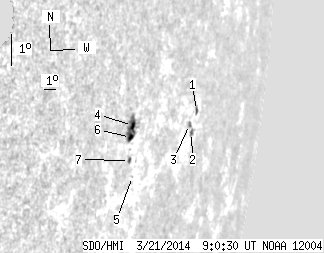

back to the solar disc SDO HMI 2014-03-21 09:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 2.18 | 1.47 | 4.08 | -9.24 | 299.60 | 75.52 | 262.29 | 0.9656 | 13.3 | 178.8 | |
| 0.96 | 2.79 | 1.77 | 5.17 | -9.93 | 299.43 | 75.36 | 261.60 | 0.9646 | 54.5 | 6.4 | |
| 0.79 | 2.18 | 1.42 | 3.95 | -9.73 | 299.06 | 74.99 | 261.83 | 0.9630 | 386.7 | 271.6 | |
| 2.53 | 18.67 | 3.46 | 25.46 | -10.38 | 293.65 | 69.58 | 261.54 | 0.9335 | -492.3 | -357.1 | |
| 0.00 | 0.61 | 0.00 | 0.86 | -11.85 | 294.44 | 70.37 | 259.93 | 0.9378 | -348.0 | -291.7 | |
| 2.70 | -4.00 | 3.69 | -4.00 | -10.75 | 293.66 | 69.58 | 261.15 | 0.9334 | -599.3 | 999999 | |
| 0.87 | 2.18 | 1.20 | 3.01 | -11.42 | 293.92 | 69.85 | 260.42 | 0.9348 | -359.9 | -297.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
