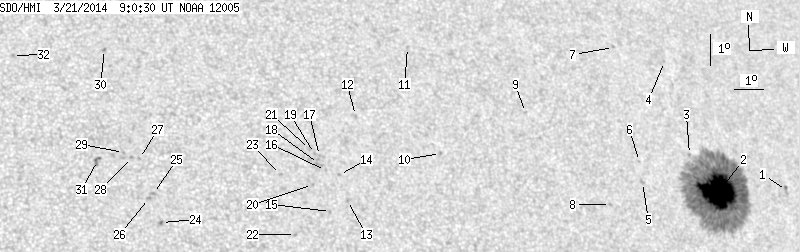

SDO HMI 2014-03-21 09:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.94 | 431.09 | 44.47 | 286.73 | 11.99 | 261.43 | 37.36 | 297.24 | 0.6676 | -652.1 | -300.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-21 09:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.49 | 0.00 | 2.46 | 12.22 | 265.36 | 41.29 | 294.93 | 0.7134 | -615.0 | -454.1 | |
| 65.94 | 386.68 | 44.47 | 260.56 | 11.97 | 262.59 | 38.52 | 296.15 | 0.6811 | -1311.5 | -360.2 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 13.07 | 261.66 | 37.59 | 298.19 | 0.6765 | -518.0 | -390.9 | |
| 0.00 | 0.35 | 0.00 | 0.24 | 16.01 | 261.28 | 37.20 | 302.27 | 0.6897 | -543.0 | -480.8 | |
| 0.00 | 2.01 | 0.00 | 1.30 | 12.03 | 259.69 | 35.62 | 298.08 | 0.6479 | -816.0 | -610.8 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 12.70 | 259.68 | 35.61 | 299.00 | 0.6517 | -635.0 | -539.6 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 16.32 | 259.37 | 35.30 | 304.02 | 0.6714 | -546.0 | -425.7 | |
| 0.00 | 1.13 | 0.00 | 0.72 | 11.25 | 258.38 | 34.31 | 297.88 | 0.6277 | -759.0 | -580.5 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 13.97 | 255.67 | 31.60 | 303.80 | 0.6142 | -564.0 | -459.0 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 12.47 | 252.45 | 28.38 | 304.51 | 0.5653 | 706.0 | 595.8 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 15.81 | 251.75 | 27.68 | 309.95 | 0.5852 | -537.0 | -475.5 | |
| 0.00 | 1.74 | 0.00 | 1.03 | 13.52 | 249.65 | 25.58 | 308.92 | 0.5416 | 661.0 | 491.1 | |
| 0.00 | 1.48 | 0.00 | 0.85 | 10.80 | 249.09 | 25.02 | 305.33 | 0.5113 | 712.0 | 531.8 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 11.61 | 248.90 | 24.83 | 306.84 | 0.5160 | 663.0 | 531.1 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 10.43 | 248.49 | 24.42 | 305.39 | 0.5008 | 834.0 | 686.2 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 11.71 | 248.44 | 24.37 | 307.52 | 0.5114 | 613.0 | 512.0 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 12.18 | 248.29 | 24.21 | 308.42 | 0.5138 | 624.0 | 552.3 | |
| 0.00 | 3.66 | 0.00 | 2.11 | 11.92 | 248.23 | 24.15 | 308.09 | 0.5108 | 684.0 | 649.9 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 12.23 | 248.12 | 24.05 | 308.70 | 0.5124 | 691.0 | 574.7 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 11.25 | 247.96 | 23.89 | 307.33 | 0.5016 | 703.0 | 633.5 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 12.35 | 247.97 | 23.90 | 309.06 | 0.5117 | 546.0 | 465.1 | |
| 0.00 | 1.57 | 0.00 | 0.88 | 9.65 | 247.27 | 23.20 | 305.49 | 0.4788 | 758.0 | 605.3 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 11.51 | 246.92 | 22.85 | 309.00 | 0.4916 | 806.0 | 639.2 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 9.83 | 242.93 | 18.85 | 311.64 | 0.4279 | 976.0 | 821.9 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 10.73 | 242.73 | 18.65 | 313.50 | 0.4351 | 846.0 | 759.2 | |
| 0.00 | 1.83 | 0.00 | 1.00 | 10.57 | 242.56 | 18.48 | 313.49 | 0.4314 | 915.0 | 745.9 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 11.81 | 242.35 | 18.28 | 315.88 | 0.4428 | 806.0 | 603.3 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 11.84 | 242.10 | 18.02 | 316.31 | 0.4403 | 788.0 | 645.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 11.98 | 241.85 | 17.78 | 316.94 | 0.4393 | 624.0 | 503.4 | |
| 0.00 | 1.66 | 0.00 | 0.93 | 15.26 | 241.49 | 17.42 | 322.28 | 0.4740 | 969.0 | 790.9 | |
| 0.00 | 3.93 | 0.00 | 2.15 | 11.70 | 241.00 | 16.93 | 317.90 | 0.4270 | -737.0 | -641.5 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 14.96 | 238.51 | 14.44 | 326.96 | 0.4436 | 458.0 | 461.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
