SDO HMI 2014-03-21 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.10 | 318.34 | 51.91 | 265.32 | -13.52 | 168.95 | -54.03 | 101.70 | 0.8056 | 470.2 | 197.2 | |
|
previous
or next observation for the same group /

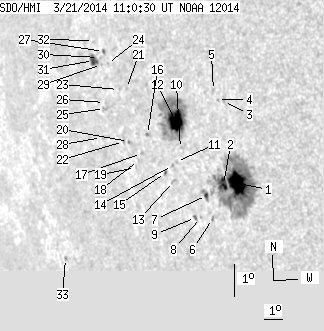

back to the solar disc SDO HMI 2014-03-21 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.43 | 184.02 | 21.31 | 148.79 | -14.45 | 170.41 | -52.57 | 102.90 | 0.7911 | 865.4 | 286.8 | |
| 7.59 | -1.00 | 6.21 | -1.00 | -14.42 | 169.70 | -53.27 | 102.81 | 0.7984 | 451.6 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.84 | -11.97 | 170.47 | -52.51 | 99.74 | 0.7898 | 606.0 | 495.3 | |
| 0.00 | 1.05 | 0.00 | 0.85 | -11.88 | 170.19 | -52.79 | 99.63 | 0.7927 | 565.0 | 455.9 | |
| 0.00 | 1.57 | 0.00 | 1.27 | -11.59 | 170.07 | -52.91 | 99.27 | 0.7940 | 462.0 | 391.1 | |
| 0.00 | 0.87 | 0.00 | 0.73 | -15.37 | 168.78 | -54.20 | 103.95 | 0.8081 | 369.0 | 298.8 | |
| 1.57 | 5.67 | 1.31 | 4.75 | -14.66 | 168.72 | -54.25 | 103.07 | 0.8083 | 58.6 | -127.0 | |
| 0.00 | 0.44 | 0.00 | 0.37 | -15.28 | 168.17 | -54.81 | 103.81 | 0.8141 | 293.0 | 297.6 | |
| 0.61 | 2.09 | 0.52 | 1.79 | -15.25 | 167.91 | -55.07 | 103.77 | 0.8166 | 275.1 | 154.4 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -13.14 | 167.87 | -55.11 | 101.17 | 0.8164 | 434.0 | 357.5 | |
| 0.00 | 1.22 | 0.00 | 1.05 | -13.50 | 167.53 | -55.45 | 101.61 | 0.8198 | -476.0 | -430.1 | |
| 20.76 | 91.66 | 17.70 | 78.42 | -12.29 | 167.88 | -55.10 | 100.13 | 0.8163 | 793.5 | 144.6 | |
| 0.00 | 2.18 | 0.00 | 1.89 | -14.07 | 167.15 | -55.83 | 102.30 | 0.8235 | -657.0 | -567.8 | |
| 0.00 | 1.05 | 0.00 | 0.91 | -13.60 | 167.27 | -55.71 | 101.72 | 0.8223 | -601.0 | -536.1 | |
| 0.00 | 1.31 | 0.00 | 1.15 | -13.77 | 166.82 | -56.15 | 101.92 | 0.8266 | 218.0 | 213.7 | |
| 0.00 | 2.01 | 0.00 | 1.78 | -12.55 | 166.25 | -56.73 | 100.45 | 0.8320 | 446.0 | 349.3 | |
| 0.00 | 0.70 | 0.00 | 0.63 | -13.08 | 165.72 | -57.25 | 101.08 | 0.8370 | -641.0 | -566.1 | |
| 0.00 | 0.87 | 0.00 | 0.79 | -13.27 | 165.48 | -57.50 | 101.30 | 0.8392 | -460.0 | -488.0 | |
| 0.00 | 0.87 | 0.00 | 0.79 | -13.45 | 165.24 | -57.74 | 101.52 | 0.8415 | -436.0 | -445.2 | |
| 0.00 | 0.70 | 0.00 | 0.64 | -12.65 | 165.13 | -57.85 | 100.57 | 0.8425 | -526.0 | -456.4 | |
| 0.00 | 0.87 | 0.00 | 0.79 | -11.08 | 165.54 | -57.43 | 98.69 | 0.8388 | -155.0 | -118.0 | |
| 0.00 | 0.96 | 0.00 | 0.88 | -12.62 | 164.85 | -58.13 | 100.54 | 0.8450 | -470.0 | -318.2 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -11.07 | 165.09 | -57.89 | 98.68 | 0.8430 | 421.0 | 369.7 | |
| 0.00 | 0.87 | 0.00 | 0.81 | -10.24 | 164.71 | -58.27 | 97.71 | 0.8468 | 512.0 | 421.2 | |
| 0.00 | 2.44 | 0.00 | 2.29 | -11.54 | 164.11 | -58.86 | 99.27 | 0.8518 | -607.0 | -483.6 | |
| 0.00 | 0.70 | 0.00 | 0.65 | -11.37 | 164.17 | -58.81 | 99.06 | 0.8513 | -470.0 | -501.1 | |
| 0.52 | 1.57 | 0.49 | 1.46 | -9.86 | 164.58 | -58.40 | 97.27 | 0.8480 | 403.3 | 424.2 | |
| 0.00 | 0.70 | 0.00 | 0.66 | -12.37 | 163.63 | -59.34 | 100.26 | 0.8560 | -430.0 | -440.2 | |
| 0.00 | 0.70 | 0.00 | 0.65 | -10.23 | 164.36 | -58.62 | 97.72 | 0.8500 | 370.0 | 317.9 | |
| 0.00 | 0.87 | 0.00 | 0.82 | -10.01 | 164.25 | -58.73 | 97.46 | 0.8510 | 492.0 | 481.7 | |
| 4.62 | 6.80 | 4.37 | 6.43 | -10.07 | 163.93 | -59.05 | 97.54 | 0.8538 | 445.1 | 239.5 | |
| 0.00 | 0.52 | 0.00 | 0.49 | -9.48 | 164.10 | -58.87 | 96.85 | 0.8525 | 387.0 | 379.3 | |
| 0.00 | 1.05 | 0.00 | 1.12 | -15.67 | 159.78 | -63.19 | 104.06 | 0.8878 | -598.0 | -504.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
