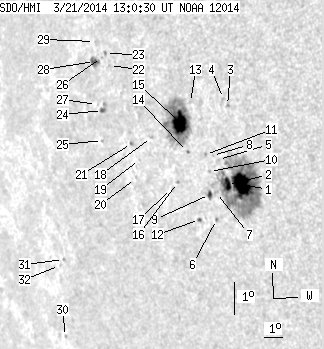

SDO HMI 2014-03-21 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.40 | 302.65 | 53.22 | 246.19 | -13.51 | 168.91 | -52.97 | 101.72 | 0.7947 | 474.9 | 223.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-21 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.60 | 169.85 | 22.51 | 133.90 | -14.44 | 170.44 | -51.45 | 102.94 | 0.7793 | 861.5 | 330.7 | |
| 7.41 | -1.00 | 5.92 | -1.00 | -14.37 | 169.76 | -52.13 | 102.82 | 0.7865 | 448.1 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.82 | -12.04 | 170.46 | -51.42 | 99.85 | 0.7783 | 632.0 | 601.6 | |
| 0.00 | 1.31 | 0.00 | 1.03 | -11.81 | 170.32 | -51.56 | 99.56 | 0.7797 | 633.0 | 531.4 | |
| 0.00 | 1.13 | 0.00 | 0.91 | -13.59 | 169.55 | -52.33 | 101.81 | 0.7883 | -204.0 | -116.0 | |
| 0.00 | 1.31 | 0.00 | 1.07 | -15.36 | 168.85 | -53.03 | 104.01 | 0.7963 | 414.0 | 357.9 | |
| 0.00 | 1.48 | 0.00 | 1.20 | -14.56 | 169.13 | -52.75 | 103.02 | 0.7930 | 265.0 | 153.1 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -13.44 | 169.30 | -52.58 | 101.62 | 0.7909 | 180.0 | 139.7 | |
| 2.01 | 3.75 | 1.64 | 3.06 | -14.58 | 168.76 | -53.12 | 103.03 | 0.7968 | 104.2 | 19.0 | |
| 0.00 | 0.78 | 0.00 | 0.64 | -13.90 | 169.00 | -52.89 | 102.19 | 0.7942 | 209.0 | 171.9 | |
| 0.00 | 0.96 | 0.00 | 0.78 | -13.38 | 168.96 | -52.92 | 101.53 | 0.7944 | -348.0 | -289.4 | |
| 0.61 | 1.57 | 0.51 | 1.30 | -15.27 | 167.99 | -53.89 | 103.86 | 0.8050 | 298.0 | 219.3 | |
| 0.00 | 0.61 | 0.00 | 0.50 | -11.77 | 168.67 | -53.21 | 99.50 | 0.7971 | 205.0 | 202.0 | |
| 0.00 | 1.05 | 0.00 | 0.87 | -13.21 | 168.08 | -53.80 | 101.28 | 0.8033 | 361.0 | 314.3 | |
| 21.89 | 92.77 | 18.16 | 77.20 | -12.31 | 167.95 | -53.93 | 100.16 | 0.8046 | 788.1 | 154.0 | |
| 0.00 | 1.13 | 0.00 | 0.96 | -14.07 | 167.26 | -54.62 | 102.33 | 0.8118 | -689.0 | -586.5 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -14.22 | 166.89 | -55.00 | 102.50 | 0.8155 | -432.0 | -418.8 | |
| 0.00 | 1.22 | 0.00 | 1.05 | -12.61 | 166.36 | -55.52 | 100.52 | 0.8204 | 451.0 | 302.4 | |
| 0.00 | 0.61 | 0.00 | 0.54 | -13.19 | 165.50 | -56.38 | 101.23 | 0.8288 | -538.0 | -523.4 | |
| 0.00 | 0.35 | 0.00 | 0.31 | -13.73 | 165.08 | -56.81 | 101.87 | 0.8328 | -502.0 | -474.8 | |
| 0.00 | 1.31 | 0.00 | 1.16 | -12.68 | 165.23 | -56.65 | 100.60 | 0.8313 | -443.0 | -487.7 | |
| 0.00 | 0.70 | 0.00 | 0.63 | -10.26 | 164.76 | -57.13 | 97.71 | 0.8361 | 460.0 | 450.5 | |
| 0.00 | 1.13 | 0.00 | 1.02 | -9.89 | 164.63 | -57.25 | 97.26 | 0.8374 | 441.0 | 437.5 | |
| 1.31 | 5.41 | 1.20 | 4.94 | -11.55 | 163.96 | -57.92 | 99.26 | 0.8432 | -550.4 | -518.5 | |
| 0.00 | 0.87 | 0.00 | 0.81 | -12.43 | 163.66 | -58.22 | 100.31 | 0.8459 | -519.0 | -475.4 | |
| 0.00 | 0.44 | 0.00 | 0.40 | -9.98 | 164.38 | -57.50 | 97.38 | 0.8397 | 579.0 | 516.2 | |
| 0.00 | 0.52 | 0.00 | 0.48 | -11.34 | 163.68 | -58.20 | 99.01 | 0.8458 | -463.0 | -374.0 | |
| 3.57 | 6.89 | 3.28 | 6.31 | -10.06 | 163.96 | -57.92 | 97.49 | 0.8436 | 448.6 | 361.0 | |
| 0.00 | 0.70 | 0.00 | 0.64 | -9.47 | 164.12 | -57.76 | 96.79 | 0.8423 | 362.0 | 314.2 | |
| 0.00 | 0.96 | 0.00 | 1.03 | -17.92 | 158.59 | -63.29 | 106.60 | 0.8888 | -447.0 | -378.9 | |
| 0.00 | 1.05 | 0.00 | 1.08 | -15.67 | 159.79 | -62.09 | 104.06 | 0.8791 | -590.0 | -542.8 | |
| 0.00 | 0.52 | 0.00 | 0.54 | -15.81 | 159.44 | -62.44 | 104.23 | 0.8819 | -365.0 | -408.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
