group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12005	59.71	377.49	44.38	277.10	11.96	261.85	43.82	293.45	0.7393	-567.9	-299.2

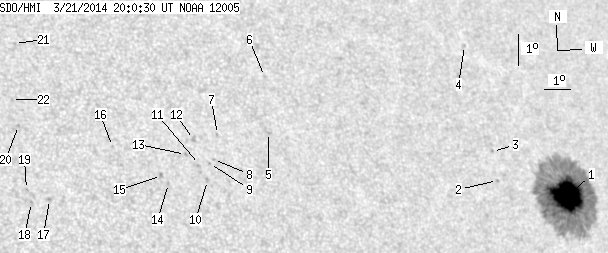

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-03-21 20:00:30 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	59.71	352.39	44.38	261.63	11.93	262.63	44.60	292.90	0.7481	-1042.4	-346.5
2	0.00	1.05	0.00	0.74	12.16	259.73	41.71	294.62	0.7177	-603.0	-545.3
3	0.00	1.05	0.00	0.75	13.07	259.71	41.68	295.80	0.7218	-632.0	-534.4
4	0.00	1.31	0.00	0.95	16.42	259.34	41.32	300.19	0.7350	-540.0	-430.9
5	0.00	1.13	0.00	0.72	13.01	251.03	33.01	301.33	0.6236	604.0	480.0
6	0.00	1.05	0.00	0.67	14.80	251.18	33.15	303.67	0.6376	-668.0	-482.7
7	0.00	0.87	0.00	0.54	12.82	249.16	31.13	302.57	0.6004	574.0	437.7
8	0.00	0.87	0.00	0.53	12.02	248.91	30.88	301.61	0.5917	556.0	460.9
9	0.00	0.78	0.00	0.48	11.88	248.75	30.72	301.54	0.5888	687.0	606.8
10	0.00	1.83	0.00	1.11	11.34	248.61	30.58	300.85	0.5833	745.0	614.5
11	0.00	0.52	0.00	0.32	11.83	248.38	30.36	301.77	0.5841	560.0	573.7
12	0.00	2.70	0.00	1.65	12.61	248.27	30.25	303.01	0.5885	716.0	561.9
13	0.00	1.13	0.00	0.69	12.11	247.92	29.90	302.59	0.5807	749.0	673.8
14	0.00	1.31	0.00	0.78	11.16	247.21	29.19	301.78	0.5651	748.0	571.5
15	0.00	2.00	0.00	1.20	11.39	247.00	28.97	302.34	0.5642	919.0	666.1
16	0.00	0.70	0.00	0.41	12.21	245.39	27.37	305.10	0.5513	694.0	619.1
17	0.00	1.57	0.00	0.90	10.42	243.07	25.05	304.68	0.5084	841.0	659.9
18	0.00	1.13	0.00	0.65	10.29	242.46	24.43	305.15	0.4998	707.0	616.3
19	0.00	1.22	0.00	0.70	10.69	242.33	24.30	305.96	0.5016	609.0	570.6
20	0.00	1.05	0.00	0.61	12.70	242.25	24.23	309.22	0.5188	794.0	672.3
21	0.00	0.87	0.00	0.51	15.33	242.42	24.39	312.85	0.5454	575.0	521.0
22	0.00	0.96	0.00	0.56	13.52	242.10	24.08	310.63	0.5247	502.0	414.7

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
