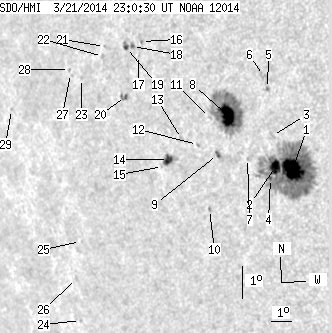

SDO HMI 2014-03-21 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.52 | 370.57 | 51.26 | 268.99 | -13.55 | 169.05 | -47.32 | 102.08 | 0.7326 | 602.8 | 302.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-21 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.77 | 220.94 | 20.29 | 156.23 | -14.36 | 170.73 | -45.64 | 103.29 | 0.7141 | 1136.7 | 348.0 | |
| 10.46 | -1.00 | 7.47 | -1.00 | -14.21 | 170.01 | -46.36 | 103.00 | 0.7224 | 713.2 | 999999 | |
| 0.00 | 2.88 | 0.00 | 2.05 | -13.27 | 170.12 | -46.25 | 101.72 | 0.7204 | -157.0 | -170.5 | |
| 0.87 | -1.00 | 0.63 | -1.00 | -14.54 | 169.69 | -46.68 | 103.44 | 0.7264 | 298.8 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.30 | -11.86 | 170.23 | -46.14 | 99.75 | 0.7184 | 740.0 | 663.5 | |
| 0.00 | 4.10 | 0.00 | 2.91 | -11.46 | 170.14 | -46.23 | 99.19 | 0.7193 | 706.0 | 580.6 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -13.86 | 168.83 | -47.53 | 102.43 | 0.7357 | 347.0 | 261.0 | |
| 20.05 | 96.17 | 14.75 | 70.72 | -12.50 | 168.27 | -48.10 | 100.55 | 0.7415 | 1015.5 | 380.7 | |
| 1.40 | 2.96 | 1.04 | 2.21 | -13.62 | 167.51 | -48.86 | 102.01 | 0.7506 | 508.0 | 323.5 | |
| 0.00 | 1.31 | 0.00 | 0.99 | -15.22 | 166.65 | -49.72 | 104.06 | 0.7612 | 467.0 | 363.9 | |
| 0.00 | 1.40 | 0.00 | 1.04 | -12.49 | 167.44 | -48.93 | 100.50 | 0.7509 | 243.0 | 143.4 | |
| 0.00 | 1.22 | 0.00 | 0.93 | -13.24 | 166.67 | -49.70 | 101.46 | 0.7598 | -709.0 | -626.6 | |
| 0.00 | 2.01 | 0.00 | 1.54 | -12.99 | 165.97 | -50.40 | 101.11 | 0.7674 | -359.0 | -380.8 | |
| 5.75 | 10.64 | 4.50 | 8.31 | -13.55 | 165.17 | -51.20 | 101.80 | 0.7763 | -786.3 | -517.0 | |
| 0.00 | 1.66 | 0.00 | 1.31 | -13.73 | 164.82 | -51.55 | 102.02 | 0.7801 | -302.0 | -445.1 | |
| 0.00 | 1.13 | 0.00 | 0.89 | -9.94 | 164.80 | -51.57 | 97.15 | 0.7799 | 635.0 | 533.9 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -10.34 | 164.56 | -51.81 | 97.66 | 0.7825 | 449.0 | 337.8 | |
| 0.78 | 2.53 | 0.62 | 2.01 | -10.05 | 164.33 | -52.04 | 97.29 | 0.7850 | 663.4 | 494.0 | |
| 1.48 | 4.01 | 1.19 | 3.21 | -10.05 | 164.03 | -52.34 | 97.30 | 0.7881 | 547.5 | 395.9 | |
| 0.96 | 4.27 | 0.77 | 3.46 | -11.49 | 163.62 | -52.75 | 99.14 | 0.7923 | -708.3 | -458.7 | |
| 0.00 | 0.61 | 0.00 | 0.50 | -9.92 | 162.95 | -53.42 | 97.16 | 0.7995 | 604.0 | 536.7 | |
| 0.00 | 1.83 | 0.00 | 1.51 | -10.20 | 162.78 | -53.59 | 97.52 | 0.8012 | 460.0 | 344.1 | |
| 0.00 | 0.52 | 0.00 | 0.44 | -10.74 | 161.54 | -54.83 | 98.22 | 0.8137 | 444.0 | 374.5 | |
| 0.00 | 1.31 | 0.00 | 1.19 | -17.87 | 158.73 | -57.64 | 106.78 | 0.8418 | -596.0 | -438.0 | |
| 0.00 | 0.52 | 0.00 | 0.46 | -15.54 | 159.82 | -56.55 | 104.05 | 0.8308 | -598.0 | -505.3 | |
| 0.00 | 1.66 | 0.00 | 1.49 | -16.61 | 159.12 | -57.25 | 105.30 | 0.8377 | -583.0 | -479.6 | |
| 0.00 | 1.83 | 0.00 | 1.57 | -10.54 | 161.01 | -55.36 | 97.98 | 0.8190 | 145.0 | 208.0 | |
| 0.00 | 0.96 | 0.00 | 0.82 | -10.42 | 160.99 | -55.38 | 97.83 | 0.8192 | 431.0 | 339.8 | |
| 0.00 | 1.05 | 0.00 | 0.98 | -11.27 | 157.45 | -58.92 | 98.95 | 0.8523 | -479.0 | -397.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
