SDO HMI 2014-03-22 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.54 | 365.49 | 50.58 | 262.78 | -13.57 | 169.05 | -46.77 | 102.12 | 0.7262 | 571.2 | 314.4 | |
|
previous
or next observation for the same group /

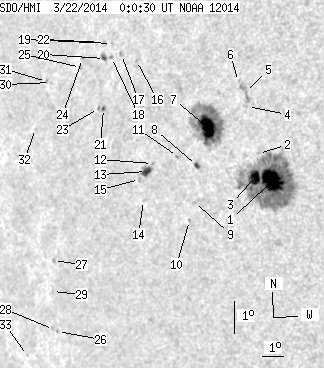

back to the solar disc SDO HMI 2014-03-22 00:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.13 | 213.39 | 21.75 | 149.44 | -14.35 | 170.75 | -45.07 | 103.33 | 0.7072 | 1106.2 | 358.7 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -13.50 | 170.35 | -45.47 | 102.09 | 0.7112 | 328.0 | 300.6 | |
| 11.42 | -1.00 | 8.08 | -1.00 | -14.19 | 170.00 | -45.82 | 103.04 | 0.7160 | 701.5 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -12.06 | 170.21 | -45.61 | 100.06 | 0.7121 | 404.0 | 418.9 | |
| 0.00 | 8.37 | 0.00 | 5.89 | -11.64 | 170.21 | -45.61 | 99.46 | 0.7119 | 735.0 | 617.7 | |
| 0.00 | 0.44 | 0.00 | 0.31 | -11.28 | 169.98 | -45.84 | 98.96 | 0.7146 | 532.0 | 452.8 | |
| 19.45 | 98.54 | 14.15 | 71.69 | -12.53 | 168.31 | -47.51 | 100.61 | 0.7347 | 1035.7 | 378.8 | |
| 1.66 | 2.79 | 1.22 | 2.06 | -13.61 | 167.52 | -48.29 | 102.04 | 0.7443 | 486.9 | 326.2 | |
| 0.00 | 2.53 | 0.00 | 1.88 | -14.70 | 167.12 | -48.70 | 103.47 | 0.7496 | -262.0 | -200.6 | |
| 0.00 | 1.31 | 0.00 | 0.98 | -15.21 | 166.72 | -49.10 | 104.12 | 0.7544 | 488.0 | 388.5 | |
| 0.00 | 1.40 | 0.00 | 1.05 | -13.26 | 166.73 | -49.09 | 101.53 | 0.7530 | -589.0 | -598.8 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -13.36 | 165.51 | -50.31 | 101.60 | 0.7666 | -617.0 | -550.5 | |
| 4.88 | 8.28 | 3.78 | 6.41 | -13.58 | 165.16 | -50.66 | 101.86 | 0.7705 | -808.5 | -596.6 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -14.42 | 164.75 | -51.07 | 102.93 | 0.7753 | -485.0 | -443.1 | |
| 0.00 | 1.57 | 0.00 | 1.22 | -13.78 | 164.75 | -51.07 | 102.10 | 0.7750 | -444.0 | -364.1 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -10.25 | 165.54 | -50.28 | 97.52 | 0.7658 | 486.0 | 391.2 | |
| 0.00 | 1.83 | 0.00 | 1.42 | -10.00 | 164.87 | -50.95 | 97.21 | 0.7732 | 313.0 | 389.7 | |
| 0.00 | 1.40 | 0.00 | 1.10 | -10.05 | 164.37 | -51.45 | 97.28 | 0.7786 | 706.0 | 594.1 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -9.63 | 164.46 | -51.36 | 96.74 | 0.7777 | 492.0 | 435.6 | |
| 1.22 | 3.75 | 0.97 | 2.97 | -10.04 | 164.03 | -51.79 | 97.28 | 0.7823 | 565.6 | 415.9 | |
| 0.78 | 2.09 | 0.63 | 1.67 | -11.52 | 163.62 | -52.20 | 99.17 | 0.7866 | -639.7 | -605.2 | |
| 0.00 | 0.87 | 0.00 | 0.69 | -9.57 | 164.09 | -51.73 | 96.67 | 0.7818 | 455.0 | 317.2 | |
| 0.00 | 1.40 | 0.00 | 1.12 | -11.49 | 163.37 | -52.45 | 99.14 | 0.7892 | -417.0 | -371.9 | |
| 0.00 | 1.57 | 0.00 | 1.27 | -9.94 | 162.95 | -52.87 | 97.17 | 0.7937 | 601.0 | 466.2 | |
| 0.00 | 1.31 | 0.00 | 1.06 | -10.20 | 162.79 | -53.03 | 97.50 | 0.7953 | 498.0 | 402.9 | |
| 0.00 | 0.96 | 0.00 | 0.86 | -17.87 | 158.77 | -57.05 | 106.82 | 0.8365 | -503.0 | -417.2 | |
| 0.00 | 1.57 | 0.00 | 1.38 | -15.75 | 159.52 | -56.30 | 104.31 | 0.8285 | -689.0 | -564.0 | |
| 0.00 | 1.48 | 0.00 | 1.34 | -17.78 | 158.58 | -57.24 | 106.71 | 0.8382 | -427.0 | -455.9 | |
| 0.00 | 0.70 | 0.00 | 0.62 | -16.66 | 159.06 | -56.76 | 105.39 | 0.8332 | -628.0 | -592.1 | |
| 0.00 | 0.87 | 0.00 | 0.74 | -10.49 | 161.16 | -54.66 | 97.90 | 0.8120 | 509.0 | 395.4 | |
| 0.00 | 1.05 | 0.00 | 0.89 | -10.44 | 160.96 | -54.85 | 97.85 | 0.8140 | 245.0 | 223.8 | |
| 0.00 | 0.52 | 0.00 | 0.45 | -11.77 | 159.99 | -55.83 | 99.49 | 0.8234 | 365.0 | 338.3 | |
| 0.00 | 0.78 | 0.00 | 0.75 | -18.40 | 156.69 | -59.13 | 107.32 | 0.8552 | -419.0 | -364.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
