SDO HMI 2014-03-22 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.20 | 372.67 | 49.61 | 259.26 | -13.56 | 169.32 | -44.85 | 102.28 | 0.7036 | 625.1 | 319.8 | |
|
previous
or next observation for the same group /

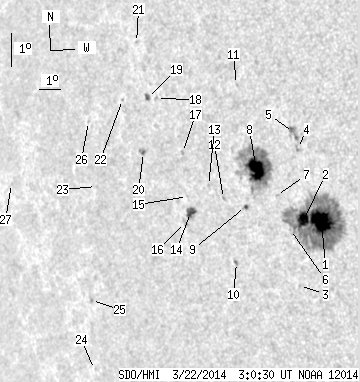

back to the solar disc SDO HMI 2014-03-22 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.23 | 218.47 | 19.86 | 148.80 | -14.34 | 170.82 | -43.35 | 103.52 | 0.6864 | 1139.0 | 366.7 | |
| 11.69 | -1.00 | 8.03 | -1.00 | -14.21 | 170.08 | -44.09 | 103.26 | 0.6953 | 744.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -16.17 | 169.38 | -44.79 | 105.95 | 0.7061 | 523.0 | 391.2 | |
| 0.00 | 2.01 | 0.00 | 1.37 | -12.08 | 170.31 | -43.86 | 100.20 | 0.6908 | 563.0 | 535.6 | |
| 0.00 | 9.16 | 0.00 | 6.26 | -11.59 | 170.24 | -43.93 | 99.48 | 0.6914 | 745.0 | 641.7 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -14.47 | 169.45 | -44.72 | 103.55 | 0.7031 | 265.0 | 236.7 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -13.40 | 169.11 | -45.06 | 102.00 | 0.7063 | -590.0 | -513.3 | |
| 21.90 | 105.66 | 15.44 | 74.55 | -12.56 | 168.43 | -45.74 | 100.76 | 0.7139 | 1052.7 | 338.2 | |
| 1.05 | 2.53 | 0.75 | 1.81 | -13.61 | 167.68 | -46.49 | 102.18 | 0.7234 | 422.6 | 270.5 | |
| 0.00 | 1.92 | 0.00 | 1.40 | -15.24 | 166.82 | -47.35 | 104.34 | 0.7348 | 383.0 | 362.6 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -9.96 | 168.09 | -46.08 | 97.11 | 0.7173 | 587.0 | 417.4 | |
| 0.00 | 1.22 | 0.00 | 0.89 | -13.29 | 166.77 | -47.40 | 101.67 | 0.7338 | -582.0 | -506.8 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -12.85 | 166.20 | -47.97 | 101.03 | 0.7402 | -539.0 | -424.0 | |
| 5.23 | 8.55 | 3.92 | 6.40 | -13.57 | 165.17 | -49.00 | 101.95 | 0.7522 | -798.5 | -563.4 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -13.08 | 165.16 | -49.01 | 101.30 | 0.7521 | -529.0 | -434.0 | |
| 0.00 | 2.70 | 0.00 | 2.04 | -13.85 | 164.85 | -49.32 | 102.29 | 0.7559 | -603.0 | -426.4 | |
| 0.00 | 1.66 | 0.00 | 1.24 | -11.76 | 165.27 | -48.90 | 99.53 | 0.7504 | 552.0 | 399.7 | |
| 0.00 | 1.40 | 0.00 | 1.06 | -10.05 | 164.43 | -49.74 | 97.26 | 0.7597 | 643.0 | 527.6 | |
| 1.40 | 3.23 | 1.07 | 2.47 | -9.98 | 164.02 | -50.15 | 97.18 | 0.7644 | 582.1 | 376.9 | |
| 0.70 | 3.23 | 0.54 | 2.50 | -11.59 | 163.45 | -50.72 | 99.28 | 0.7706 | -796.4 | -561.9 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -8.31 | 163.83 | -50.34 | 94.99 | 0.7670 | 563.0 | 477.6 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -9.93 | 162.83 | -51.34 | 97.13 | 0.7775 | 549.0 | 475.9 | |
| 0.00 | 0.79 | 0.00 | 0.64 | -12.38 | 160.89 | -53.28 | 100.26 | 0.7979 | 199.0 | 172.2 | |
| 0.00 | 0.87 | 0.00 | 0.75 | -17.78 | 158.73 | -55.44 | 106.83 | 0.8215 | -549.0 | -488.3 | |
| 0.00 | 1.48 | 0.00 | 1.26 | -15.72 | 159.47 | -54.71 | 104.36 | 0.8132 | -714.0 | -617.6 | |
| 0.00 | 0.79 | 0.00 | 0.64 | -10.42 | 161.02 | -53.15 | 97.79 | 0.7966 | 305.0 | 263.2 | |
| 0.00 | 0.44 | 0.00 | 0.40 | -11.84 | 156.44 | -57.73 | 99.61 | 0.8414 | -489.0 | -453.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
