SDO HMI 2014-03-22 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.66 | 332.40 | 42.32 | 269.81 | 11.97 | 262.16 | 49.08 | 291.08 | 0.7937 | -655.6 | -288.4 | |
|
previous
or next observation for the same group /

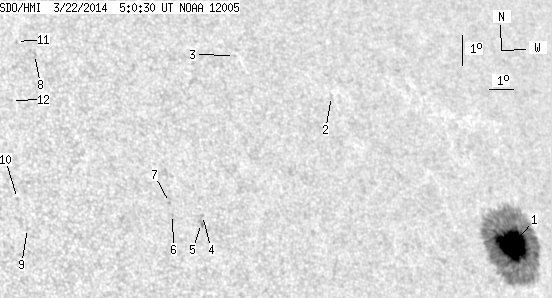

back to the solar disc SDO HMI 2014-03-22 05:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.66 | 318.88 | 42.32 | 261.02 | 11.91 | 262.65 | 49.57 | 290.74 | 0.7987 | -920.9 | -312.9 | |
| 0.00 | 1.48 | 0.00 | 1.10 | 15.97 | 255.63 | 42.56 | 298.92 | 0.7452 | -599.0 | -448.8 | |
| 0.00 | 0.61 | 0.00 | 0.43 | 16.99 | 251.90 | 38.82 | 302.42 | 0.7125 | -495.0 | -426.4 | |
| 0.00 | 1.22 | 0.00 | 0.80 | 11.71 | 249.59 | 36.51 | 297.02 | 0.6563 | 471.0 | 415.2 | |
| 0.00 | 2.27 | 0.00 | 1.48 | 11.45 | 249.51 | 36.43 | 296.72 | 0.6539 | 538.0 | 484.5 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 11.65 | 248.44 | 35.37 | 297.70 | 0.6426 | 621.0 | 520.6 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 12.03 | 248.39 | 35.31 | 298.26 | 0.6442 | 646.0 | 563.9 | |
| 0.00 | 2.27 | 0.00 | 1.44 | 16.46 | 244.15 | 31.07 | 307.60 | 0.6270 | 400.0 | 462.1 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 10.85 | 243.08 | 30.00 | 300.60 | 0.5727 | 646.0 | 463.5 | |
| 0.00 | 1.48 | 0.00 | 0.90 | 11.78 | 242.84 | 29.76 | 302.20 | 0.5765 | 637.0 | 438.5 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 16.85 | 243.56 | 30.49 | 308.63 | 0.6238 | 614.0 | 571.5 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 14.91 | 243.06 | 29.98 | 306.49 | 0.6029 | 538.0 | 514.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
