SDO HMI 2014-03-22 08:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.71 | 383.49 | 51.04 | 254.69 | -13.63 | 169.49 | -41.94 | 102.74 | 0.6679 | 670.2 | 330.8 | |
|
previous
or next observation for the same group /

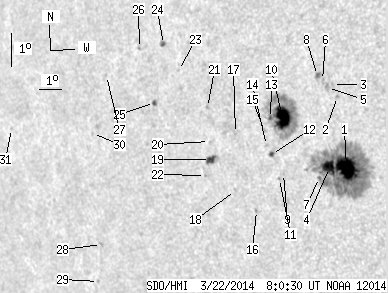

back to the solar disc SDO HMI 2014-03-22 08:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.55 | 236.70 | 21.19 | 154.47 | -14.30 | 170.88 | -40.55 | 103.89 | 0.6513 | 1168.1 | 360.1 | |
| 0.00 | 1.31 | 0.00 | 0.85 | -12.13 | 170.96 | -40.48 | 100.55 | 0.6479 | 825.0 | 670.0 | |
| 0.00 | 1.40 | 0.00 | 0.91 | -11.75 | 170.83 | -40.61 | 99.96 | 0.6493 | 600.0 | 551.4 | |
| 10.82 | -1.00 | 7.12 | -1.00 | -14.22 | 170.21 | -41.23 | 103.66 | 0.6598 | 776.3 | 999999 | |
| 0.00 | 3.23 | 0.00 | 2.10 | -11.83 | 170.61 | -40.82 | 100.06 | 0.6522 | 818.0 | 681.5 | |
| 0.00 | 1.57 | 0.00 | 1.03 | -11.60 | 170.45 | -40.99 | 99.70 | 0.6541 | 670.0 | 595.5 | |
| 0.44 | -1.00 | 0.29 | -1.00 | -14.48 | 169.73 | -41.70 | 103.99 | 0.6661 | 221.0 | 999999 | |
| 0.00 | 3.14 | 0.00 | 2.06 | -11.44 | 170.28 | -41.16 | 99.44 | 0.6562 | 751.0 | 677.2 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -14.24 | 168.28 | -43.16 | 103.44 | 0.6840 | 570.0 | 487.1 | |
| 23.74 | 99.93 | 15.95 | 67.15 | -12.57 | 168.61 | -42.82 | 101.02 | 0.6782 | 1064.4 | 367.1 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -14.38 | 168.08 | -43.36 | 103.61 | 0.6866 | 482.0 | 454.2 | |
| 1.31 | 2.97 | 0.89 | 2.02 | -13.64 | 167.91 | -43.52 | 102.51 | 0.6878 | 525.9 | 325.6 | |
| 0.96 | -10.00 | 0.65 | -10.00 | -12.56 | 168.11 | -43.32 | 100.96 | 0.6845 | 384.2 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.89 | -13.35 | 167.77 | -43.67 | 102.08 | 0.6894 | -11.0 | 60.6 | |
| 0.00 | 1.66 | 0.00 | 1.13 | -12.90 | 167.78 | -43.65 | 101.42 | 0.6888 | 490.0 | 322.1 | |
| 0.00 | 1.22 | 0.00 | 0.85 | -15.25 | 166.86 | -44.58 | 104.70 | 0.7024 | 327.0 | 366.3 | |
| 0.00 | 1.22 | 0.00 | 0.85 | -12.88 | 166.54 | -44.90 | 101.30 | 0.7040 | -516.0 | -489.0 | |
| 0.00 | 1.57 | 0.00 | 1.10 | -14.58 | 166.12 | -45.32 | 103.66 | 0.7105 | -429.0 | -361.7 | |
| 4.54 | 8.55 | 3.23 | 6.07 | -13.56 | 165.27 | -46.16 | 102.16 | 0.7196 | -809.6 | -560.2 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -13.03 | 165.36 | -46.07 | 101.41 | 0.7182 | -611.0 | -524.1 | |
| 0.00 | 1.48 | 0.00 | 1.05 | -12.01 | 165.51 | -45.92 | 100.00 | 0.7159 | 615.0 | 484.4 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -14.02 | 164.93 | -46.50 | 102.76 | 0.7240 | -660.0 | -586.9 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -10.80 | 164.48 | -46.95 | 98.29 | 0.7277 | 548.0 | 396.5 | |
| 1.13 | 2.97 | 0.82 | 2.16 | -9.97 | 163.98 | -47.46 | 97.15 | 0.7337 | 621.5 | 492.7 | |
| 1.22 | 2.27 | 0.90 | 1.67 | -11.65 | 163.21 | -48.23 | 99.43 | 0.7428 | -634.1 | -531.4 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -9.99 | 162.88 | -48.56 | 97.19 | 0.7464 | 600.0 | 548.6 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -10.65 | 161.19 | -50.25 | 98.07 | 0.7654 | 187.0 | 231.0 | |
| 0.00 | 1.66 | 0.00 | 1.32 | -15.63 | 159.48 | -51.95 | 104.45 | 0.7854 | -718.0 | -574.3 | |
| 0.00 | 1.13 | 0.00 | 0.92 | -16.72 | 158.92 | -52.52 | 105.78 | 0.7920 | -547.0 | -463.7 | |
| 0.00 | 0.87 | 0.00 | 0.68 | -12.31 | 160.09 | -51.34 | 100.21 | 0.7775 | 407.0 | 312.7 | |
| 0.00 | 1.13 | 0.00 | 0.97 | -11.77 | 156.07 | -55.36 | 99.50 | 0.8189 | -363.0 | -278.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
