SDO HMI 2014-03-22 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.90 | 400.93 | 47.49 | 257.99 | -13.62 | 169.49 | -39.75 | 103.03 | 0.6399 | 557.5 | 326.2 | |
|
previous
or next observation for the same group /

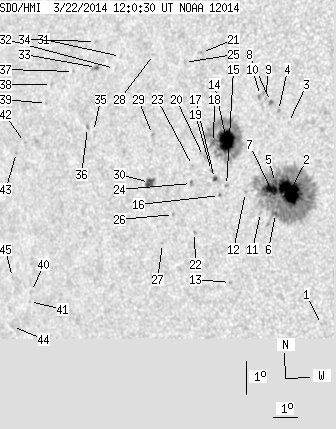

back to the solar disc SDO HMI 2014-03-22 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.50 | -18.39 | 171.26 | -37.99 | 110.86 | 0.6273 | -522.0 | -407.4 | |
| 29.84 | 238.11 | 18.84 | 150.58 | -14.31 | 170.94 | -38.30 | 104.30 | 0.6221 | 1093.2 | 373.7 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -12.24 | 171.29 | -37.96 | 101.03 | 0.6147 | 666.0 | 489.6 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -11.86 | 170.96 | -38.28 | 100.36 | 0.6186 | 808.0 | 712.5 | |
| 2.09 | -2.00 | 1.33 | -2.00 | -14.00 | 170.45 | -38.79 | 103.72 | 0.6281 | 707.9 | 999999 | |
| 0.96 | -2.00 | 0.61 | -2.00 | -14.92 | 170.26 | -38.99 | 105.15 | 0.6321 | 130.6 | 999999 | |
| 8.20 | -2.00 | 5.22 | -2.00 | -14.19 | 170.25 | -38.99 | 104.00 | 0.6310 | 810.0 | 999999 | |
| 0.35 | 1.66 | 0.22 | 1.05 | -11.57 | 170.70 | -38.55 | 99.87 | 0.6219 | 791.2 | 739.3 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -11.46 | 170.52 | -38.72 | 99.68 | 0.6242 | 701.0 | 534.0 | |
| 0.00 | 3.93 | 0.00 | 2.49 | -11.36 | 170.34 | -38.90 | 99.50 | 0.6265 | 622.0 | 578.6 | |
| 0.00 | 1.40 | 0.00 | 0.90 | -14.85 | 169.67 | -39.57 | 104.92 | 0.6396 | -178.0 | -147.4 | |
| 0.00 | 1.31 | 0.00 | 0.85 | -14.20 | 169.21 | -40.04 | 103.84 | 0.6446 | 544.0 | 392.6 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -16.85 | 167.95 | -41.29 | 107.62 | 0.6650 | 473.0 | 366.1 | |
| 24.17 | 105.05 | 15.68 | 68.18 | -12.60 | 168.77 | -40.48 | 101.29 | 0.6483 | 973.1 | 330.2 | |
| 0.00 | 1.83 | 0.00 | 1.20 | -13.94 | 168.49 | -40.75 | 103.32 | 0.6534 | 630.0 | 474.4 | |
| 0.00 | 1.31 | 0.00 | 0.86 | -14.21 | 168.15 | -41.10 | 103.69 | 0.6582 | 457.0 | 350.1 | |
| 1.22 | 2.53 | 0.80 | 1.66 | -13.69 | 168.06 | -41.19 | 102.88 | 0.6587 | 531.6 | 367.2 | |
| 1.66 | -14.00 | 1.08 | -14.00 | -12.61 | 168.24 | -41.01 | 101.26 | 0.6552 | 471.1 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.80 | -13.44 | 167.99 | -41.26 | 102.50 | 0.6593 | 374.0 | 267.4 | |
| 0.00 | 3.32 | 0.00 | 2.18 | -13.00 | 167.75 | -41.49 | 101.80 | 0.6618 | 394.0 | 340.0 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -9.90 | 168.23 | -41.02 | 97.10 | 0.6538 | 662.0 | 567.6 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -15.24 | 166.87 | -42.38 | 105.02 | 0.6757 | 502.0 | 335.7 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -13.23 | 167.25 | -42.00 | 102.09 | 0.6684 | -654.0 | -524.9 | |
| 0.00 | 2.18 | 0.00 | 1.45 | -13.76 | 167.09 | -42.16 | 102.87 | 0.6710 | -534.0 | -481.4 | |
| 0.00 | 1.40 | 0.00 | 0.92 | -10.14 | 167.50 | -41.75 | 97.46 | 0.6633 | 577.0 | 423.2 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -14.63 | 166.13 | -43.12 | 104.02 | 0.6839 | -528.0 | -471.6 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -15.46 | 165.45 | -43.80 | 105.12 | 0.6934 | -681.0 | -554.0 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -9.80 | 166.28 | -42.97 | 96.93 | 0.6789 | 608.0 | 505.7 | |
| 0.00 | 1.13 | 0.00 | 0.77 | -12.17 | 165.80 | -43.45 | 100.40 | 0.6858 | 534.0 | 397.5 | |
| 4.71 | 6.89 | 3.22 | 4.72 | -13.59 | 165.36 | -43.89 | 102.42 | 0.6923 | -785.5 | -568.7 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -9.75 | 164.90 | -44.35 | 96.84 | 0.6962 | 600.0 | 528.7 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -10.08 | 164.58 | -44.66 | 97.32 | 0.7001 | 498.0 | 531.4 | |
| 0.70 | 3.14 | 0.49 | 2.20 | -9.99 | 163.83 | -45.42 | 97.18 | 0.7094 | 700.1 | 425.1 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -9.21 | 163.92 | -45.33 | 96.08 | 0.7083 | 495.0 | 418.8 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -11.87 | 163.32 | -45.93 | 99.82 | 0.7159 | -606.0 | -519.0 | |
| 0.00 | 1.40 | 0.00 | 0.99 | -11.73 | 163.08 | -46.16 | 99.62 | 0.7186 | -540.0 | -490.6 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -10.02 | 162.81 | -46.43 | 97.22 | 0.7216 | 608.0 | 532.6 | |
| 0.00 | 1.57 | 0.00 | 1.14 | -10.32 | 161.77 | -47.47 | 97.64 | 0.7339 | 437.0 | 354.8 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -10.86 | 161.43 | -47.81 | 98.37 | 0.7379 | 441.0 | 416.4 | |
| 0.00 | 1.48 | 0.00 | 1.14 | -16.38 | 159.17 | -50.07 | 105.59 | 0.7662 | -652.0 | -514.7 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -16.67 | 158.97 | -50.28 | 105.94 | 0.7686 | -507.0 | -443.1 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -11.93 | 160.17 | -49.07 | 99.78 | 0.7525 | 473.0 | 359.3 | |
| 0.00 | 1.13 | 0.00 | 0.86 | -12.19 | 159.73 | -49.52 | 100.12 | 0.7575 | -550.0 | -520.0 | |
| 0.00 | 1.13 | 0.00 | 0.90 | -17.33 | 157.87 | -51.37 | 106.69 | 0.7808 | -289.0 | -276.7 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -15.88 | 158.42 | -50.83 | 104.87 | 0.7738 | -274.0 | -344.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
