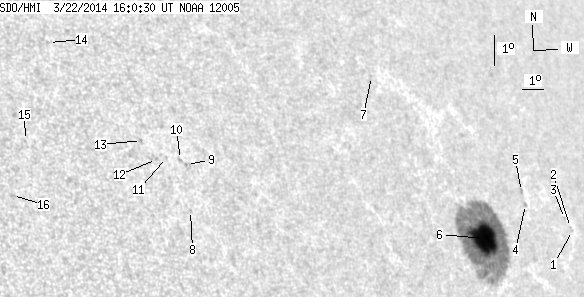

SDO HMI 2014-03-22 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.18 | 291.90 | 44.73 | 274.52 | 11.93 | 262.44 | 55.39 | 288.75 | 0.8517 | -575.9 | -244.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-22 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.88 | 12.70 | 268.21 | 61.16 | 287.85 | 0.8996 | -324.0 | -247.3 | |
| 0.00 | 0.70 | 0.00 | 0.78 | 12.78 | 268.11 | 61.07 | 287.97 | 0.8991 | -374.0 | -335.0 | |
| 0.00 | 1.13 | 0.00 | 1.26 | 13.04 | 267.84 | 60.79 | 288.32 | 0.8976 | -312.0 | -316.8 | |
| 0.00 | 1.57 | 0.00 | 1.63 | 13.23 | 265.53 | 58.48 | 289.19 | 0.8806 | 447.0 | 307.3 | |
| 0.00 | 1.57 | 0.00 | 1.63 | 13.63 | 265.45 | 58.40 | 289.65 | 0.8809 | 342.0 | 298.7 | |
| 47.18 | 276.21 | 44.73 | 261.34 | 11.87 | 262.73 | 55.68 | 288.54 | 0.8546 | -875.2 | -273.6 | |
| 0.00 | 0.61 | 0.00 | 0.54 | 16.58 | 258.46 | 51.42 | 295.39 | 0.8315 | -491.0 | -424.1 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 11.46 | 248.92 | 41.87 | 293.58 | 0.7162 | 611.0 | 505.2 | |
| 0.00 | 1.13 | 0.00 | 0.81 | 12.91 | 249.04 | 42.00 | 295.40 | 0.7243 | 697.0 | 594.9 | |
| 0.00 | 1.48 | 0.00 | 1.06 | 13.05 | 248.82 | 41.78 | 295.69 | 0.7226 | 601.0 | 431.1 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 13.07 | 248.25 | 41.21 | 296.02 | 0.7164 | 601.0 | 549.2 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 12.97 | 247.83 | 40.78 | 296.13 | 0.7113 | 533.0 | 499.8 | |
| 0.00 | 1.05 | 0.00 | 0.73 | 13.53 | 247.33 | 40.29 | 297.13 | 0.7087 | 602.0 | 469.3 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 16.43 | 244.26 | 37.22 | 302.76 | 0.6922 | 595.0 | 443.6 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 13.18 | 242.73 | 35.69 | 299.56 | 0.6553 | 581.0 | 511.0 | |
| 0.00 | 1.57 | 0.00 | 1.00 | 11.39 | 241.97 | 34.92 | 297.61 | 0.6355 | 640.0 | 531.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
