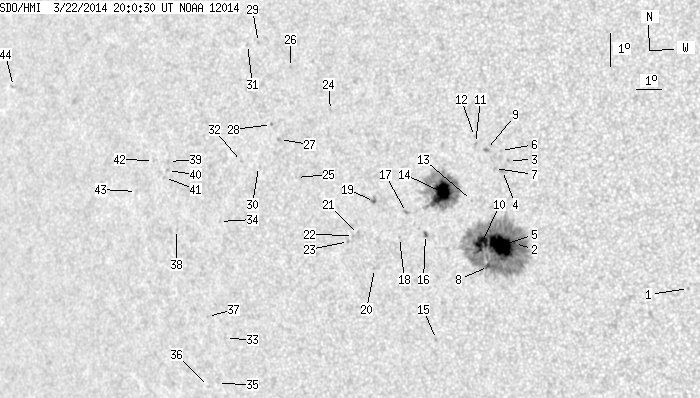

SDO HMI 2014-03-22 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.28 | 435.44 | 43.58 | 264.48 | -13.64 | 169.63 | -35.21 | 103.94 | 0.5789 | 618.0 | 351.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-22 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.59 | -16.03 | 177.52 | -27.32 | 111.13 | 0.4749 | -632.0 | -508.2 | |
| 1.22 | 280.73 | 0.73 | 168.05 | -14.30 | 171.54 | -33.30 | 105.44 | 0.5540 | 1387.0 | 385.0 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -11.81 | 171.71 | -33.13 | 100.97 | 0.5471 | 792.0 | 684.4 | |
| 0.00 | 1.92 | 0.00 | 1.14 | -12.09 | 171.45 | -33.39 | 101.44 | 0.5512 | 766.0 | 678.2 | |
| 30.87 | -2.00 | 18.44 | -2.00 | -14.33 | 171.02 | -33.82 | 105.35 | 0.5614 | 1293.2 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -11.49 | 171.46 | -33.38 | 100.35 | 0.5502 | 727.0 | 620.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -12.01 | 171.17 | -33.67 | 101.25 | 0.5551 | 852.0 | 675.6 | |
| 1.74 | -2.00 | 1.05 | -2.00 | -14.93 | 170.47 | -34.37 | 106.24 | 0.5704 | 333.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.35 | -11.43 | 170.95 | -33.89 | 100.16 | 0.5574 | 884.0 | 813.8 | |
| 12.47 | -2.00 | 7.51 | -2.00 | -14.22 | 170.33 | -34.51 | 104.98 | 0.5707 | 869.4 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -11.22 | 170.58 | -34.26 | 99.74 | 0.5625 | 715.0 | 570.2 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -11.01 | 170.57 | -34.27 | 99.36 | 0.5624 | 609.0 | 473.8 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -12.91 | 170.18 | -34.66 | 102.66 | 0.5704 | -576.0 | -442.6 | |
| 24.24 | 107.10 | 14.77 | 65.29 | -12.60 | 169.14 | -35.70 | 101.93 | 0.5843 | 1143.8 | 417.8 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -16.98 | 168.05 | -36.79 | 108.98 | 0.6080 | 450.0 | 413.0 | |
| 0.96 | 2.35 | 0.59 | 1.45 | -13.80 | 168.28 | -36.56 | 103.81 | 0.5979 | 548.7 | 391.1 | |
| 0.00 | 2.18 | 0.00 | 1.35 | -13.10 | 167.68 | -37.16 | 102.53 | 0.6049 | 643.0 | 544.1 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -13.82 | 167.27 | -37.57 | 103.65 | 0.6115 | -643.0 | -557.5 | |
| 0.78 | 3.31 | 0.49 | 2.09 | -12.68 | 166.51 | -38.33 | 101.67 | 0.6201 | 626.3 | 491.0 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -14.68 | 166.12 | -38.72 | 104.81 | 0.6282 | -688.0 | -568.1 | |
| 0.00 | 2.44 | 0.00 | 1.56 | -13.61 | 165.70 | -39.14 | 103.05 | 0.6320 | -213.0 | -336.5 | |
| 0.00 | 1.48 | 0.00 | 0.95 | -13.63 | 165.50 | -39.34 | 103.04 | 0.6347 | -789.0 | -667.6 | |
| 0.00 | 1.40 | 0.00 | 0.90 | -13.79 | 165.27 | -39.57 | 103.26 | 0.6379 | -681.0 | -567.3 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -9.84 | 165.25 | -39.59 | 97.04 | 0.6350 | 553.0 | 477.4 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -11.73 | 163.57 | -41.27 | 99.88 | 0.6578 | -506.0 | -531.4 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -8.44 | 163.85 | -40.99 | 94.85 | 0.6535 | 631.0 | 535.5 | |
| 0.00 | 1.57 | 0.00 | 1.04 | -10.54 | 163.09 | -41.75 | 98.05 | 0.6635 | 516.0 | 497.1 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -10.07 | 162.84 | -42.00 | 97.33 | 0.6666 | 677.0 | 579.5 | |
| 0.00 | 1.13 | 0.00 | 0.75 | -7.59 | 162.66 | -42.18 | 93.61 | 0.6692 | 577.0 | 481.7 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -11.27 | 162.09 | -42.75 | 99.11 | 0.6765 | 442.0 | 416.1 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -7.61 | 162.21 | -42.63 | 93.67 | 0.6750 | 546.0 | 477.6 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -11.07 | 161.42 | -43.42 | 98.77 | 0.6849 | 426.0 | 349.0 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -16.28 | 159.47 | -45.37 | 106.04 | 0.7131 | -551.0 | -455.2 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -12.77 | 160.13 | -44.71 | 101.16 | 0.7017 | -545.0 | -440.0 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -17.59 | 158.70 | -46.14 | 107.74 | 0.7240 | -560.0 | -464.3 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -17.65 | 158.27 | -46.57 | 107.75 | 0.7290 | -484.0 | -404.7 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -15.55 | 158.88 | -45.96 | 104.95 | 0.7191 | -481.0 | -377.4 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -12.85 | 158.22 | -46.62 | 101.14 | 0.7246 | -564.0 | -455.5 | |
| 0.00 | 1.40 | 0.00 | 1.00 | -10.80 | 158.32 | -46.52 | 98.30 | 0.7227 | -545.0 | -523.8 | |
| 0.00 | 1.31 | 0.00 | 0.94 | -11.07 | 158.22 | -46.62 | 98.67 | 0.7239 | -726.0 | -606.1 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -11.26 | 158.04 | -46.80 | 98.93 | 0.7260 | -638.0 | -549.3 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -10.71 | 157.67 | -47.17 | 98.17 | 0.7303 | -593.0 | -469.3 | |
| 0.00 | 1.13 | 0.00 | 0.83 | -11.57 | 156.71 | -48.13 | 99.32 | 0.7416 | -432.0 | -289.3 | |
| 0.00 | 2.09 | 0.00 | 1.71 | -7.91 | 151.56 | -53.28 | 94.67 | 0.7988 | 570.0 | 451.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
