SDO HMI 2014-03-22 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.02 | 425.17 | 38.30 | 256.14 | -13.69 | 169.72 | -34.57 | 104.13 | 0.5702 | 616.5 | 373.9 | |
|
previous
or next observation for the same group /

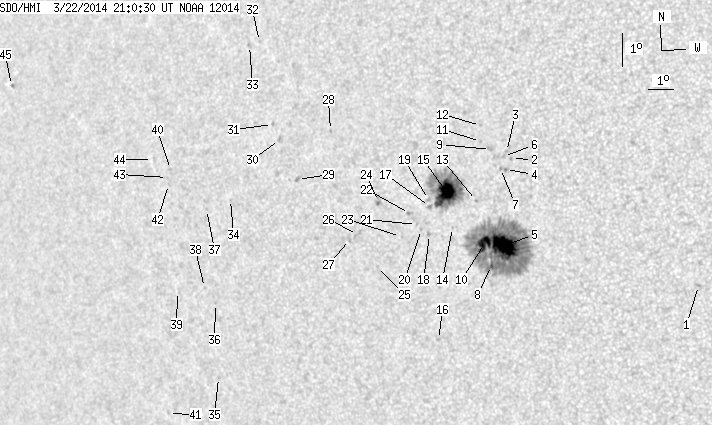

back to the solar disc SDO HMI 2014-03-22 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.02 | -15.95 | 177.75 | -26.54 | 111.40 | 0.4634 | -827.0 | -599.5 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -11.75 | 171.71 | -32.58 | 100.96 | 0.5391 | 793.0 | 674.9 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -11.53 | 171.56 | -32.73 | 100.53 | 0.5410 | 730.0 | 636.3 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -12.07 | 171.45 | -32.84 | 101.49 | 0.5433 | 891.0 | 748.1 | |
| 29.13 | 274.39 | 17.30 | 163.22 | -14.33 | 171.02 | -33.26 | 105.51 | 0.5536 | 1282.3 | 410.6 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -11.67 | 171.43 | -32.86 | 100.77 | 0.5430 | 788.0 | 618.0 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -12.03 | 171.27 | -33.02 | 101.38 | 0.5457 | 728.0 | 666.9 | |
| 1.48 | -5.00 | 0.89 | -5.00 | -14.90 | 170.48 | -33.81 | 106.36 | 0.5626 | 277.5 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.39 | -11.43 | 170.99 | -33.30 | 100.26 | 0.5490 | 914.0 | 733.9 | |
| 12.91 | -5.00 | 7.72 | -5.00 | -14.23 | 170.34 | -33.95 | 105.13 | 0.5630 | 859.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -11.17 | 170.66 | -33.63 | 99.73 | 0.5534 | 684.0 | 530.9 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -10.70 | 170.72 | -33.57 | 98.88 | 0.5521 | 703.0 | 537.9 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -12.92 | 170.26 | -34.03 | 102.80 | 0.5616 | -508.0 | -413.0 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -13.67 | 169.24 | -35.05 | 103.89 | 0.5771 | -639.0 | -503.0 | |
| 20.50 | 95.24 | 12.39 | 57.60 | -12.58 | 169.19 | -35.10 | 102.00 | 0.5759 | 1208.0 | 466.3 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -16.99 | 168.04 | -36.25 | 109.16 | 0.6009 | 709.0 | 500.8 | |
| 0.00 | 2.27 | 0.00 | 1.38 | -12.98 | 168.49 | -35.80 | 102.57 | 0.5862 | 602.0 | 445.3 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -13.82 | 168.34 | -35.95 | 103.96 | 0.5896 | 715.0 | 539.6 | |
| 0.00 | 2.27 | 0.00 | 1.38 | -12.77 | 168.48 | -35.80 | 102.21 | 0.5860 | 444.0 | 365.5 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -13.65 | 168.07 | -36.22 | 103.61 | 0.5931 | 346.0 | 292.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -13.48 | 167.90 | -36.38 | 103.31 | 0.5950 | 387.0 | 285.3 | |
| 0.00 | 2.35 | 0.00 | 1.45 | -13.14 | 167.70 | -36.59 | 102.69 | 0.5973 | 673.0 | 547.6 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -13.80 | 167.23 | -37.06 | 103.71 | 0.6046 | -567.0 | -564.0 | |
| 0.00 | 3.23 | 0.00 | 2.02 | -12.69 | 166.58 | -37.71 | 101.78 | 0.6118 | 874.0 | 544.4 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -14.63 | 166.17 | -38.12 | 104.85 | 0.6202 | -576.0 | -462.7 | |
| 0.00 | 3.66 | 0.00 | 2.32 | -13.62 | 165.59 | -38.70 | 103.12 | 0.6263 | -755.0 | -618.2 | |
| 0.00 | 2.35 | 0.00 | 1.50 | -13.74 | 165.24 | -39.04 | 103.27 | 0.6309 | -439.0 | -345.1 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -10.44 | 165.08 | -39.21 | 98.00 | 0.6301 | 593.0 | 449.8 | |
| 0.00 | 2.18 | 0.00 | 1.42 | -11.80 | 163.54 | -40.75 | 100.02 | 0.6512 | -767.0 | -618.5 | |
| 0.00 | 2.09 | 0.00 | 1.37 | -10.55 | 163.02 | -41.26 | 98.08 | 0.6572 | 774.0 | 592.3 | |
| 0.00 | 1.40 | 0.00 | 0.92 | -10.08 | 162.82 | -41.47 | 97.36 | 0.6598 | 649.0 | 487.4 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -7.57 | 162.64 | -41.65 | 93.56 | 0.6624 | 658.0 | 548.9 | |
| 0.00 | 2.09 | 0.00 | 1.39 | -7.66 | 162.22 | -42.06 | 93.71 | 0.6677 | 603.0 | 435.5 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -12.17 | 160.69 | -43.60 | 100.37 | 0.6876 | 444.0 | 391.1 | |
| 0.00 | 1.13 | 0.00 | 0.80 | -17.43 | 158.78 | -45.50 | 107.63 | 0.7164 | -610.0 | -454.8 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -15.21 | 159.31 | -44.97 | 104.60 | 0.7071 | -610.0 | -530.2 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -12.38 | 159.62 | -44.67 | 100.61 | 0.7009 | -727.0 | -565.3 | |
| 0.00 | 1.22 | 0.00 | 0.86 | -14.69 | 158.97 | -45.32 | 103.83 | 0.7106 | -536.0 | -400.2 | |
| 0.00 | 0.44 | 0.00 | 0.31 | -14.71 | 157.76 | -46.53 | 103.72 | 0.7248 | -370.0 | -396.2 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -11.06 | 158.33 | -45.95 | 98.68 | 0.7159 | -656.0 | -565.8 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -18.32 | 156.17 | -48.11 | 108.39 | 0.7471 | -536.0 | -358.9 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -11.50 | 158.15 | -46.13 | 99.29 | 0.7182 | -546.0 | -511.6 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -11.29 | 158.15 | -46.13 | 98.99 | 0.7181 | -378.0 | -438.1 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -10.70 | 157.61 | -46.68 | 98.16 | 0.7245 | -346.0 | -404.3 | |
| 0.00 | 0.78 | 0.00 | 0.64 | -7.90 | 151.52 | -52.77 | 94.62 | 0.7935 | 554.0 | 563.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
