SDO HMI 2014-03-22 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.32 | 440.81 | 41.61 | 262.86 | -13.63 | 169.59 | -33.59 | 104.30 | 0.5564 | 646.4 | 358.8 | |
|
previous
or next observation for the same group /

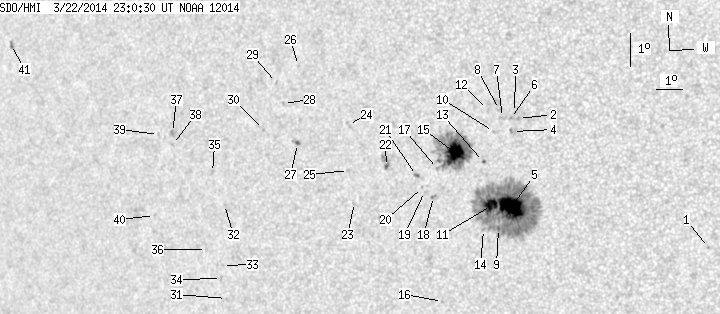

back to the solar disc SDO HMI 2014-03-22 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.53 | -15.96 | 177.81 | -25.37 | 112.12 | 0.4466 | -732.0 | -599.9 | |
| 0.00 | 1.83 | 0.00 | 1.06 | -11.71 | 171.72 | -31.46 | 101.08 | 0.5228 | 816.0 | 653.8 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -11.52 | 171.60 | -31.58 | 100.70 | 0.5243 | 640.0 | 573.6 | |
| 0.00 | 2.27 | 0.00 | 1.32 | -12.08 | 171.46 | -31.73 | 101.74 | 0.5273 | 676.0 | 679.5 | |
| 31.84 | 276.29 | 18.67 | 162.31 | -14.32 | 171.09 | -32.09 | 105.83 | 0.5372 | 1256.8 | 409.5 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -11.69 | 171.44 | -31.75 | 100.99 | 0.5270 | 746.0 | 623.1 | |
| 0.00 | 2.62 | 0.00 | 1.53 | -11.64 | 171.16 | -32.03 | 100.85 | 0.5310 | 696.0 | 623.1 | |
| 0.00 | 1.92 | 0.00 | 1.12 | -11.40 | 171.08 | -32.10 | 100.37 | 0.5317 | 894.0 | 644.1 | |
| 0.70 | -5.00 | 0.41 | -5.00 | -14.95 | 170.51 | -32.67 | 106.80 | 0.5470 | 294.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -12.04 | 170.78 | -32.41 | 101.52 | 0.5370 | 585.0 | 522.1 | |
| 11.08 | -5.00 | 6.55 | -5.00 | -14.25 | 170.37 | -32.81 | 105.48 | 0.5471 | 899.3 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -11.37 | 170.65 | -32.53 | 100.25 | 0.5379 | 645.0 | 580.3 | |
| 0.35 | 1.22 | 0.21 | 0.72 | -12.91 | 170.29 | -32.89 | 103.03 | 0.5455 | -513.8 | -466.8 | |
| 0.00 | 1.48 | 0.00 | 0.88 | -14.95 | 169.96 | -33.23 | 106.61 | 0.5546 | -147.0 | -108.4 | |
| 24.69 | 102.16 | 14.72 | 60.97 | -12.61 | 169.31 | -33.88 | 102.27 | 0.5589 | 1137.9 | 417.5 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -17.01 | 168.01 | -35.18 | 109.54 | 0.5868 | 551.0 | 516.4 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -13.01 | 168.58 | -34.61 | 102.84 | 0.5698 | 611.0 | 522.5 | |
| 0.00 | 1.83 | 0.00 | 1.11 | -13.83 | 168.29 | -34.90 | 104.21 | 0.5753 | 647.0 | 546.3 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -13.66 | 167.98 | -35.21 | 103.85 | 0.5792 | 359.0 | 300.9 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -13.54 | 167.92 | -35.26 | 103.62 | 0.5797 | 187.0 | 197.8 | |
| 0.00 | 2.53 | 0.00 | 1.54 | -13.16 | 167.76 | -35.42 | 102.95 | 0.5813 | 723.0 | 561.1 | |
| 0.70 | 7.15 | 0.43 | 4.40 | -12.81 | 166.68 | -36.50 | 102.17 | 0.5956 | 717.1 | 530.9 | |
| 0.00 | 1.13 | 0.00 | 0.71 | -13.80 | 165.27 | -37.92 | 103.55 | 0.6162 | -115.0 | -307.5 | |
| 0.00 | 3.05 | 0.00 | 1.91 | -11.46 | 165.45 | -37.74 | 99.75 | 0.6109 | -553.0 | -433.2 | |
| 0.00 | 1.57 | 0.00 | 0.98 | -12.83 | 165.21 | -37.97 | 101.96 | 0.6155 | -224.0 | -335.4 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -9.56 | 163.78 | -39.40 | 96.59 | 0.6324 | 661.0 | 559.0 | |
| 0.96 | 3.66 | 0.62 | 2.36 | -11.87 | 163.37 | -39.81 | 100.22 | 0.6390 | -747.7 | -564.0 | |
| 0.00 | 1.57 | 0.00 | 1.01 | -10.64 | 163.02 | -40.16 | 98.27 | 0.6428 | 703.0 | 529.8 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -9.99 | 162.85 | -40.34 | 97.26 | 0.6449 | 502.0 | 449.3 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -11.35 | 162.10 | -41.08 | 99.32 | 0.6552 | 555.0 | 407.4 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -16.27 | 159.43 | -43.75 | 106.28 | 0.6939 | -660.0 | -469.4 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -13.45 | 160.06 | -43.12 | 102.29 | 0.6827 | -650.0 | -483.7 | |
| 0.00 | 0.96 | 0.00 | 0.66 | -15.27 | 159.53 | -43.65 | 104.86 | 0.6913 | -646.0 | -519.5 | |
| 0.00 | 1.92 | 0.00 | 1.32 | -15.65 | 159.39 | -43.80 | 105.39 | 0.6936 | -621.0 | -561.6 | |
| 0.00 | 1.74 | 0.00 | 1.18 | -12.46 | 159.77 | -43.41 | 100.81 | 0.6855 | -126.0 | -166.7 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -14.73 | 158.98 | -44.20 | 104.01 | 0.6973 | -475.0 | -455.5 | |
| 0.00 | 4.19 | 0.00 | 2.90 | -11.13 | 158.34 | -44.85 | 98.81 | 0.7025 | -737.0 | -523.2 | |
| 0.00 | 1.13 | 0.00 | 0.79 | -11.49 | 158.27 | -44.92 | 99.31 | 0.7035 | -733.0 | -668.7 | |
| 0.00 | 1.22 | 0.00 | 0.86 | -11.14 | 157.73 | -45.45 | 98.80 | 0.7099 | -463.0 | -360.3 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -13.53 | 157.01 | -46.18 | 102.11 | 0.7197 | -532.0 | -454.4 | |
| 0.00 | 2.79 | 0.00 | 2.20 | -7.87 | 151.59 | -51.59 | 94.51 | 0.7809 | 572.0 | 479.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
